Cisco TelePresence IX5000

24
IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
Replacing a Display—Part Number CTS-5K-70-G1=

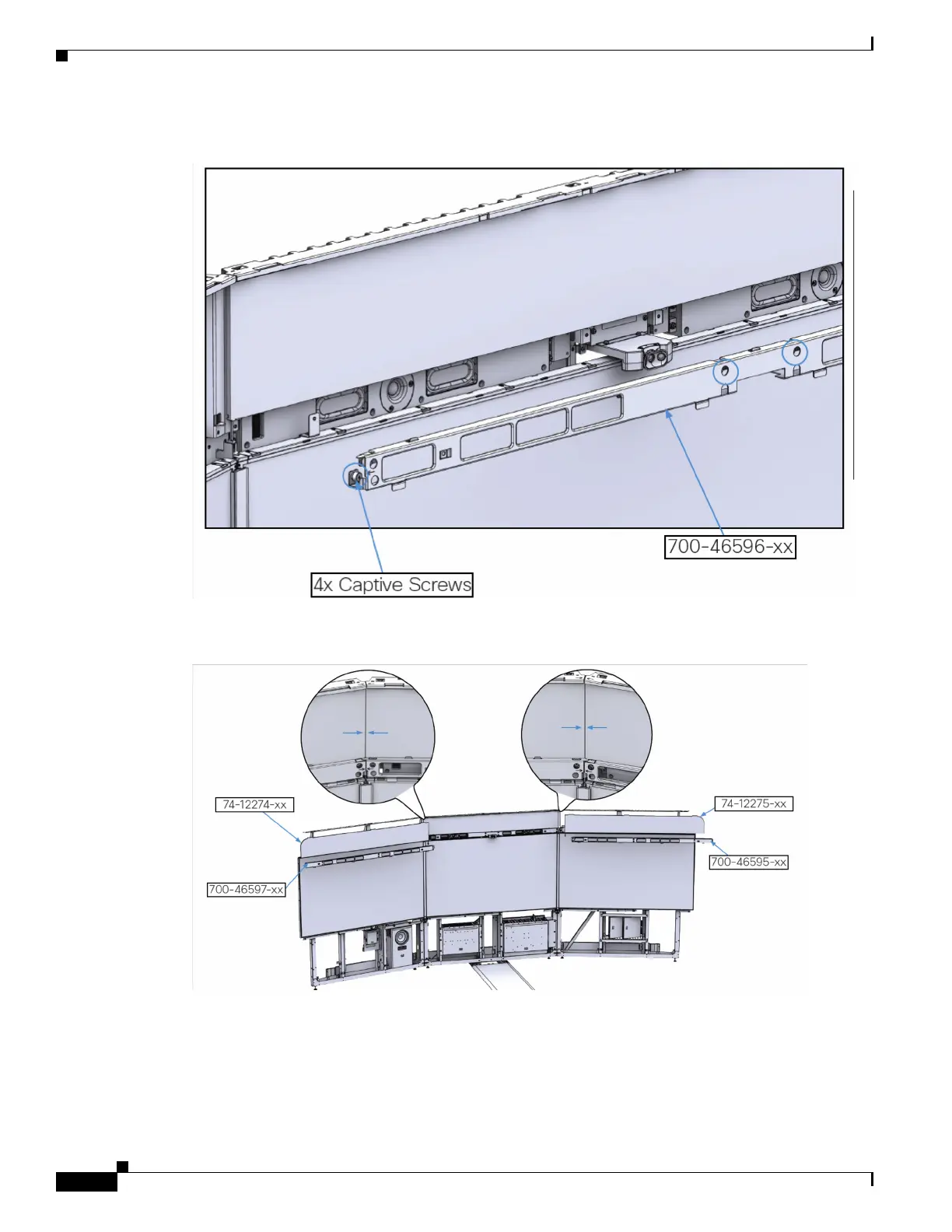

Step 10 Remove the right or left speaker cover. Remove the four captive screws, and two recessed screws.
Step 11 Disconnect the pigtail connector on the side of the light panel and remove the light panel above the
display to be removed.
