IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
Replacing a Display—Part Number CTS-5K-70-G1=

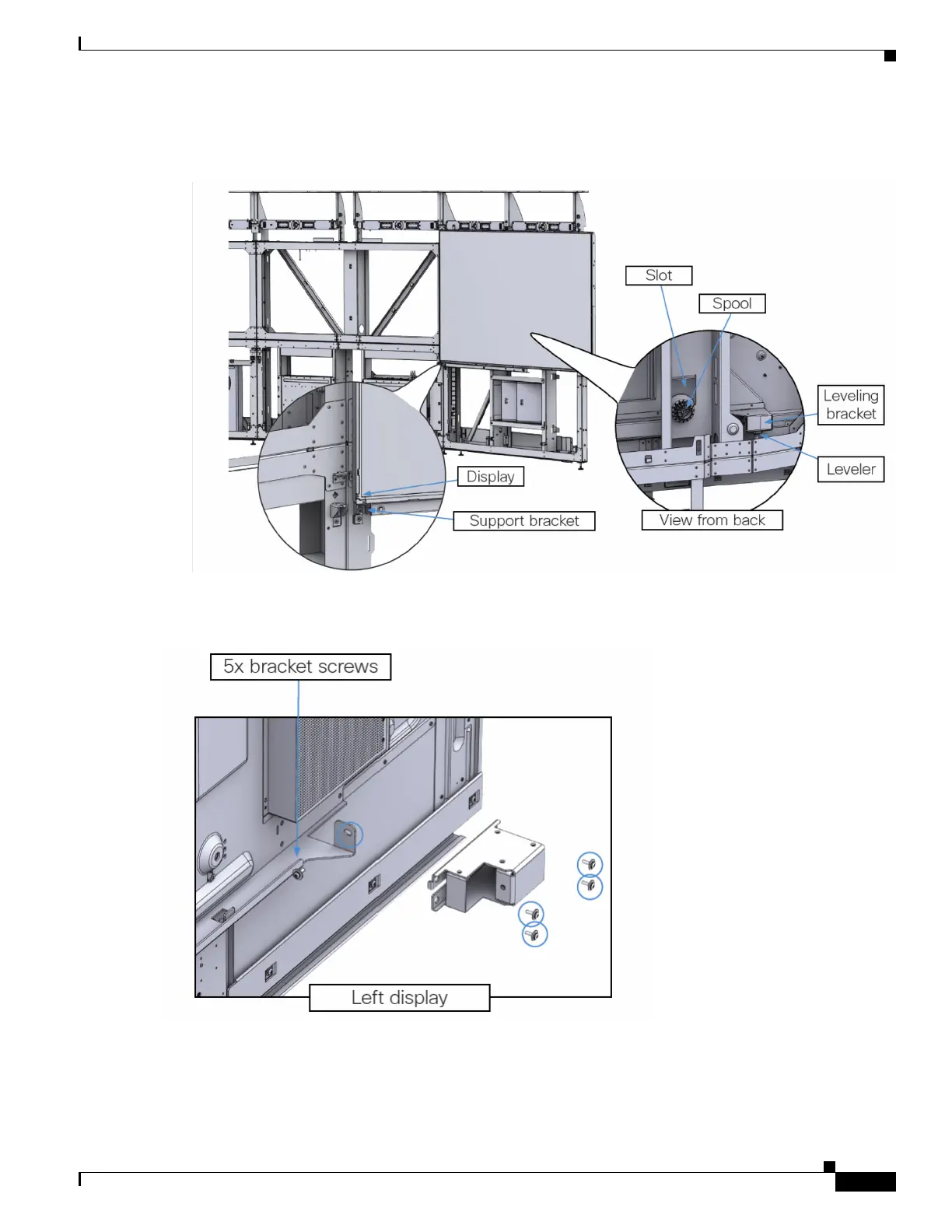

Step 14 Using two people, remove the display so that it lifts clear of the display shelf and the spool goes through
the cutout slot in the rear of the endpoint structure.
Step 15 Prepare the new display for installation by installing the leveler bracket and stud, washer, and spool. You
can reuse the old bracket, or use the one that is included with the new display.
