34
IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
Replacing a Display—Part Number CTS-5K-70-G1=

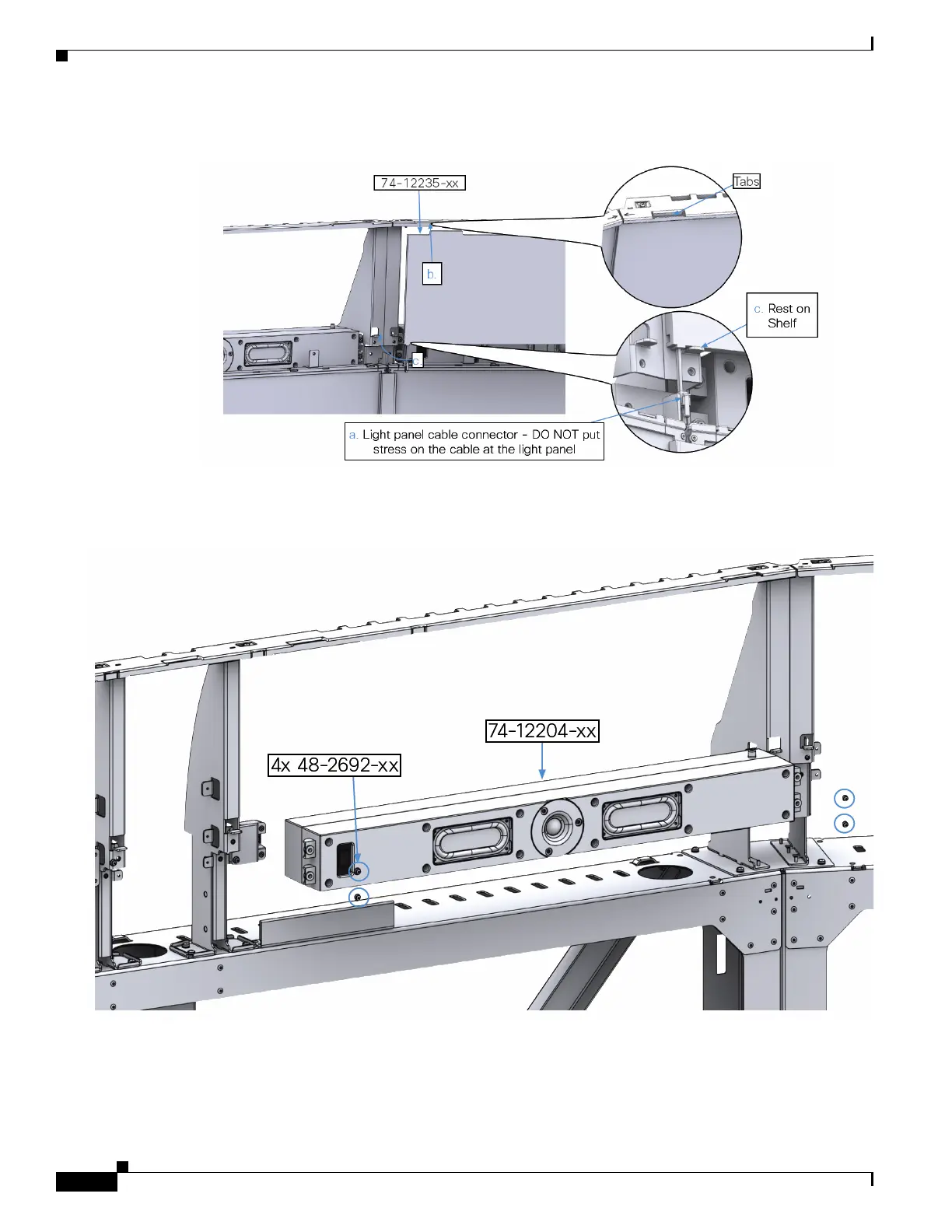

Step 10 Disconnect the pigtail connector on the side of the light panel and remove the center light panel.
Step 11 Remove the camera by unscrewing the four captive screws that connect it to the endpoint structure.
Step 12 Remove the center speakers (four screws per speaker).
