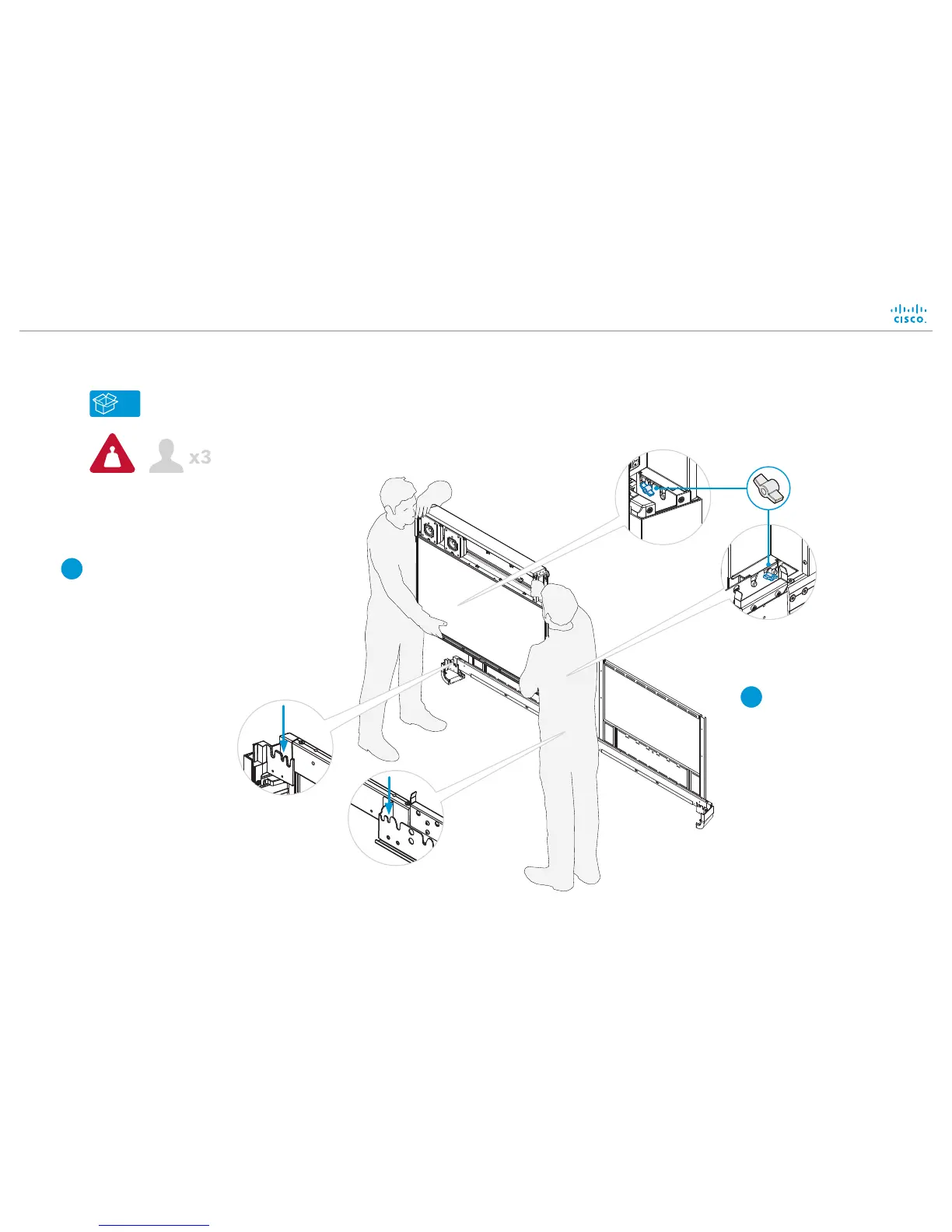

Lift and place left monitor onto lower frame
D
78-100254-03A0 | 2016 JUNE | © 2016 Cisco Systems, Inc. All rights reserved.
Page 13
65 kg / 144 lb
Rear view
Rear view
Front view
Front view
Keep the monitor close to the wall so the
clamps on the rear side of the monitor
slide fully onto the top wall bracket.
Make sure that the screw with wing nut
enters the center slot on both sides.
Do not let go of the monitor before it is
securely placed on the lower frame.
1
Tighten the wing nuts
on both sides. They are
accessed from the sides
of the monitor.
