D15126.01 MX800 Spare parts, JULY 2014. www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
14
Cisco TelePresence MX800 Spare parts
CAB-MX800-L-SPKR= CAB-MX800-R-SPKR=
HDMI
COLOR
CALIBRATION
12
CAMERA
POWER
HDMI
COLOR
CALIBRA
TION
12
CAMERA
POWER

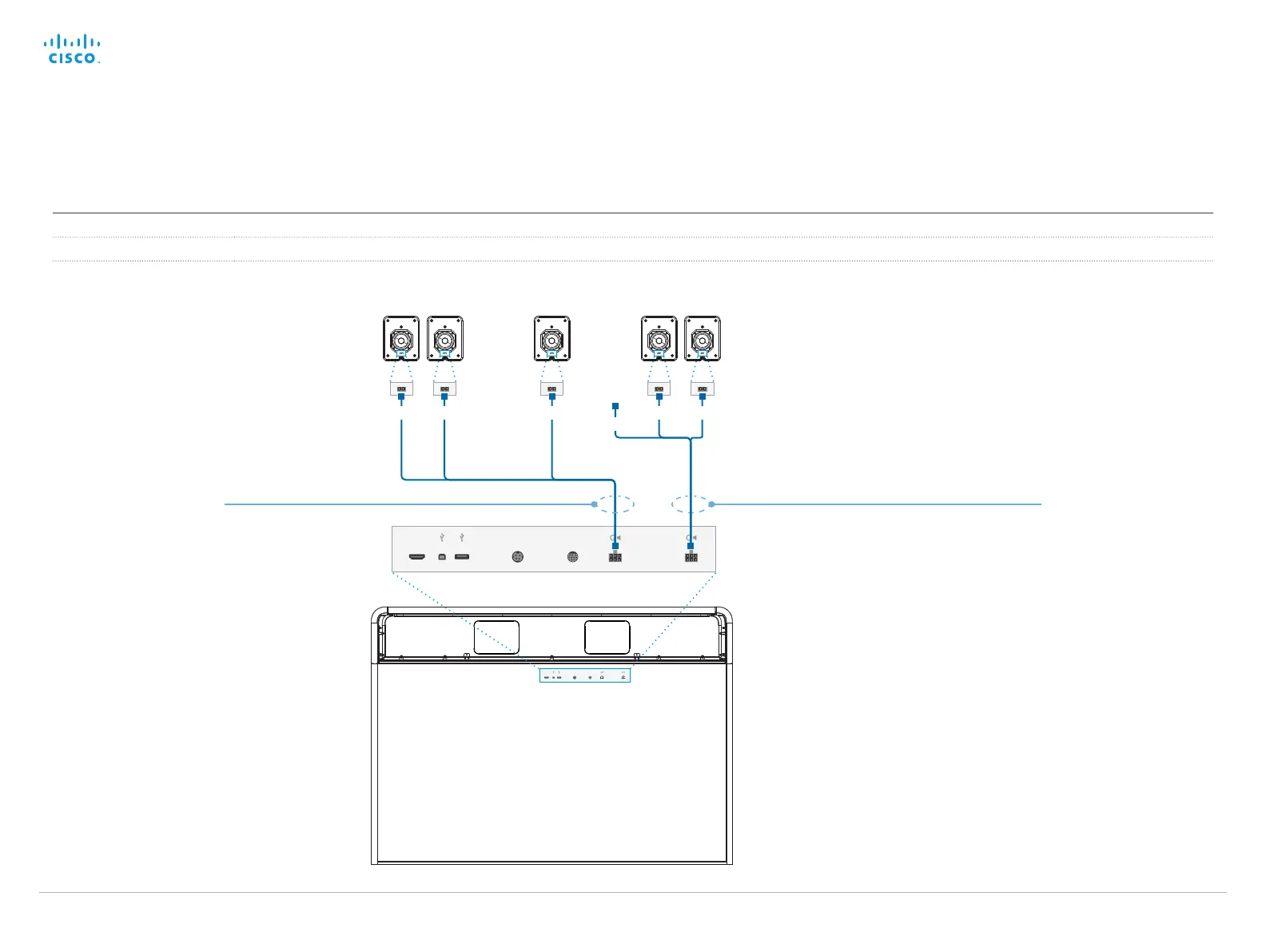

Loudspeaker cables for MX800 with dual camera
Part number Part description ID printed on cable
CAB-MX800-L-SPKR= Cable assembly for the left loudspeakers. The individual cables are numbered from 1 to 3 72-100632-xx
CAB-MX800-R-SPKR= Cable assembly for the right loudspeakers. The individual cables are numbered from 4 to 6 72-10 0 6 3 3-x x
1 2 3 5 6
(not used)
4
