Cisco Telepresence MX800 Spare Parts

D15126.01 MX800 Spare parts, JULY 2014. www.cisco.com — Copyright © 2014 Cisco Systems, Inc. All rights reserved.
17
Cisco TelePresence MX800 Spare parts
3
DAISY
CHAIN
VISCA
3
DAISY
CHAIN
VISCA
2
1
2
1
2
1
2
1
3
DAISY
CHAIN
VISCA
3
DAISY
CHAIN
VISCA
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
C A B -2 D C - B R L- 0 . 6 M =
C A B -2 D C - B R L-1 .1 5 M =
CAB-ETHRJ45-0.7M=
CAB-ETHRJ45-1.2M=
CAB-MIC-RJ.5-1.0M=
CAB-MIC-RJ.5-0.5M=

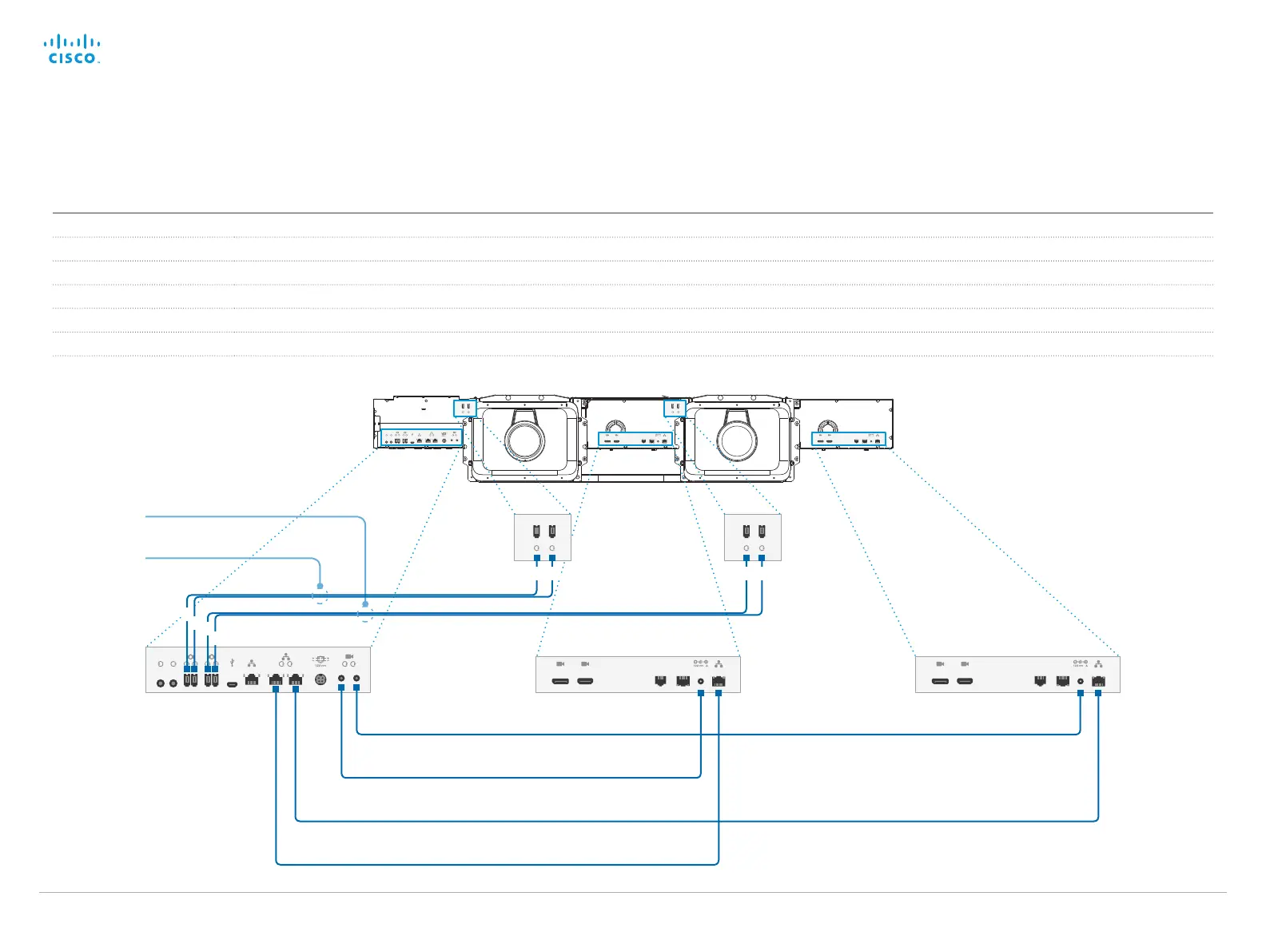

Cables internal to the dual camera assembly
Part number Part description ID printed on cable
C A B -2 D C - B R L- 0 . 6 M = DC power cable with Barrel Plug. For use in the dual camera assembly. Length: 0.6 m 72-10 0 613-x x
C A B -2 D C - B R L-1 .1 5 M = DC power cable with Barrel Plug. For use in the dual camera assembly. Length: 1.15 m 72-10 0 614-x x
CAB-MIC-RJ.5-0.5M= Bundle of two RJ.5 microphone cables. For use in the dual camera assembly. Length: 0.5 m 72-10 0 6 7 8 -x x
CAB-MIC-RJ.5-1.0M= Bundle of two RJ.5 microphone cables. For use in the dual camera assembly. Length: 1.0 m 72-10 0 6 79 -x x
CAB-ETHRJ45-0.7M= Shielded, twisted pair Ethernet cable with RJ45 connectors. For use in the dual camera assembly. Length: 0.7 m 72-10 0 616 -x x
CAB-ETHRJ45-1.2M= Shielded, twisted pair Ethernet cable with RJ45 connectors. For use in the dual camera assembly. Length: 1.2 m 72-10 0 617-x x
1 2 1 2
1
2
1
2
Contents
Introduction
Spare parts
Cables
Appendices
Contact us
Cables

Cisco Telepresence MX800 Specifications

General

Pan range	-90 - 60 °
Product type	Video conferencing service management system
Product color	White
Wall mountable	Yes
Tilt angle range	-14 - 12 °
Number of persons	- person(s)
Aspect ratio	16:9
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.263, H.264, H.265
Resolution at capture speed	1920x1080@60fps
Supported graphics resolutions	352 x 288, 512 x 288, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Megapixel	- MP
Sensor type	-
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Closest focusing distance	1 m
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	70 \
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	591 W
Power consumption (typical)	571 W
