Cisco Telepresence MX800 Quick Start Guide

Quickstart Guide | Cisco Telepresence MX Series
8
Quickstart Guide | Cisco Telepresence MX Series
9
Put a call on Hold and Resume a Call on Hold
› When on a call, tap Hold to place the call on hold.
› Tap Resume to go back to the call.
Change Call Rate
› Call rate is the term used to express the amount of bandwidth
allocated to the call. The higher the call rate is, the better
the quality will be, but on the expense of higher
bandwidth consumption.
› Before a call, tap More to gain access to the options.
› Tap Call Rate and change the call rate by moving the slider.
Enable Do Not Disturb
› Tap the eld in the upper left corner of the screen.
› Tap Available or Do Not Disturb.
› Tap anywhere outside the menu to exit.
Enable Standby
› Tap the eld in the upper left corner of the screen.
› Tap Standby. The screen will turn itself off after a few seconds.
Tap the screen again to wake it up.
Placing and Receiving Calls

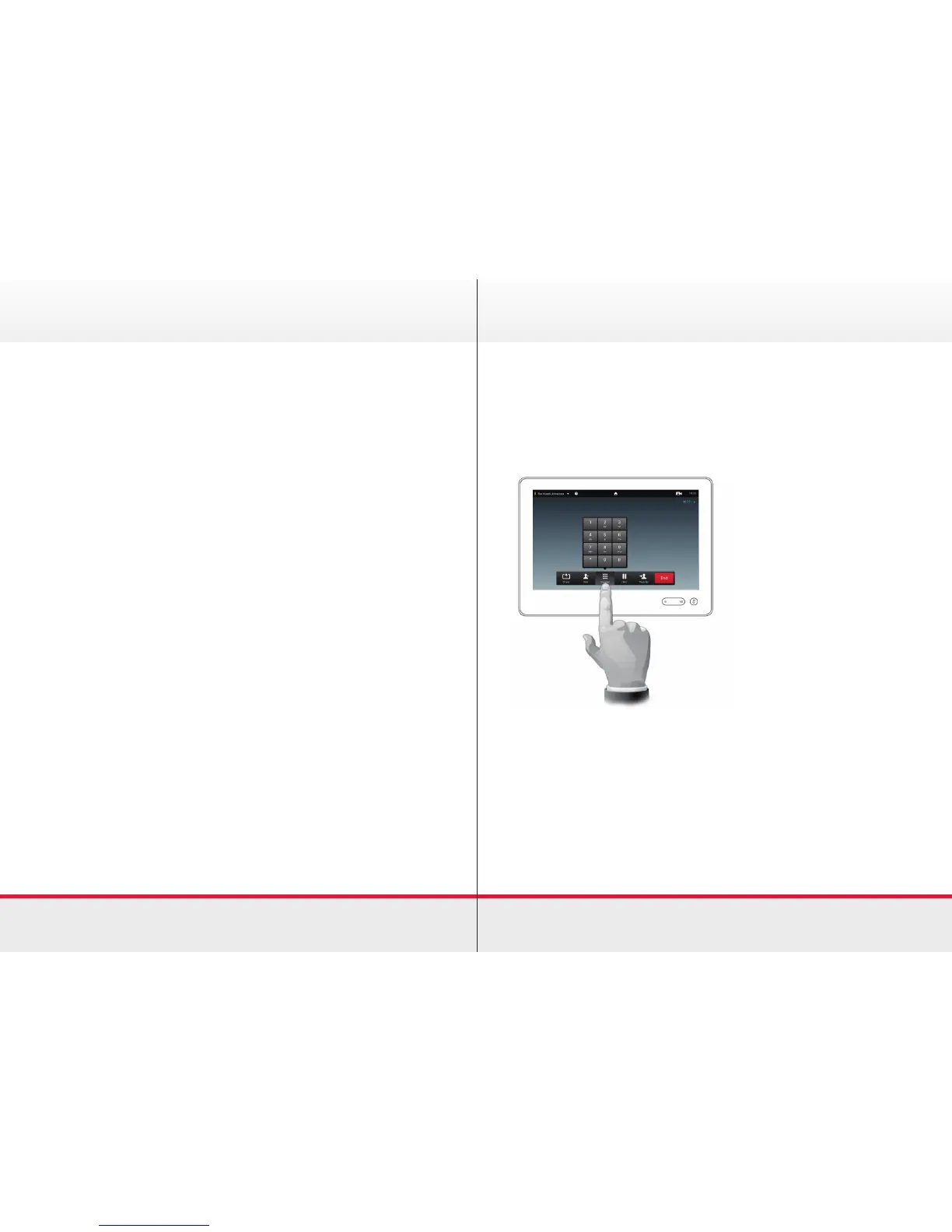

View keypad while in a call
› In a call you may be prompted to submit numbers to reach an
extension or gain entrance.
› During a call tap Keypad.
Placing and Receiving Calls

Cisco Telepresence MX800 Specifications

General

Pan range	-90 - 60 °
Product type	Video conferencing service management system
Product color	White
Wall mountable	Yes
Tilt angle range	-14 - 12 °
Number of persons	- person(s)
Aspect ratio	16:9
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.263, H.264, H.265
Resolution at capture speed	1920x1080@60fps
Supported graphics resolutions	352 x 288, 512 x 288, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Megapixel	- MP
Sensor type	-
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Closest focusing distance	1 m
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	70 \
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	591 W
Power consumption (typical)	571 W
