Cisco TelePresence SX80 Installation Guide

Installation guide for Cisco TelePresence SX80
78-100153-03A0rev1 | SEPTEMBER 2019 | © 2019 Cisco Systems, Inc. All rights reserved. 2
Attach rubber feet or mount the codec in a rack
Place the codec on a plane surface, or mount it in a standard rack.
On a plane surface
Attach the provided rubber feet on the bottom of the codec.
Place them in the recess in each corner.
In a standard rack

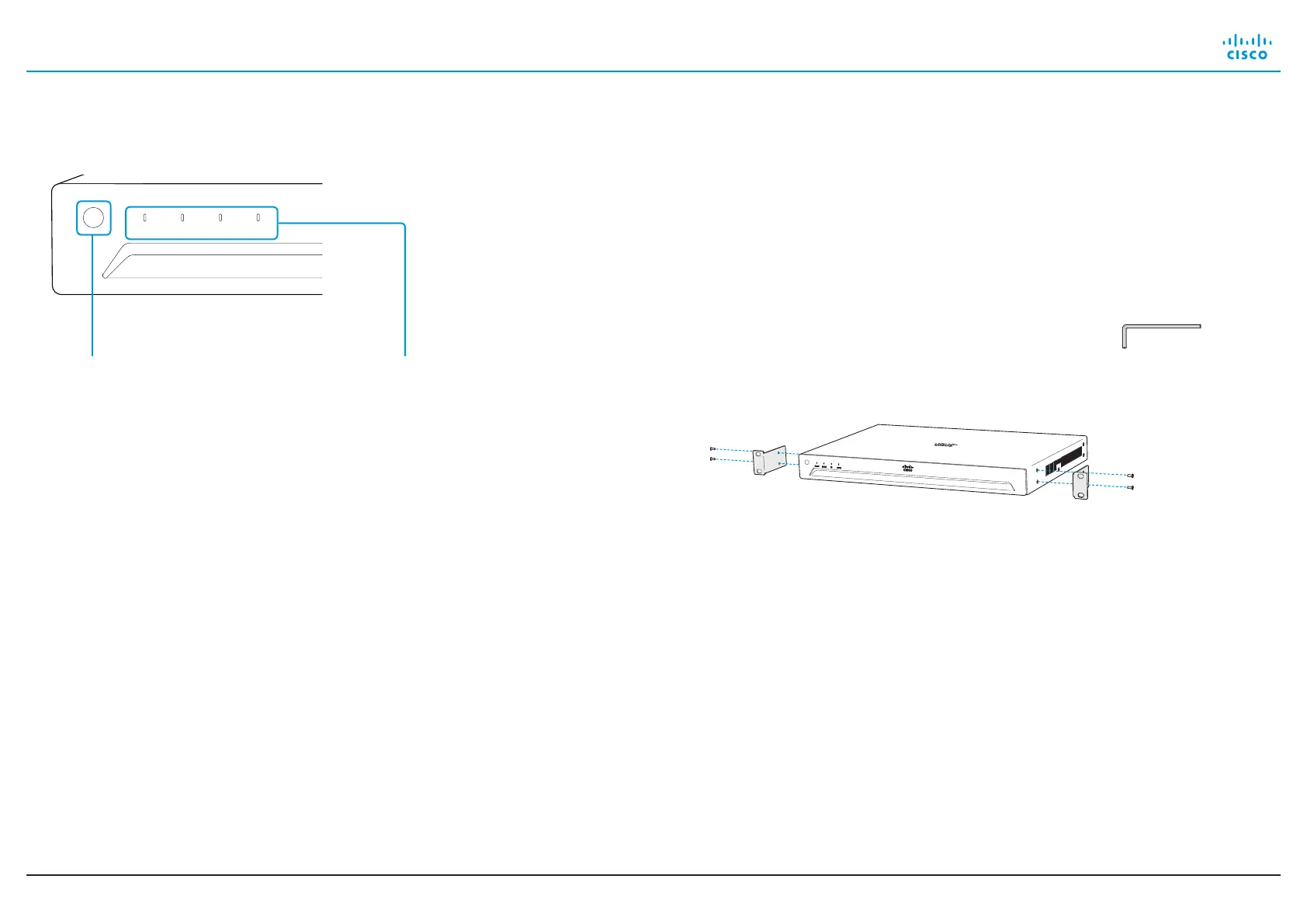

Fasten the provided rack ears to the codec using four screws.
The screws are pre-mounted in the codec. Use the Allen key to
remove the screws, put the rack ears in place, and fasten them
with the same screws (see illustration).
Fasten the codec with rack ears to the rack with screws
matching your rack (not provided).
Allen key, 2 mm
Power In Call IR Alarm
Front panel
Front panel LEDs
Power Blinks when the system is
starting up.
Steady light when the
codec is ready for use.
Pulsates when the codec is
in standby.
In Call Steady light when in call.
IR Not in use.
Alarm Lights steady when a
serious error occurs.
Shutdown

Cisco TelePresence SX80 Specifications

General

Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.262, H.263, H.264, H.265
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711, G.722, G.722.1, G.729ab
Noise reduction	Yes
HDMI ports quantity	5
DVI-D ports quantity	1
USB 2.0 ports quantity	2
Product color	Silver
Rack capacity	1U
Number of persons	0 person(s)
Analog signal format system	NTSC, PAL
Security algorithms	HTTPS, SSH
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	SIP, H.323, ISDN, TCP/IP, DHCP, QoS
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Sensor type	-
Image sensor size	- \

Weight and Dimensions

Depth	309.8 mm
Width	442 mm
Height	44 mm
Weight	3650 g
