Cisco TelePresence SX80 Installation Guide

Installation guide for Cisco TelePresence SX80
78-100153-03A0rev1 | SEPTEMBER 2019 | © 2019 Cisco Systems, Inc. All rights reserved. 4
Start using the system
Power (100-240 VAC, 50/60 Hz)
Power
switch

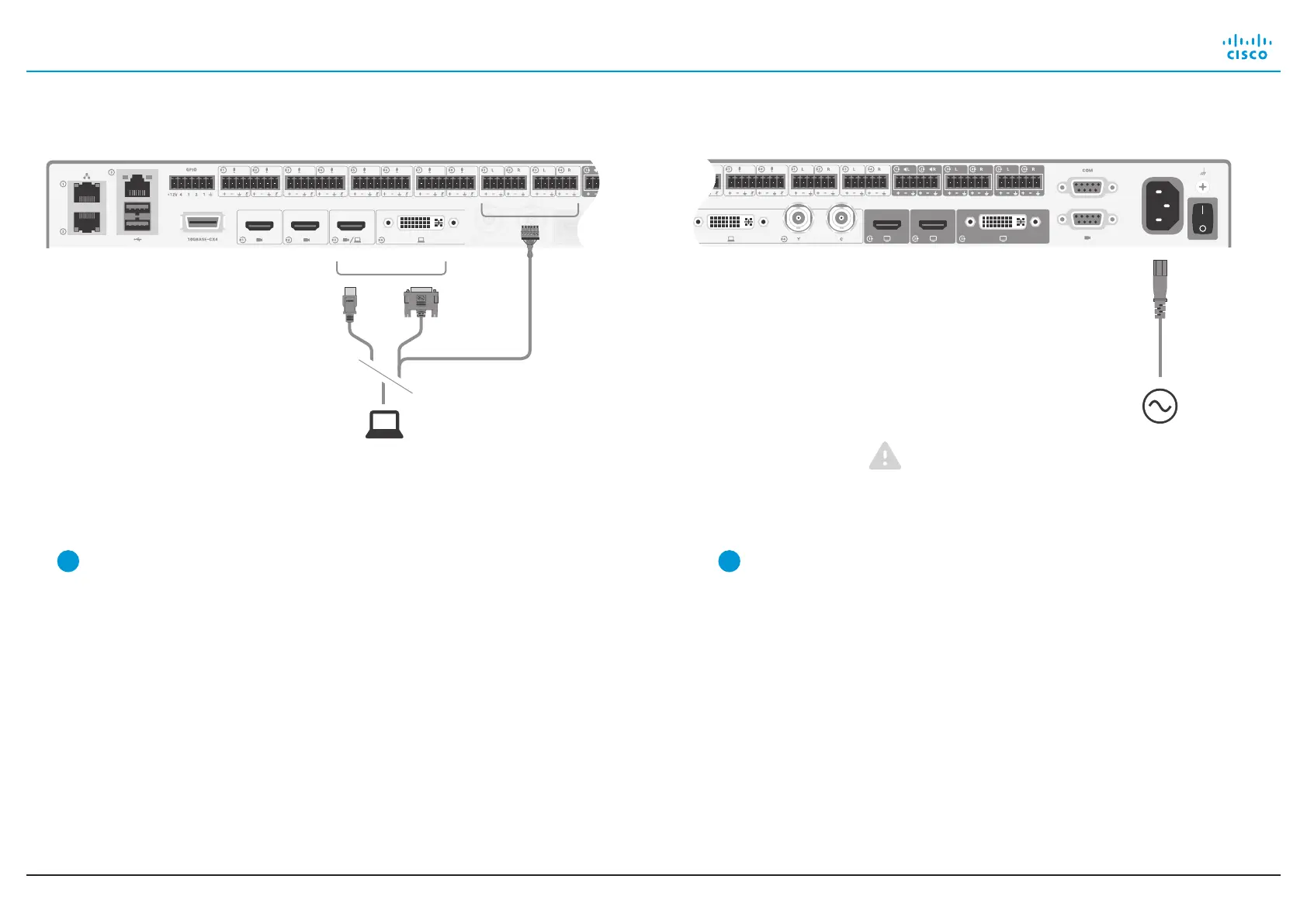

Connect a PC (optional)
7
Connect a PC to the codec, in order to share
content locally or with conference participants.
Always use the provided power cable.
The codec inlet or the wall socket outlet
must be easily accessible after installation.
8
Connect to power, then switch on the system.
Wait while the codec starts up. Normally this takes a few
minutes. It may include automatic software upgrade and
restart of Touch 10 and camera(s).
Follow the instructions on screen:
• Cisco Webex: To find more information on how to get
started, visit https://help.webex.com and look for Getting
Started articles for room devices.
• Other services: For further information on set-up and
configuration, download the Getting Started Guide from
the Cisco web site, https://www.cisco.com/go/sx-docs
PC, max 2
(DVI-I/Euroblock or HDMI)

Cisco TelePresence SX80 Specifications

General

Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.262, H.263, H.264, H.265
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711, G.722, G.722.1, G.729ab
Noise reduction	Yes
HDMI ports quantity	5
DVI-D ports quantity	1
USB 2.0 ports quantity	2
Product color	Silver
Rack capacity	1U
Number of persons	0 person(s)
Analog signal format system	NTSC, PAL
Security algorithms	HTTPS, SSH
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	SIP, H.323, ISDN, TCP/IP, DHCP, QoS
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Sensor type	-
Image sensor size	- \

Weight and Dimensions

Depth	309.8 mm
Width	442 mm
Height	44 mm
Weight	3650 g
