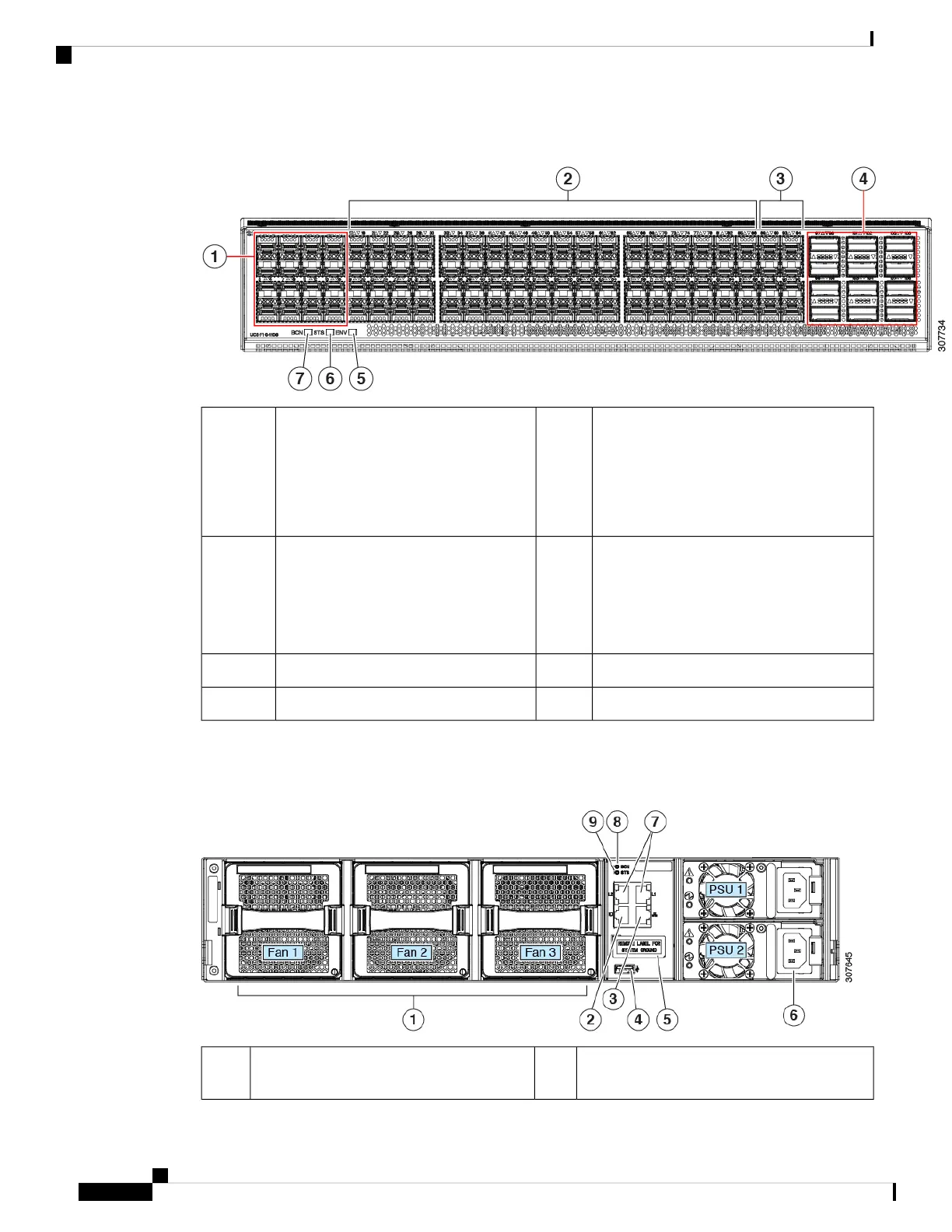

Figure 3: Cisco UCS 64108 Fabric Interconnect Rear View
Ports 17-88
10/25 Gbps Ethernet or FCoE
2Ports 1 - 16
Unified ports:
• 10/25 Gbps Ethernet or FCoE
• 8/16/32 Gbps Fibre Channel
1
Uplink Ports 97-108 (40/100 Gbps Ethernet
or FCoE)
Each of these ports can be 4 x 10/25 Gbps
Ethernet or FCoE uplink ports when using a
breakout cable.
4Ports 89-96
1/10/25 Gbps Ethernet or FCoE
3
System status LED6System environment (fan fault) LED5
Beacon LED7
The Cisco UCS 64108 Fabric Interconnect has two power supplies (redundant as 1+1) and three fans (redundant
as 2+1).
Figure 4: Cisco UCS 64108 Fabric Interconnect Front View
RS-232 serial console port (RJ-45 connector)2Cooling fans
(hot swappable, 2+1 redundancy)
1
Cisco UCS 6400 Series Fabric Interconnect Hardware Installation Guide
4
Product Overview
Cisco UCS 64108 Fabric Interconnect
