The Cisco UCS 6454 Fabric Interconnect chassis has two power supplies and four fans. Two of the fans
provide front to rear airflow.

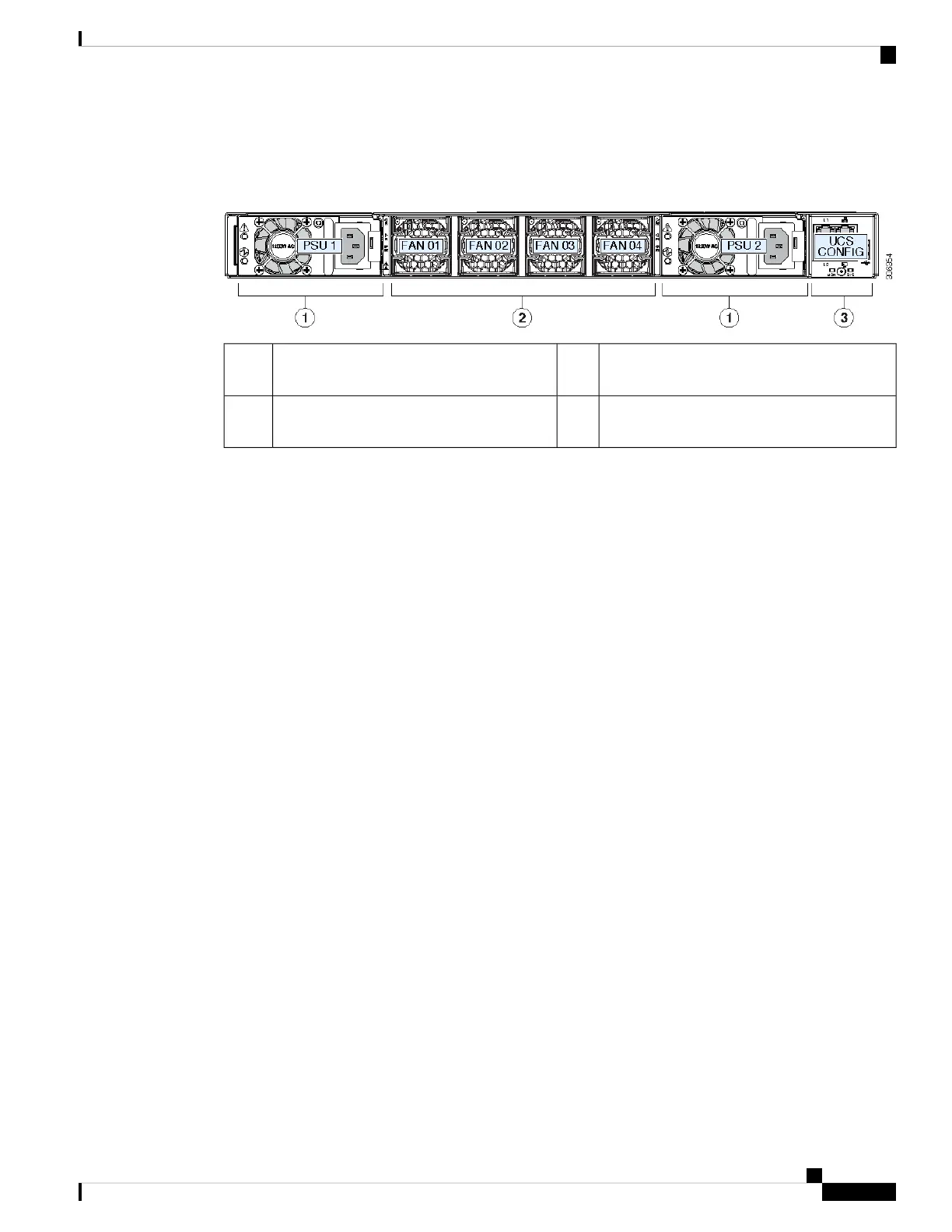

Figure 2: Cisco UCS 6454 Fabric Interconnect Front View
Fans 1 through 4, numbered left to right, when
facing the front of the chassis
2Power supply and power cord connector1
L1 port, L2 port, RJ45, console, USB port,
and LEDs
3
Cisco UCS 64108 Fabric Interconnect
The Cisco UCS 64108 Fabric Interconnect (FI) is a 2-RU top-of-rack switch that mounts in a standard 19-inch
rack such as the Cisco R Series rack. This high-density FI is an ideal upgrade from the high-density Cisco
UCS 6296 Fabric Interconnect.
The high-density Cisco UCS 64108 Fabric Interconnect has 96 10/25 Gb SFP28 ports and 12 40/100 Gb
QSFP28 ports. Each 40/100 Gb port can break out into 4 x 10/25 Gb uplink ports. Sixteen ports (1-16) are
unified ports that support 10/25 GbE or 8/16/32G Fibre Channel speeds.The Cisco UCS 64108 Fabric
Interconnect supports:
• Maximum of 8 FCoE port channels
• Or 4 SAN Ports
• Or a maximum of 8 SAN port channels and FCoE port channels (4 each)
The Cisco UCS 64108 Fabric Interconnect also has one network management port, one RS-232 serial console
port for setting the initial configuration, and one USB port for saving or loading configurations. The FI also
includes L1/L2 ports for connecting two fabric interconnects in a high-availability configuration.
The Cisco UCS 64108 Fabric Interconnect also contains a CPU board that consists of:
• Intel Xeon Processor, 6 core
• 64 GB of RAM
• 8 MB of NVRAM (4 x NVRAM chips)
• 128 GB SSD (bootflash)
Cisco UCS 6400 Series Fabric Interconnect Hardware Installation Guide
3
Product Overview
Cisco UCS 64108 Fabric Interconnect
