b) Use a tape measure and level to verify that the rails are horizontal and at the same height.

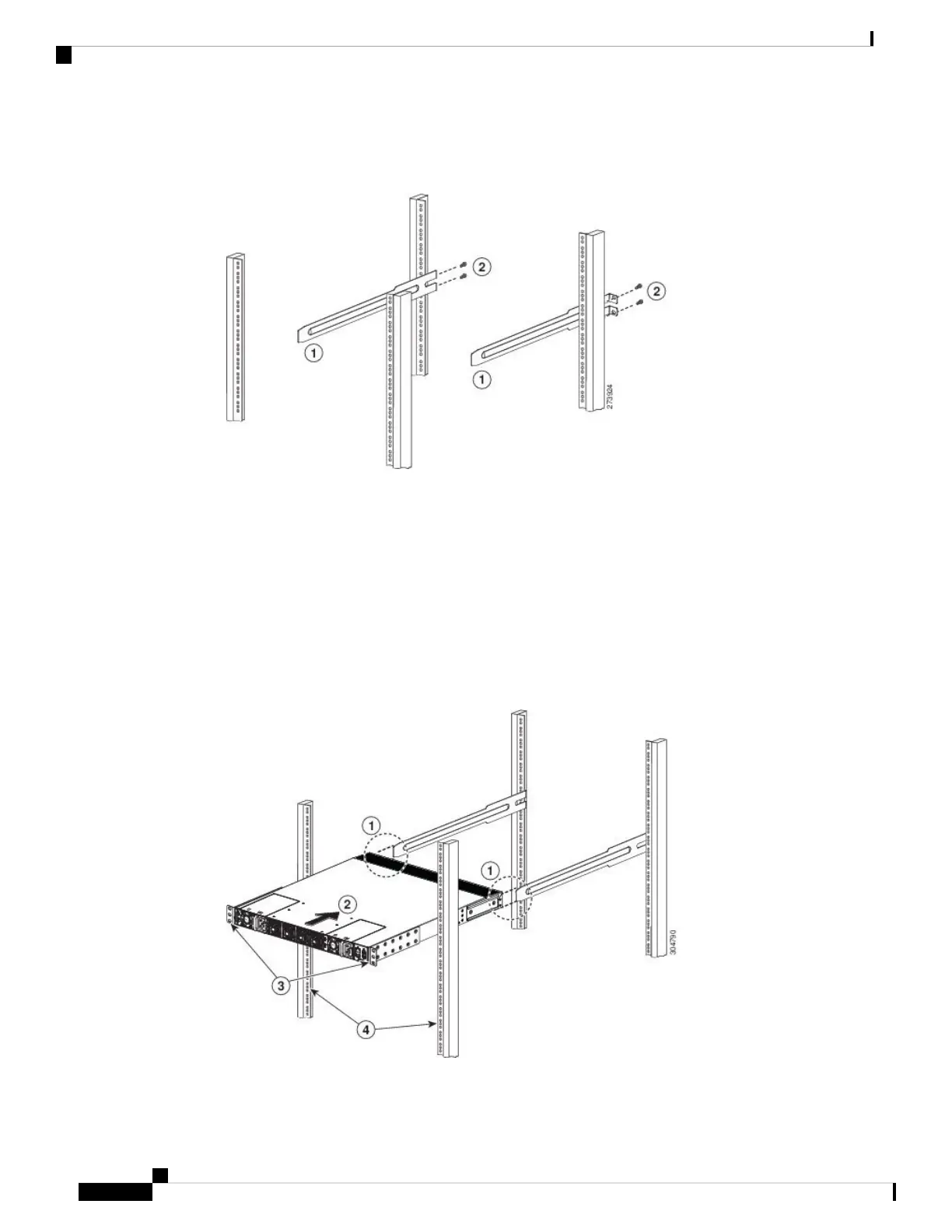

Figure 10: Installing the Slider Rails
Step 4 Insert the FI into the rack:
The UCS 6454 FI weighs 22 lb (9.97 kg) when fully loaded with components. The Cisco UCS
64108 FI weighs 27.4 pounds (12.4 kg) when fully loaded with components.
Note
a) Supporting both sides of the FI, position the two rear rack-mount guides on the chassis between the two
posts that do not have slider rails attached to them (see the following figure).
b) Align the two rear rack-mount guides on either side of the chassis with the slider rails installed in the rack.
Slide the rack-mount guides onto the slider rails, and then gently slide the chassis all the way into the
rack. If the chassis does not slide easily, try realigning the rack-mount guides on the slider rails.
Figure 11: Sliding the FI Into the Rack
Step 5 Stabilize the chassis in the rack by attaching the front rack-mount brackets to the front rack posts:
Cisco UCS 6400 Series Fabric Interconnect Hardware Installation Guide
20
Installing the Cisco UCS Fabric Interconnect
Installing the Cisco UCS FI in a Cabinet or Rack
