Cisco WAP125 Manual

●

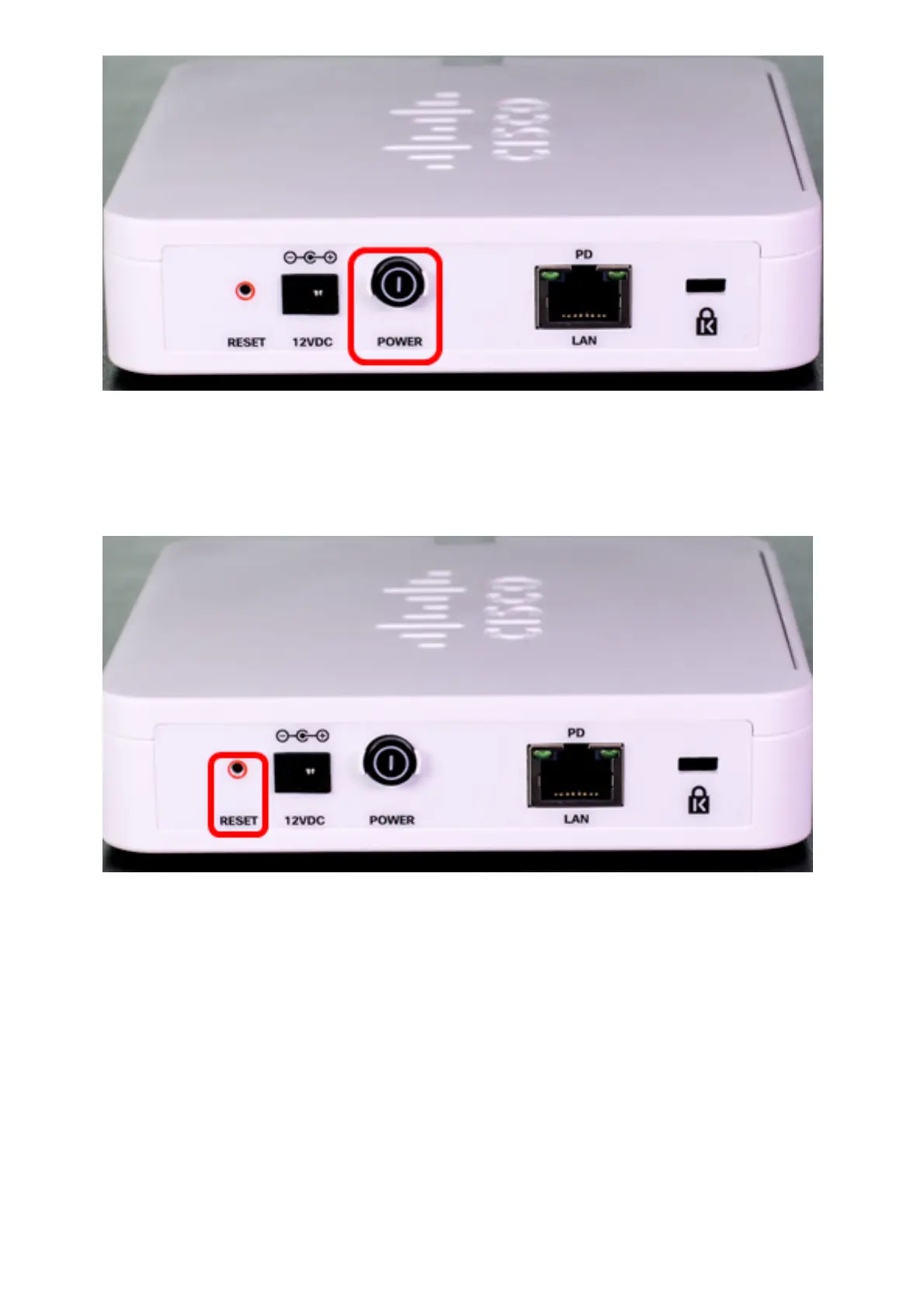

Note: The POWER button only works if the device is using a power adapter. If power is
supplied through Power over Ethernet (PoE), unplug your Ethernet connection for three
seconds then plug it back.
Press the Reset button for about three seconds only, or until the lights go off.
Note: In both above images, the WAP125 is pictured.
Reboot through the Web-based Utility
Step 1. Log in to the web-based utility of your WAP and choose Administration > Reboot.

Cisco WAP125 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
Number of users	64 user(s)
Networking standards	IEEE 802.3af, IEEE 802.11ac
Spread spectrum method	DSSS, OFDM
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	867 Mbit/s
Security algorithms	WPA, WPA2
Number of SSID supported	8
Supported network protocols	IPv6, NTP, HTTP, HTTPS
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Output current	1 A
Output voltage	12 V
Power plug type	Type C
AC input voltage	100 - 240 V
AC input frequency	50 Hz
Placement	Desk
Certification	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, IEC 60950-1, EN 60950-1, FCC 15.247, 15.407; RSS-210; EN 300.328, EN 301.893; AS/NZS 4268.2003; FCC 15.107 15.109, ICES-003, EN 301.489-1 -17
Product color	White
Recommended usage	Indoor
Cable lock slot type	Kensington
Antenna type	Internal
Antenna gain level (max)	5.63 dBi
Flash memory	128 MB
Internal memory	256 MB
Operating system installed	Linux
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %
Country of origin	China
Quantity per pack	1 pc(s)
Package depth	188.976 mm
Package width	168.91 mm
Package height	80.01 mm
Package weight	1133.98 g

Weight and Dimensions

Width	123.19 mm
Height	31.75 mm
Weight	303.91 g
