Chapter 3 Installing Supervisor Engines
Installing a Supervisor Engine

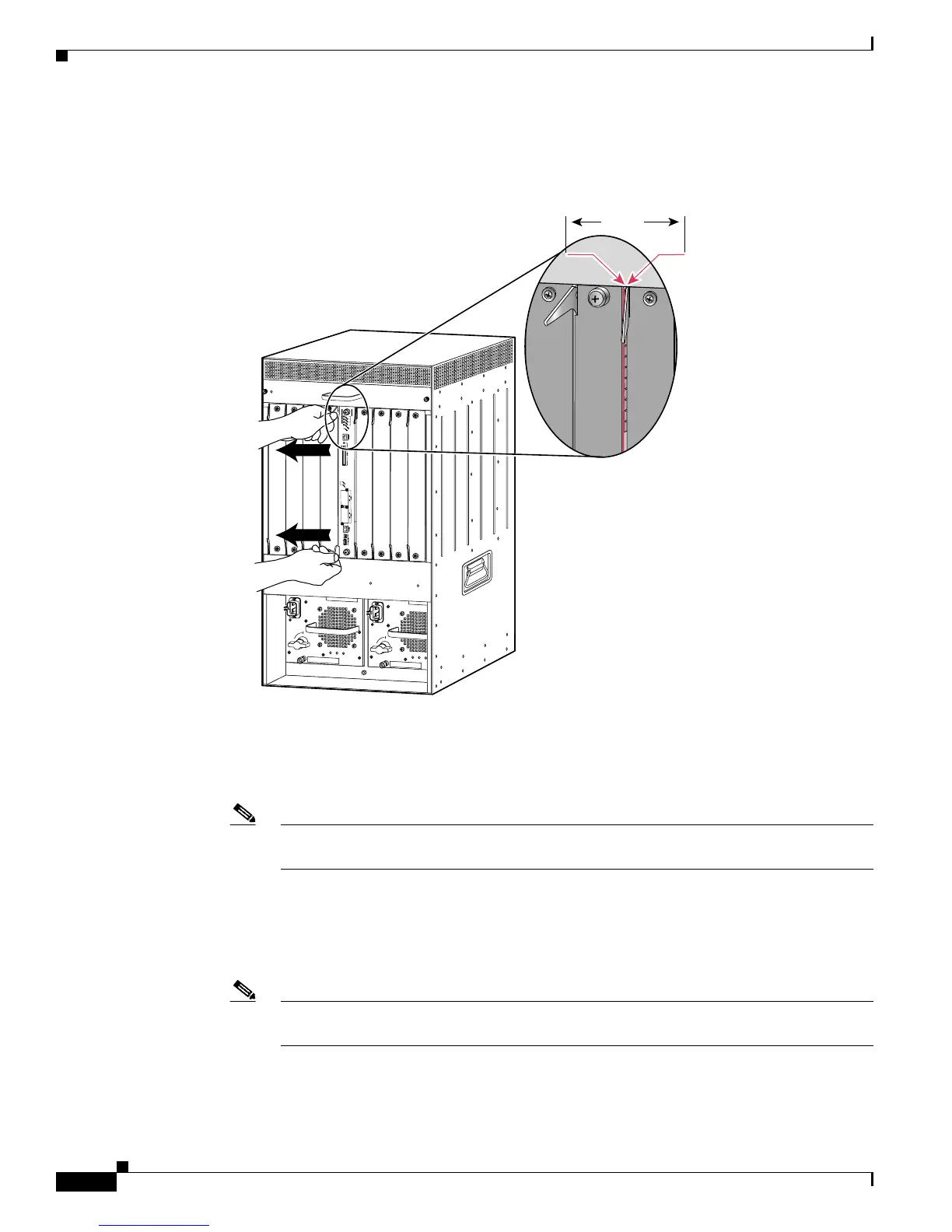

Figure 3-4 Clearing the EMI Gasket in a Vertical Slot Chassis
c. Using the thumb and forefinger of each hand, grasp the two ejector levers and exert a slight pressure
to the left, deflecting the supervisor engine approximately 0.040 inches (1
mm) creating a small gap
between the supervisor engine’s EMI gasket and the module or cover plate adjacent to it. (See
Figure 3-4.)
Note Do not exert too much pressure on the ejector levers because they will bend and get
damaged.
d. While gently pressing to the left on the ejector levers, simultaneously close both levers to fully seat
the supervisor engine in the backplane connector. The ejector levers are fully closed when they are
flush with the supervisor engine faceplate.
e. Tighten the two captive installation screws on the supervisor engine.
Note Make sure that the ejector levers are fully closed before tightening the captive installation
screws.
f. Verify that the supervisor engine STATUS LED is lit.
g. Periodically check the STATUS LED:
INPUT
OK
FAN
OK
OUTPUT
FAIL
o
INPUT
OK
FAN
OK
OUTPUT
FAIL
o
4
8
FAN
STAT US
130911
Gap between the module
EMI gasket and the
module above it
1mm
Press left
Press left
