3-7
Catalyst 6500 Series Supervisor Engine Guide
OL-7397-03
Chapter 3 Installing Supervisor Engines
Installing a Supervisor Engine
g. Periodically check the STATUS LED.
• If the STATUS LED changes from orange to green, the supervisor engine has successfully
completed the boot process and is now online.
• If the STATUS LED remains orange or turns red, the supervisor engine has not successfully
completed the boot process and may have encountered an error.
Chassis with vertical slots
a. Position the supervisor engine in the slot. (See Figure 3-3.) Make sure that you align the sides of the
supervisor engine carrier with the slot guides on the top and bottom of the chassis slot.
b. Carefully slide the supervisor engine into the slot until the EMI gasket along the right edge of the
module makes contact with the module or cover plate in the slot adjacent to it and the module ejector
levers have both closed to approximately 45
degrees with respect to the module faceplate. (See
Figure 3-4.)

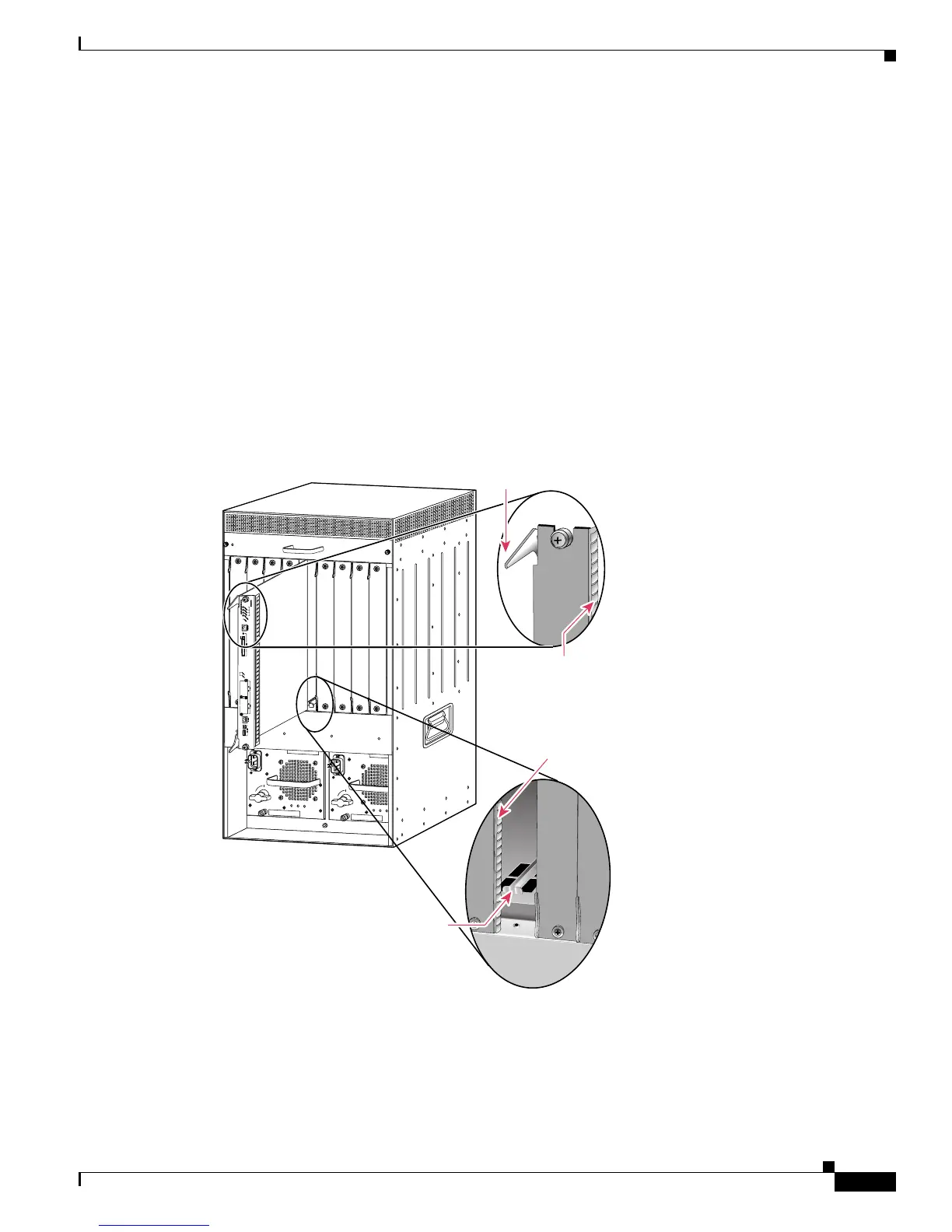

Figure 3-3 Positioning the Module in a Vertical Slot Chassis
INPUT
OK
FAN
OK
OUTPUT
FAIL
o
INPUT
OK
FAN
OK
OUTPUT
FAIL
o
FAN
STAT US
Ejector lever fully
extended
4
3
6
SELECT
NEXT
24 PO
RT 100FX
WS-X6224
S
T
A
T
U
S
A
C
T
I
V
E
EMI
gasket
EMI
gasket
130910
Insert module
between slot guides
