For information about performing initial configuration of your appliance, see Initial Configuration.
Citrix ADC MPX 14000-40C
September 19, 2022
The Citrix ADC MPX 14000-40C are 2U appliances. Each model has 2 six-core processors, 64 GB of
memory, and sixteen 10G SFP+ ports.

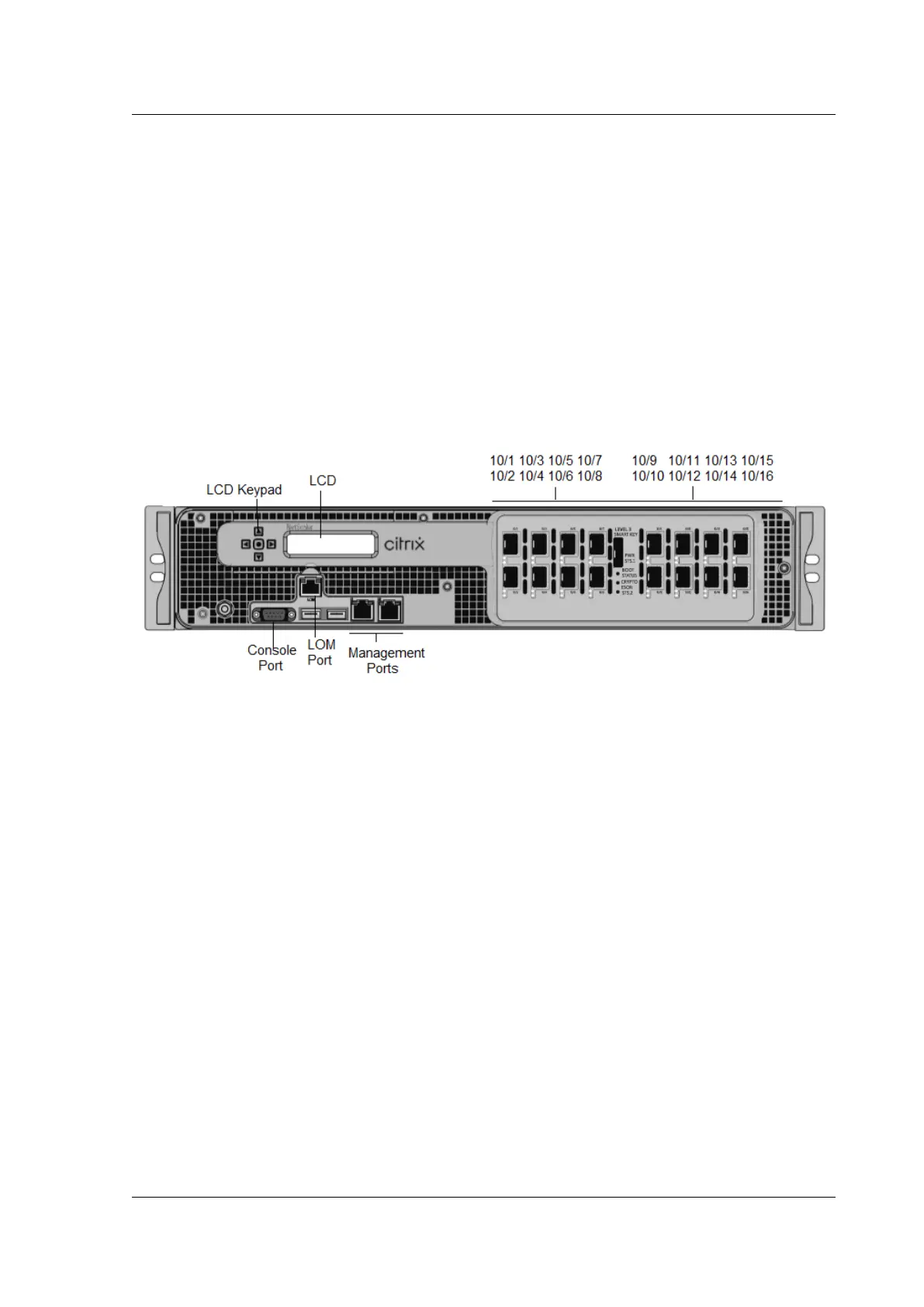

The following figure shows the front panel of the 14000-40C appliance.
Figure 1. Citrix ADC MPX 14020/14040/14060/14080/14100-40C (16x10G SFP+ ports), front panel
The Citrix ADC MPX14000-40C appliances have the following ports:
• RS232 serial Console Port.
• 10/100Base-T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base-T copper Ethernet management ports (RJ45), also called Management
ports, numbered 0/1 and 0/2 from le to right. These ports are used to connect directly to the
appliance for system administration functions.
• Network Ports: Sixteen 10G SFP+ ports.
• USB port (reserved for a future release).
The following figure shows the back panel of the MPX14000-40C appliances.
Figure 2. Citrix ADC MPX 14020/14040/14060/14080/14100-40C (16x10G SFP+), back panel
