Citrix ADC MPX 14000-40G
September 19, 2022
The Citrix ADC MPX 14020-40G, MPX 14040-40G, MPX 14060-40G, MPX 14080-40G, MPX 14100-40G are
2U appliances. Each model has two 6-core processors, 64 GB of memory, four 40G QSFP+ ports, and
sixteen 10G SFP+ ports (4x40G QSFP+ + 16x10G SFP+).

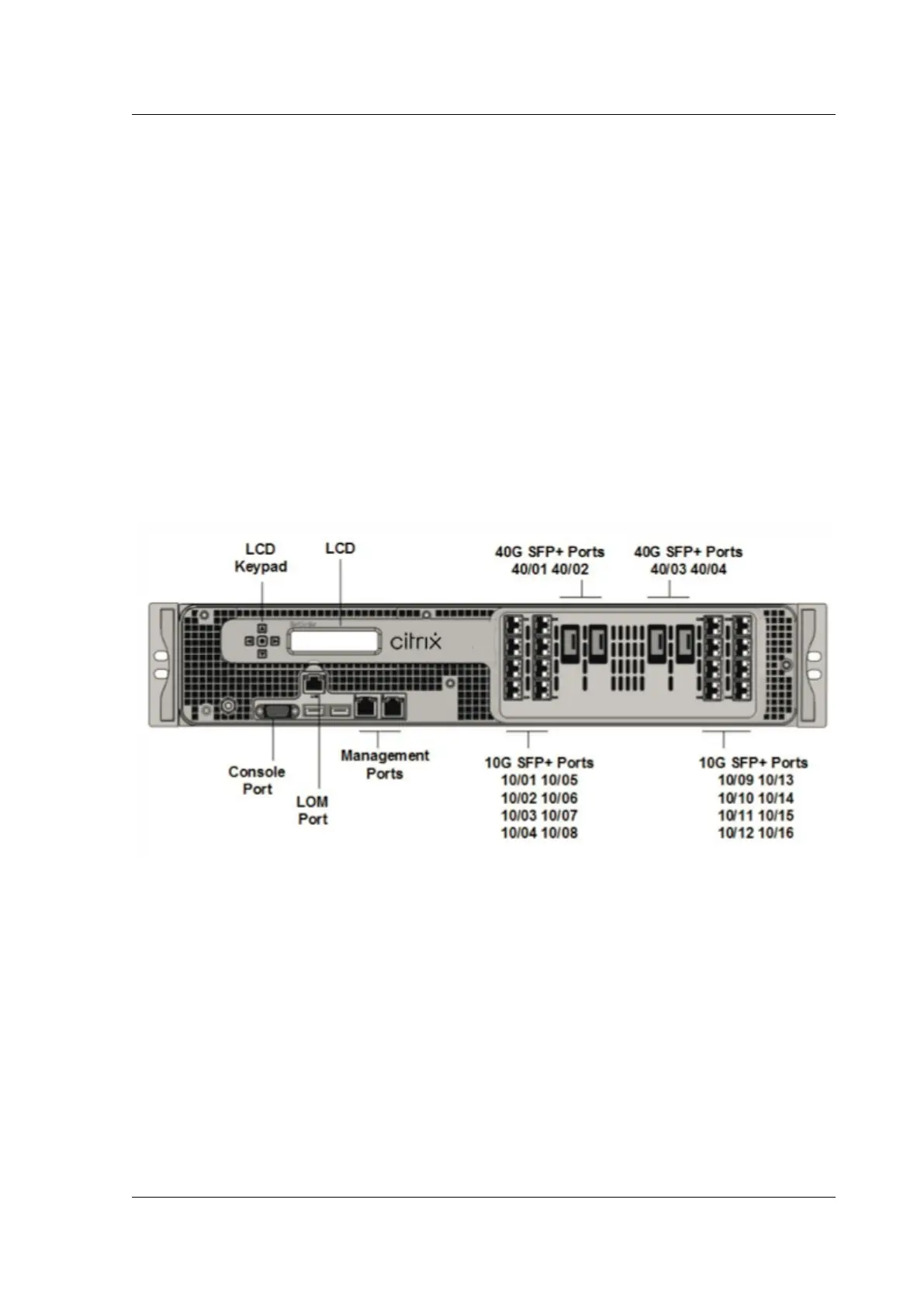

The following figure shows the front panel of the 14000-40G appliance.
Figure 1. Citrix ADC MPX 14020/14040/14060/14080/14100-40G (4x40G QSFP+, 16x10G SFP+), front
panel
• RS232 serial Console Port.
• 10/100Base-T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base-T copper Ethernet Management Ports (RJ45), numbered 0/1 and 0/2 from
le to right. These ports are used to connect directly to the appliance for system administration
functions.
• Network Ports, sixteen 10G SFP+ ports (16x10G SFP+), four 40G QSFP+ ports (4x40G QSFP+). For
information about supported transceivers per port, see 25G, 40G, 50G, and 100G ports.
• USB port (reserved for a future release).
