Citrix ADC MPX
The Citrix ADC MPX 26000-50S appliances have the following ports:
• RS232 serial console port.
• One 10/100/1000Base-T RJ45 copper Ethernet LOM Port. Use this port to remotely monitor and
manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base-T RJ45 copper EthernetManagement Ports, numbered 0/1 and 0/2. These
ports are used to connect directly to the appliance for Citrix ADC administration functions.
• Four 50G ports, numbered 50/1 to 50/4.
• Sixteen 25G ports, numbered 25/1 through 25/16. For information about supported transceivers
per port, see 25G, 40G, 50G, and 100G ports.

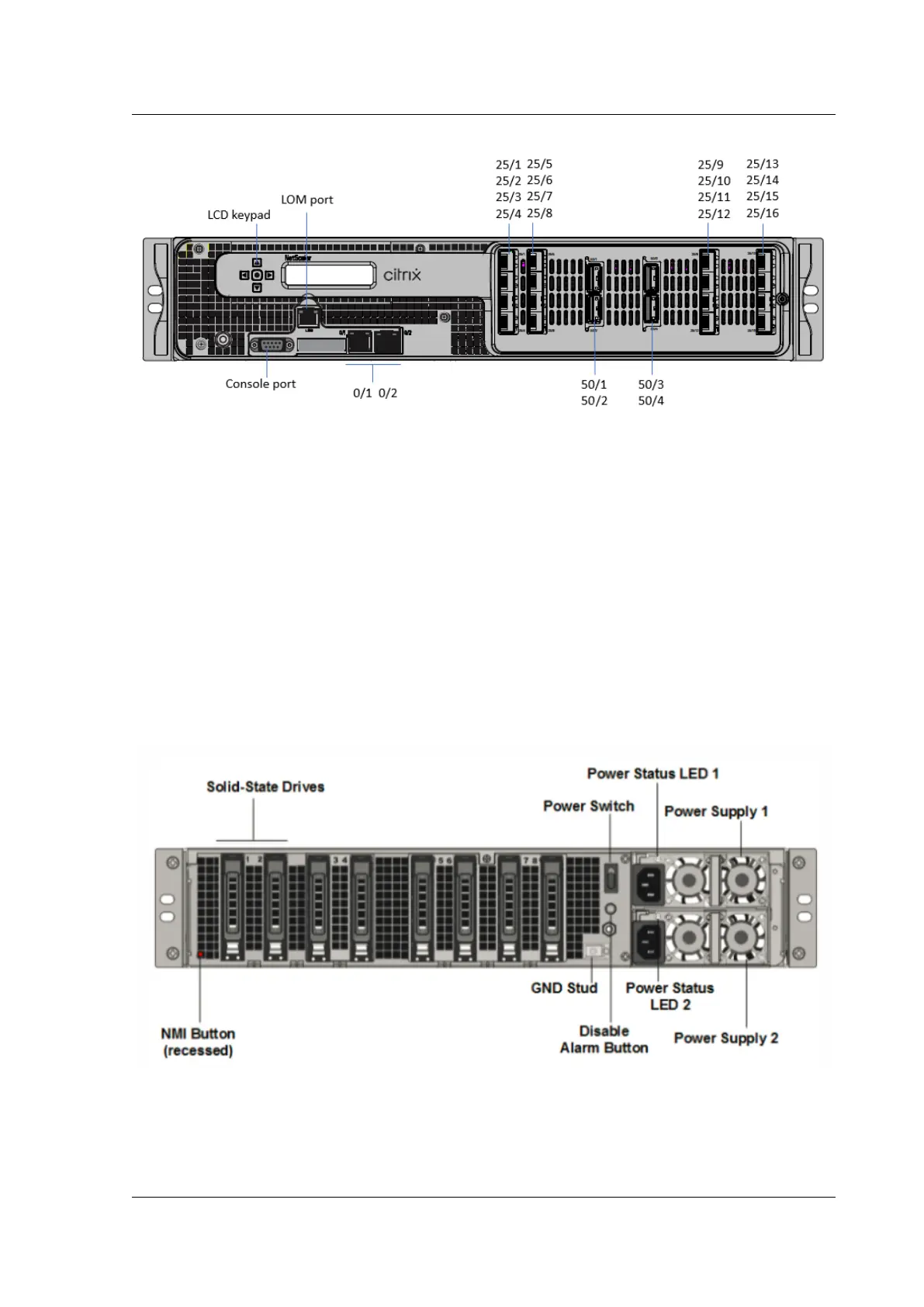

The following figure shows the back panel of the MPX 26000-50S appliances.
Figure 2. Citrix ADC MPX 26000-50S, back panel
The following components are visible on the back panel of the Citrix ADC MPX 26000-50S appliances:
• Two 480 GB or larger removable solid-state drives in a redundant array of independent disks
© 1999‒2022 Citrix Systems, Inc. All rights reserved. 92
