ENGINE
97
EXHAUST SPECIFICATIONS
Engine : RLZ
Tightening torques (m.daN).
(2) Collars 2.5 ± 0.3
Repair
Respect the precautions to be taken when
operating on a vehicle.
The flexible pipe must not come into contact
with corrosive products.
Do not distort the flexible pipe by more than 20°
angular (X), 20mm axial, 25 mm shear (Y)
(flexible pipe not fitted).
Do not distort the flexible pipe by more than 3°
angular (X), 0 mm axial, 3 mm shear
(Y) (flexible pipe in place).
WARNING : Non-respect for these precautions
will result in a reduction in the lifetime of the
flexible pipe. It is thus essential to disconnect or
remove the exhaust line in any operation
necessitating the lifting of the power unit.

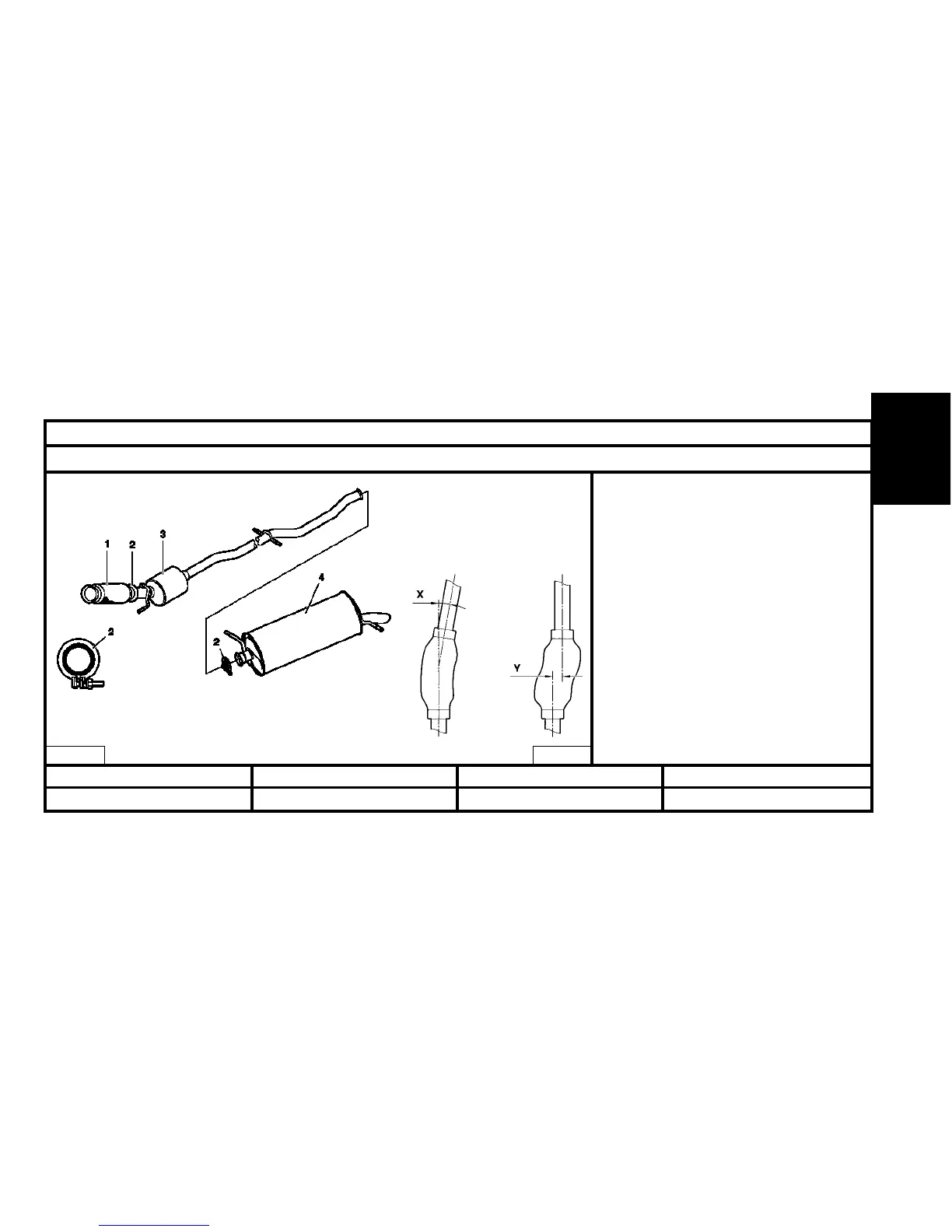

Engine Front flexible pipe (1) Catalytic converter (3) Rear silencer (4)
RLZ PSA K185 PSA 4157
B1JP02HD B1JP02JC
