ENGINE
105

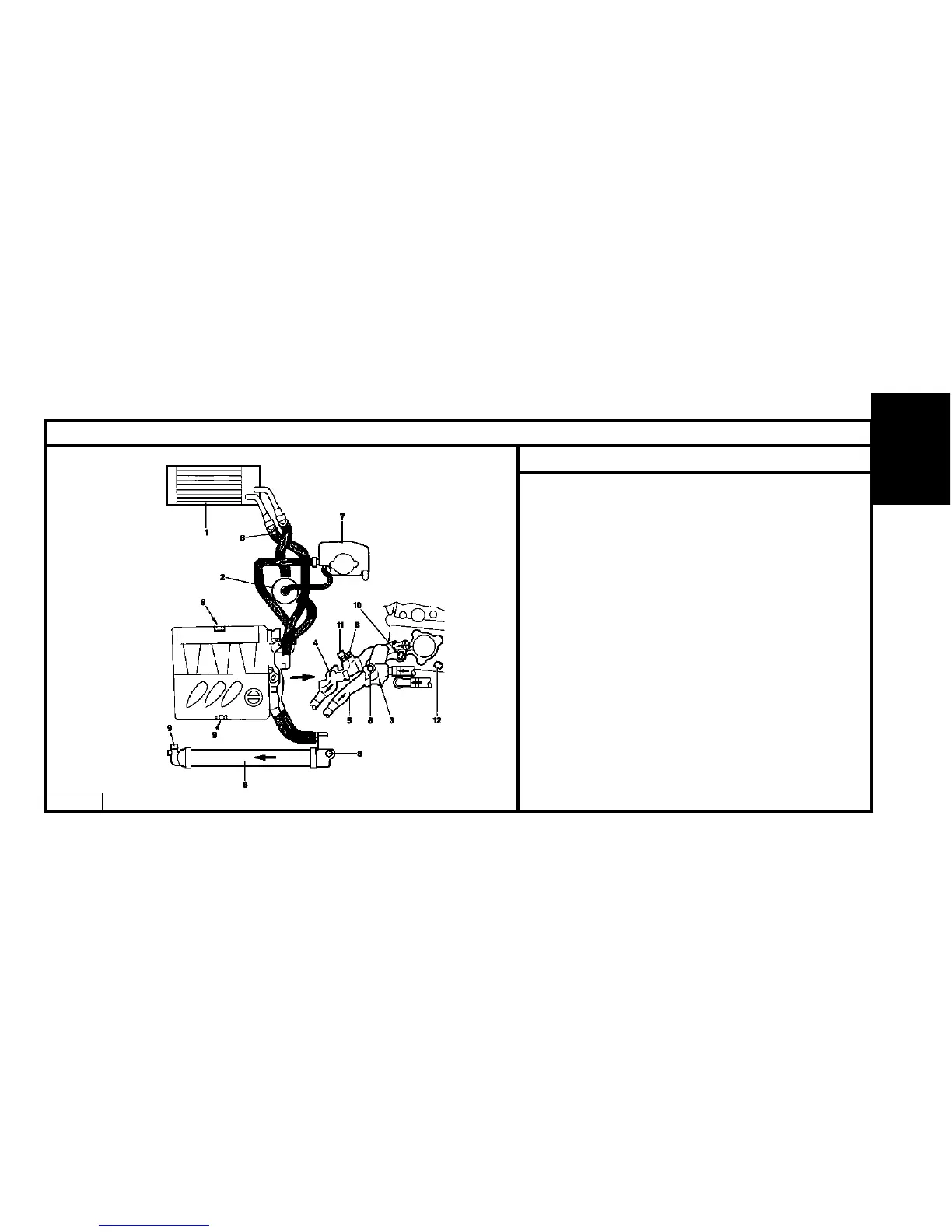

COOLING SYSTEM SPECIFICATIONS
Engine : XFX
(1) Heater matrix
(2) Venting chamber
(3) Thermostat.
(4) Coolant outlet housing
(5) Coolant inlet housing
(6) Engine cooling radiator
(7) Venting chamber
(8) Bleed screw
(9) Water / oil exchanger
(10) Thermostat
(11) Thermostat (Coolant outlet housing)
(12) Thermal switch
(10). (11) and (12) : Tightening 1.7 ± 0.4 m.daN
B1GP041P
