185
CLUTCH
GEARBOX
DRIVESHAFTS

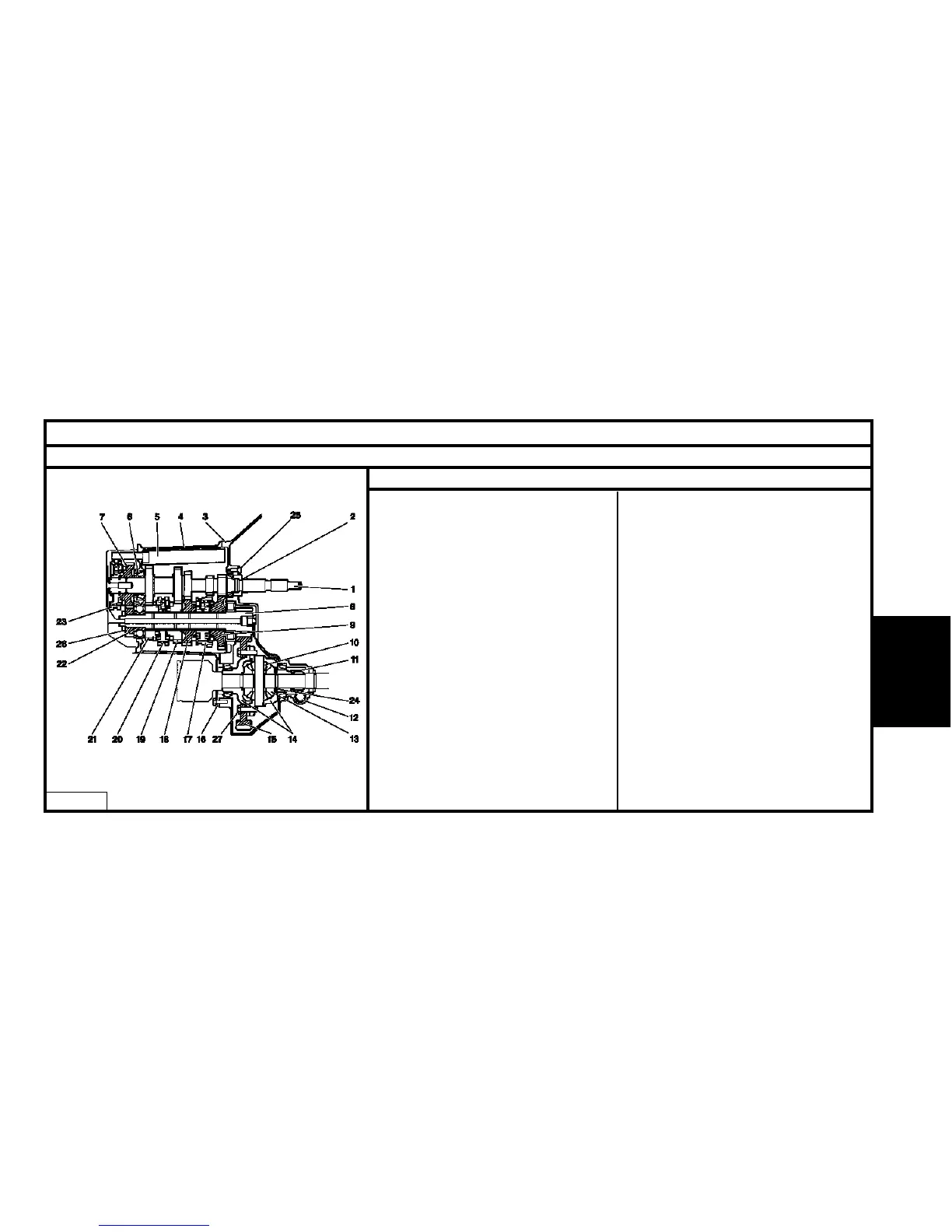

ML/5 GEARBOX SPECIFICATION
Engines : XFX – RHZ – 4HX
Identification (continued)
(1) Primary shaft.
(2) Clutch bearing guide.
(3) Clutch housing
(4) Gearbox casing.
(5) Oil channel
(6) Primary shaft bearing adjustment shim.
(7) Drive gear (5th)
(8) Secondary shaft.
(9) Driven gear (1st)
(10) Satellite gears.
(11) Speedometer screw.
(12) Speedometer drive.
(13) Planet gears.
(14) Differential housing
(15) Differential gearwheel.
(16) Differential bearing stop plate.
(17) 1st/2nd gear synchroniser and
reverse gear driven gear.
(18) Driven gear (2nd)
(19) Driven gears (3rd)
(20) 3rd/4th gear synchroniser.
(21) Driven gears (4th)
(22) Driven gears (5th)
(23) 5th gear synchroniser.
(24) Planet gear adjustment shim.
Tightening torques m.daN.
(25) Clutch bearing guide 2 ± 0,2
(26) Secondary shaft nut 17 ± 1,5
(27) Differential screw 7,5 ± 0,5
B2CP3CNP
