4 HP 20 AUTOACTIVE GEARBOX SPECIFICATION
Engines : XFX - 4HX
Tightening torques m.daN.

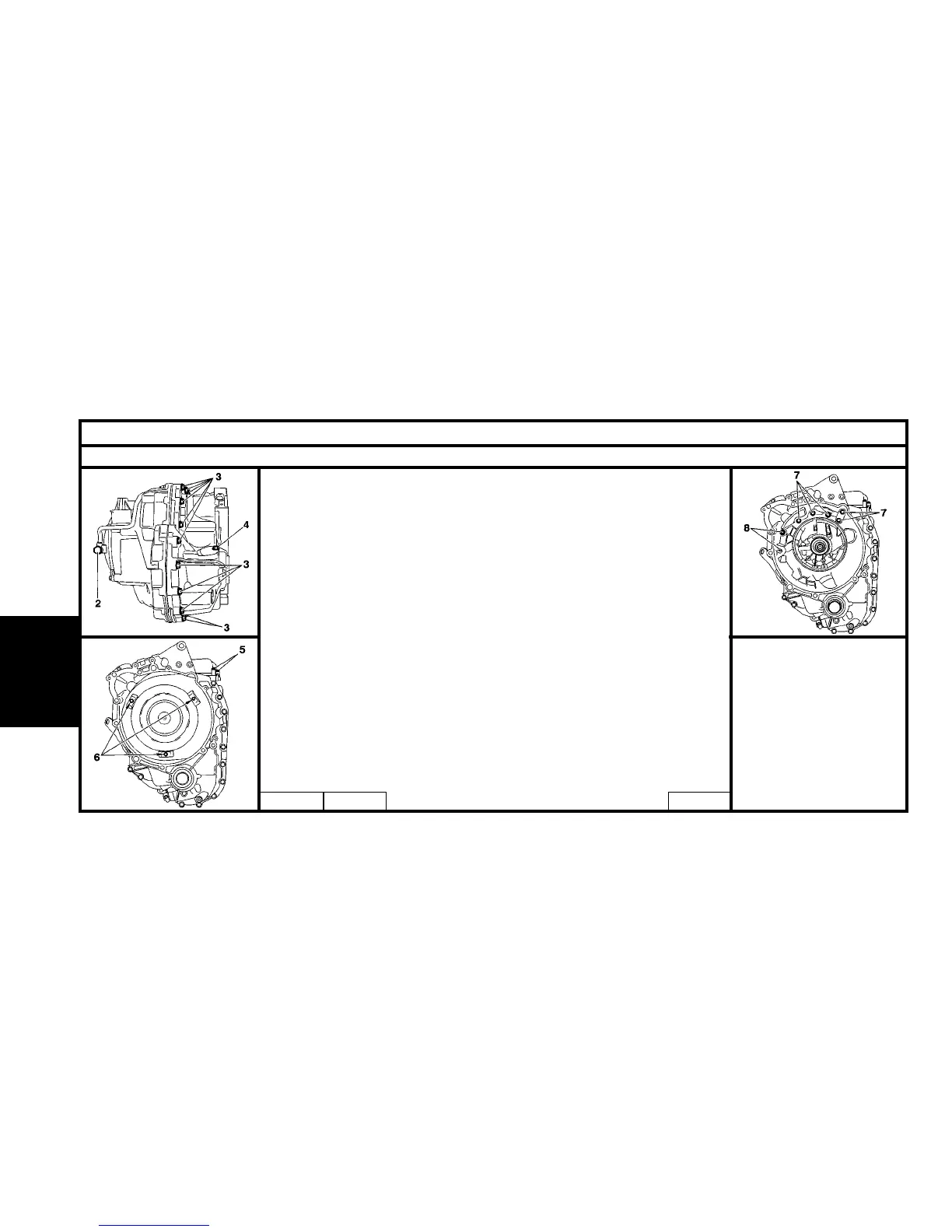

Gearbox exterior.
(2) Oil channel union fixing Exteror fixing of 2.5 ± 0.5
(3) Exterior fixing of converter cover on clutch housing 2.3 ± 0.5
(4) Speedometer take-off aperture plug 1 ± 0.1
(5) Steel casing fixing 0.6 ± 0.1
(6) Converter fixing on engine 6 ± 1
(7) Interior fixing of converter cover on clutch housing 2.3 ± 0.5
(8) Torx fixing of converter cover on clutch housing 2.3 ± 0.5
Drain plug 4.5 ± 0.8
Heat exchanger fixing 3.5 ± 0.5
Selector lever position switch fixing 1 ± 0.2
Converter cover fixing on engine cover (XFX engine) 6.5 ± 1
Converter cover fixing on engine cover (4HX engine) 5.8 ± 1
B2CP3CZC B2CP24BC B2CP24CC
