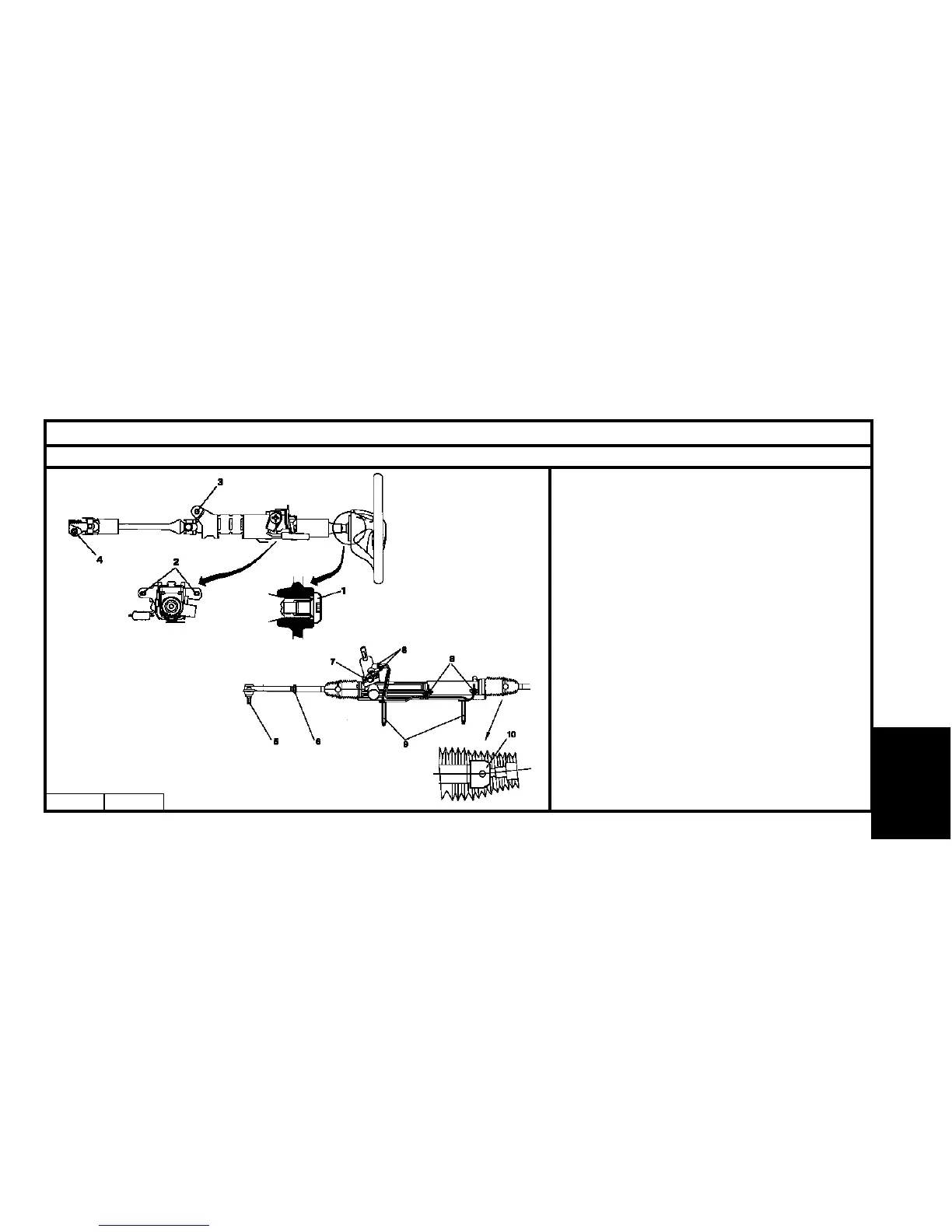

SPECIFICATIONS OF POWER-ASSISTED STEERING
Engines : 6FZ-RFN-RLZ-XFX-RHY-RHZ-4HX
Tightening torques m.daN.
(1) Steering wheel fixing 2 ± 0.3
(2) Column fixing on mounting 2.3 ± 0.4
(3) Column fixing on mounting 2.3 ± 0.2
(4) Cardan fixing 2.3 ± 0.3
(5) Ball-joint fixing on pivot 3.5 ± 0.6
(6) Link rod lock nut 6 ± 0.4
(7) Valve fixing on cover 2.3 ± 0.1
(8) Piping fixing on ram 0.8 ± 0.8
(9) Mechanism fixing on subframe 8 ± 0.9
(10) Steering rack ball-joint 9 ± 0.9
Quantity of oil = 4,3 litres
Quality of oil = TOTAL FLUIDE LDS
B3EP124D B3EP125D
