ENGINE
74
CHECKING AND SETTING THE VALVE TIMING
Engine : XFX
TOOLS
[1] Camshaft setting pegs (-).0187.B
[2] Crankshaft setting peg (-).0187.A
[3] Fuel pressure take-off union 4192-T
[4] Belt retaining pin (-).0187.J
[5] Exhaust camshaft hubs immobilising tool (-).0187.F
[6] Inlet camshaft hubs immobilising tool (-).0187.F
Remove the auxiliaries drive belt (See corresponding operation).
Checking the valve timing setting.

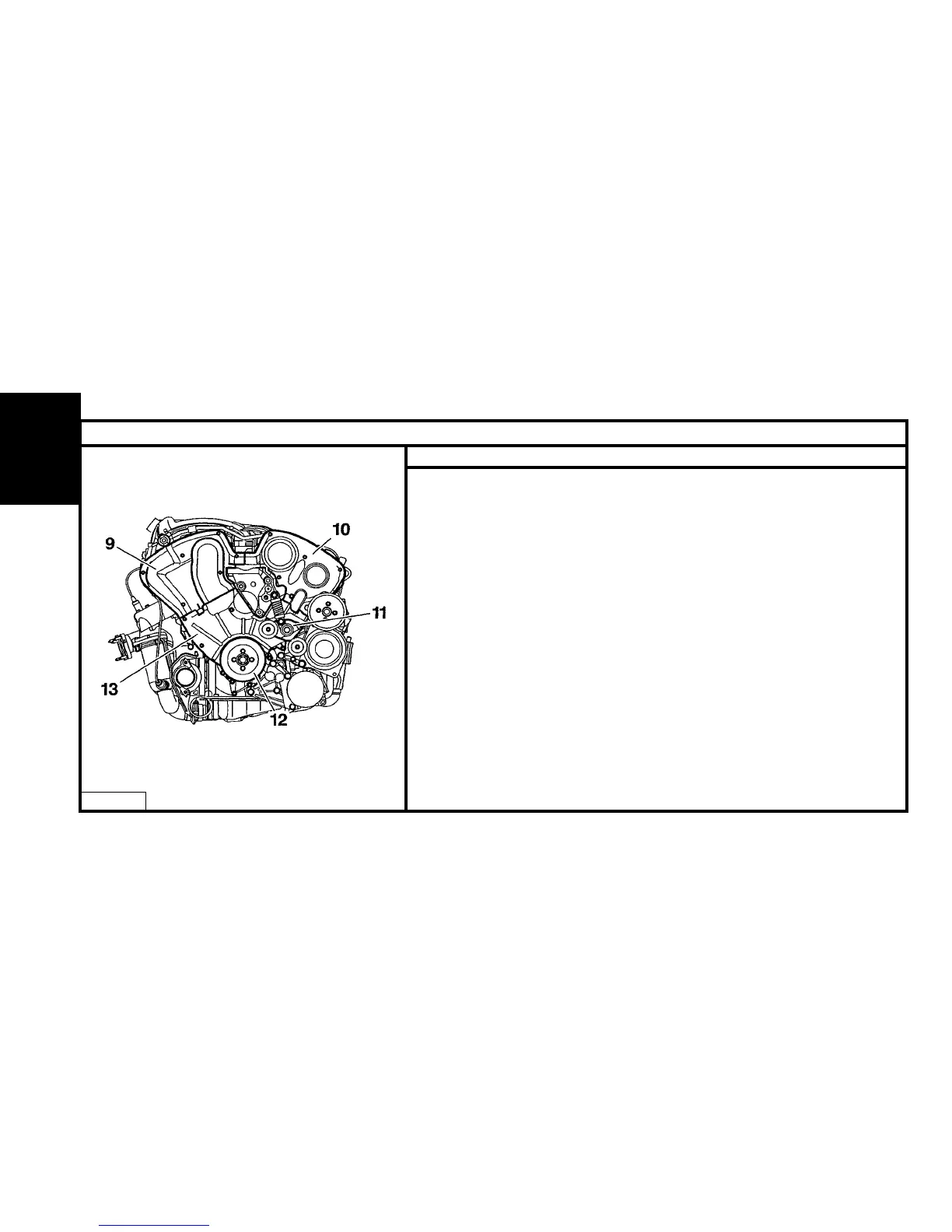

Remove :
- The power steering pulley.
- The roller / dynamic tensioner assembly (11).
- The crankshaft pulley (12).
- The upper timing covers (9) and (10).
- The lower timing cover (13).
B1BP2BKC
