ENGINE
86

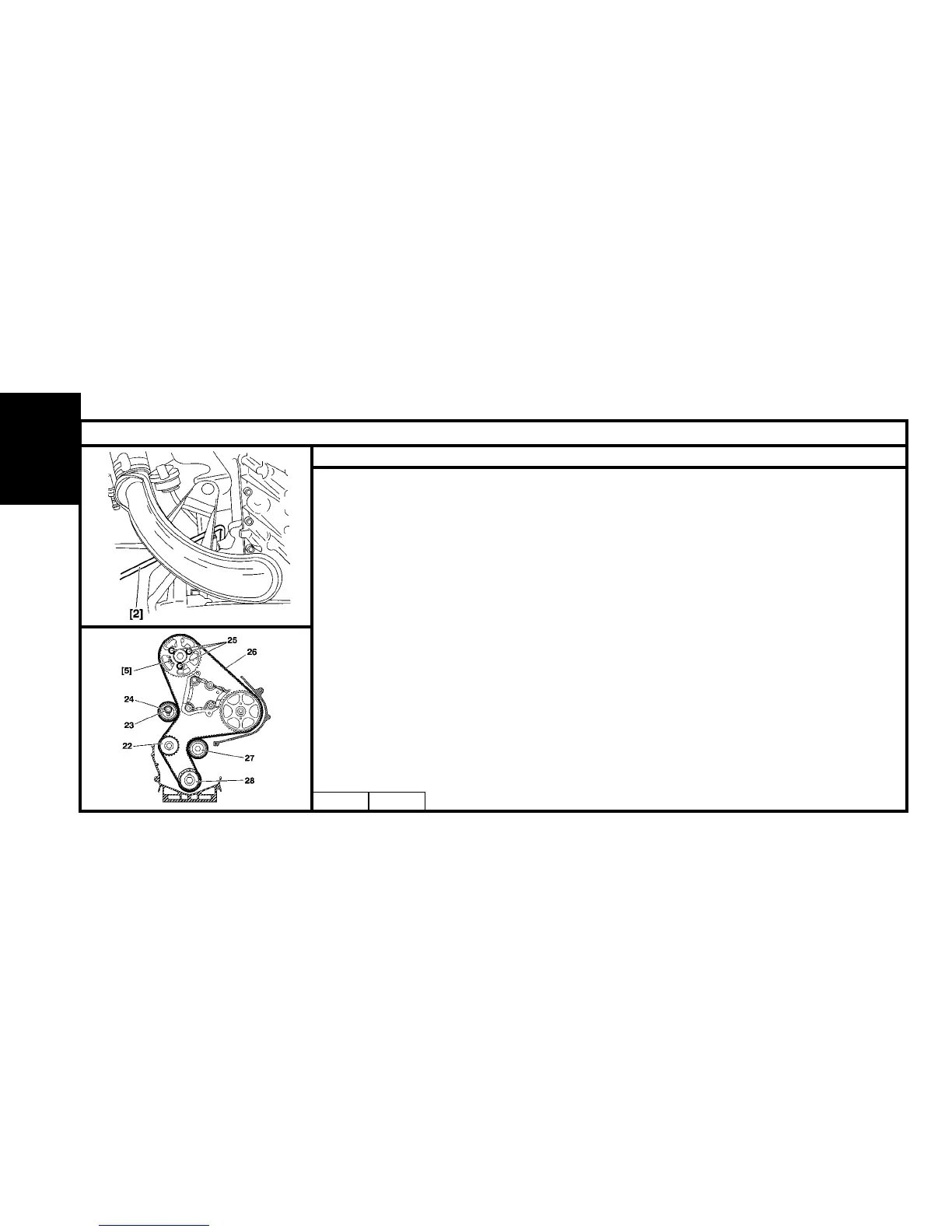

Checking the setting of the valve timing (continued).
IMPERATIVE : If it is impossible to line up the marks on the chain and on the camshaft drive
pinions, restart the camshaft setting.
(See operation for removing and refitting camshafts).
- If the marks on the chains and pinions are coinciding, continue the checking operations.
Peg :
- The crankshaft, using tool [3].
- The camshaft pinion, using tool [5]
IMPERATIVE : Should it be impossible to peg the camshaft, check that the offset between the
camshaft pinion hole and the pegging hole is not more than 1 mm (use a screw 7 mm in dia.).
If the offset is more than 1 mm, restart the setting of the valve timing
(See corresponding operation).
- Remove the tools [3] and [5].
CHECKING AND SETTING THE VALVE TIMING
Engine : 4HX
B1EP15AD
B1BP298C
