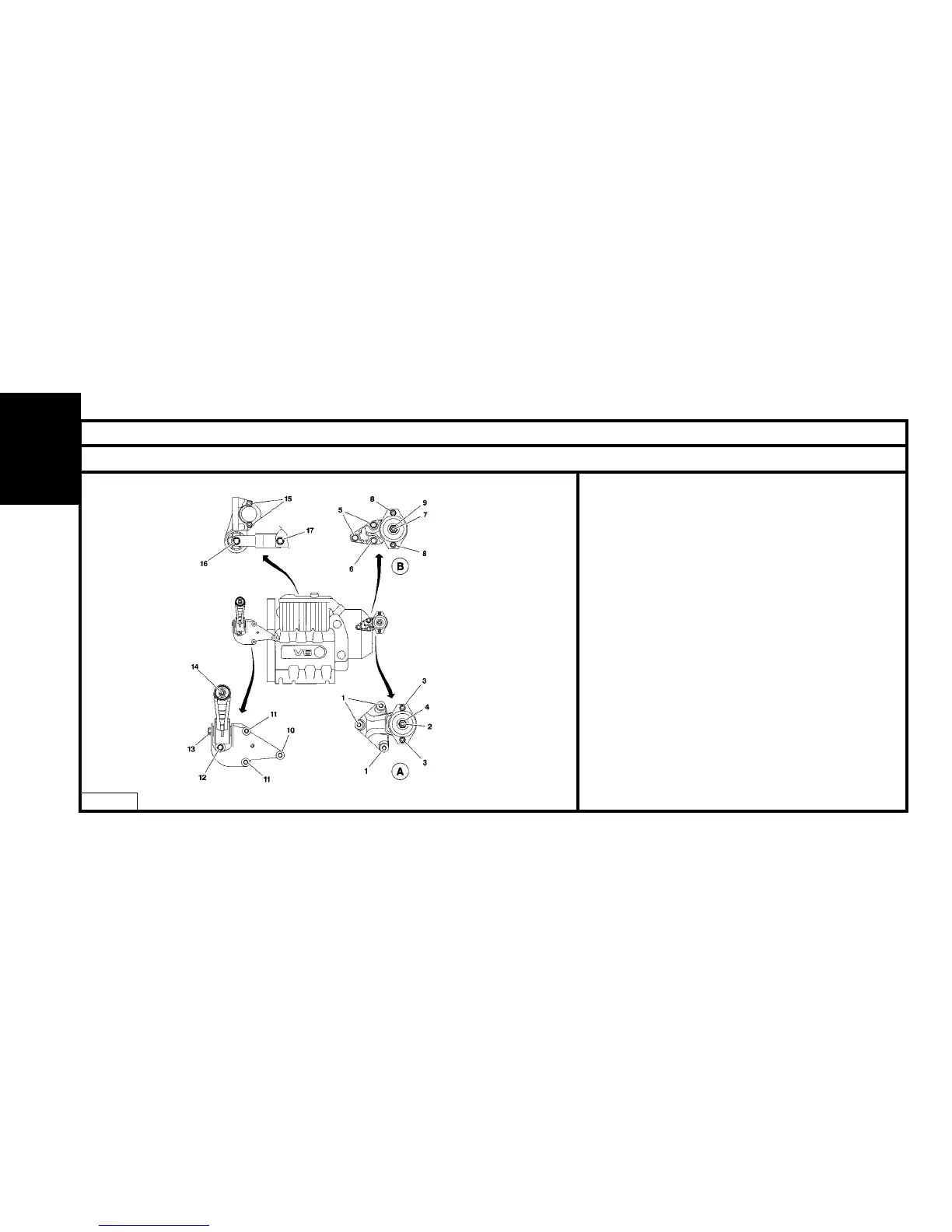

SPECIAL FEATURES : POWER UNIT SUSPENSION
Engine : XFX
A - Manual gearbox: (LH mounting):
(1) Bolt 4.5 ± 0.5
(2) Pin 5 ± 0.5
(3) Bolt 3 ± 0.3
(4) Nut 6.5 ± 0.6
B - Automatic gearbox:
(5) Bolt 6 ± 0.6
(6) Bolt 5.5 ± 0.5
(7) Pin 0.8 ± 0.1
(8) Bolt 2.7 ± 0.3
(9) Nut 2.8 ± 0.1
Upper RH engine mounting:
(10) Bolt 6.1 ± 0.6
(11) Bolt 6.1 ± 0.6
(12) Bolt 4.5 ± 0.5
(13) Nut 5 ± 0.5
(14) Nut 5 ± 0.5
Lower RH engine mounting - Torque reaction rod:
(15) Nut 1 ± 0.1
(16) Bolt 5 ± 0.5
(17) Bolt 5 ± 0.5
