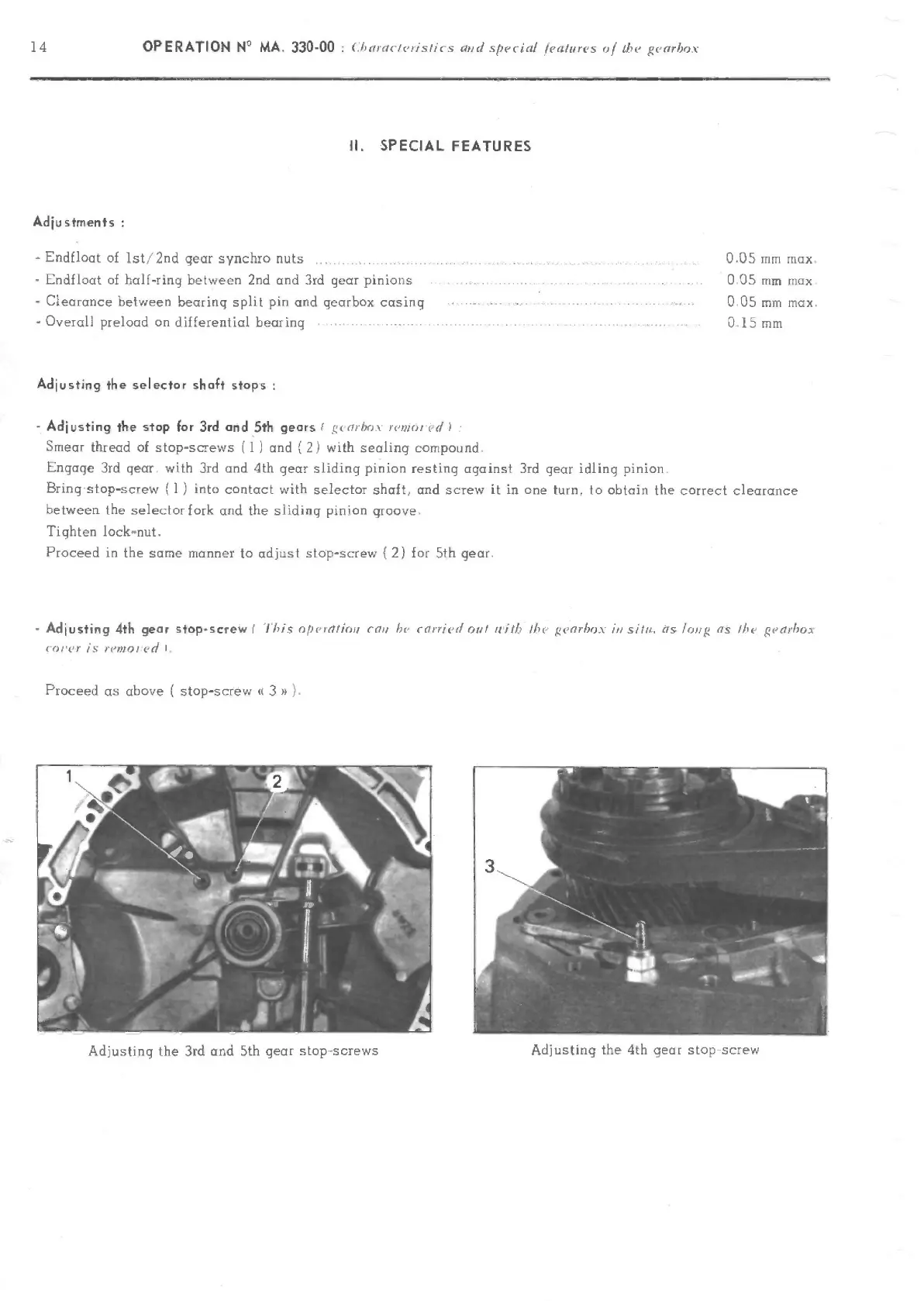

OPERATION
NL MA.
330-00
I
oaiicri
/,
(01(1 s()(/ (I/ f(lI11u
(
f f/
((ir/)0
..................................................................................
......................................................
...................................................
..............................................................................
II. SPECIAL
FEATURES
Ad
ju
s
tm en ts
-
Endfloat
of
J.st/2nd qear
synchro
nuts 0.05 mm
max.
-
Endfloat of
haif-ring between 2nd and 3rd gear
pinioris
0.05 mm
max
-
Clearance
between bearinq
split pm
and qearbox casing 0.05
mm max.
Overall
prelood
on differential
bearing
0.15 mm
Adjusting
the selector shaft stops
-
Adjusting
the stop for 3rd and
5th gears
(Jr/XIV r(n1)1(/
Smear
thread
of
stop-screws (1)
and
2)
with
sealinq
compound.
Enqaqe
3rd gear
with
3rd and 4th
gear
sliding pinion
resting against 3rd geer idling pinion.
Bringstop-screw
(
1
)
into contact with
selector shaft, and screw
it in ene
tum, to oblain the correct
clearance
between
the selectorfork
and the
sliding
pinion groove.
Tighten lock-nut.
Proceed in
the same manner to
adjust
stop-screw (2)
for
Sth qear.
-
Adjusting
4th gear stop-screw
IIi.s 0/4t/0JJ ((01 b(
rYU/ u
,// //1(' rho.v /11
1/tU.
(/1 Ii Us //'
,'arbu,v
'U,(r
/S ffliOfl('(f
1,
Proceed
as above
(
stop-sarew
3
»
Adjusting the 3rd ad 5th
gear stop
-screws
Adjusting the 4th
gear stop screw
