CITROEN CX - Page 234

Supplement
Manual 818-1 CORR
...
r+.
r.+
r..
C].
0.,
ö.,
ren
I"'
L8[$

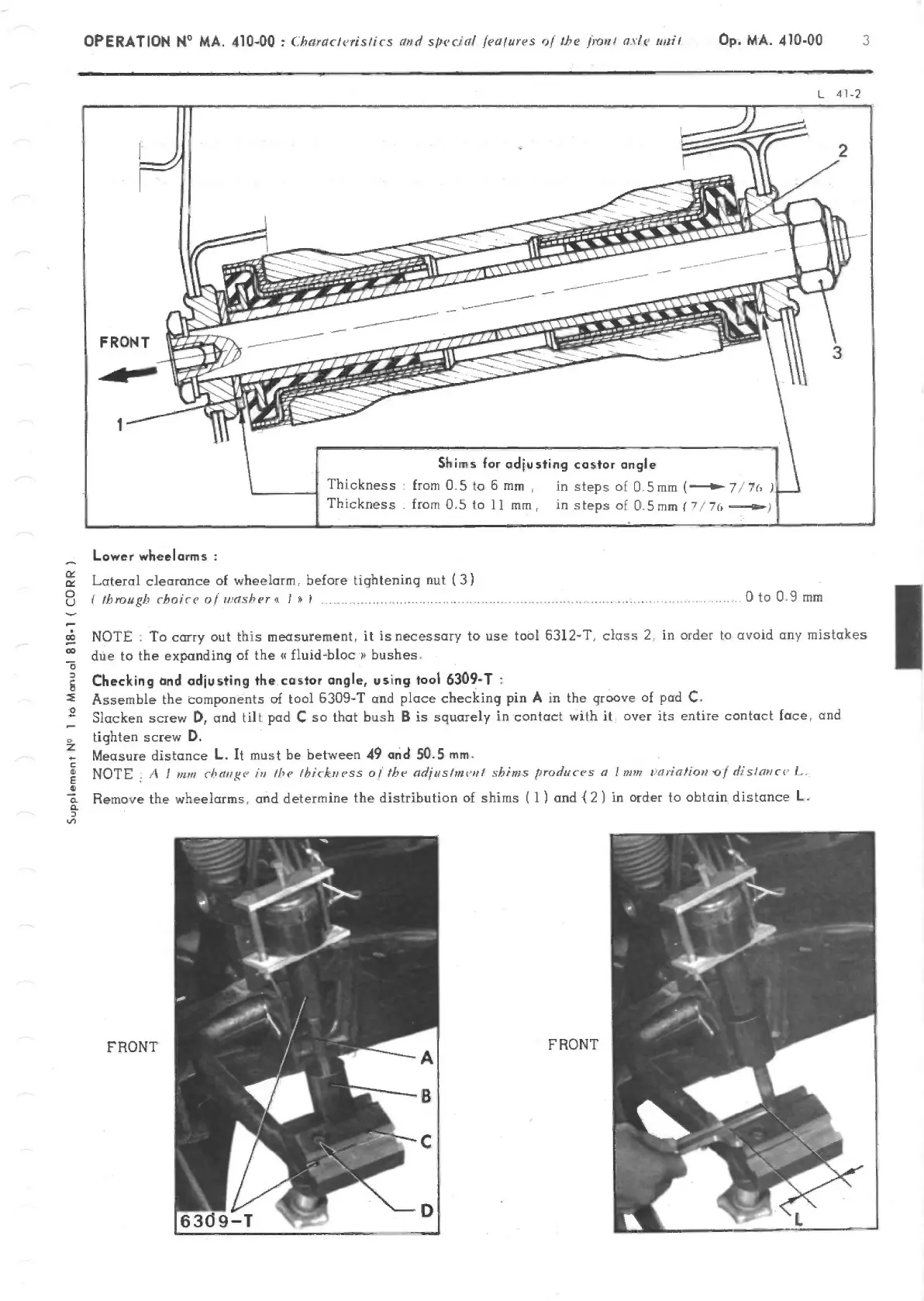

OPERATION
N°
HA. 410-00 :
Lbarac/er/slics
and
s/Jedal
/eaIiire.' ! the fro/
e/t uet/ Op. MÅ.
4T0-0O 3
...........................................................................................................
L
41-2
2
1
Shims for
odpusting castor ongle
Thickness
from 0.5
to
6 mm
in
steps
of
0.5 mm
(--
1
Thickness
from 0.5 to
11
mm
in
steps
of
0.5 mm
'
'
Lower wheelarms
Lateral clearance
of wheelarm,
before tightening nut
(3)
OtoO.9mm
(throiighrho/rro/u'asher
i
NOTE To
carry
out
this
measurernent
it
is necessary
to use tool 6312-T. class
2. in order
to
avoid
any mistakes
due
to the expanding
of the
«
fluid-bioc
»
bushes.
Checking
ond
adjusting
the
castor angle,
using
tool
6309-T
Assemble the
components of
toni 6309-T ond place checking
pm A in the
qroove of pcid C.
Slacken
screw
D,
and
tilt pad C
so
that bush B
is squarey
in contact with it
over its entire
contact face, and
tighten screw
D.
Measure
distance
L. It must be between 49
and 50.5 mm.
NOTE
4 1 me
c/'an' i the thic,j ess
o the adjusIm'!1/
.shirns produ res a 1 mm
,'driattOu
0/
/i tao c' L.
-a
Remove
the wheelarms,
and determine
the distribution
of shims
(1)
and '(2)
in order to obtairi
distance L.
FRONT
FRONT
