171.970UK, 171.971UK User Manual

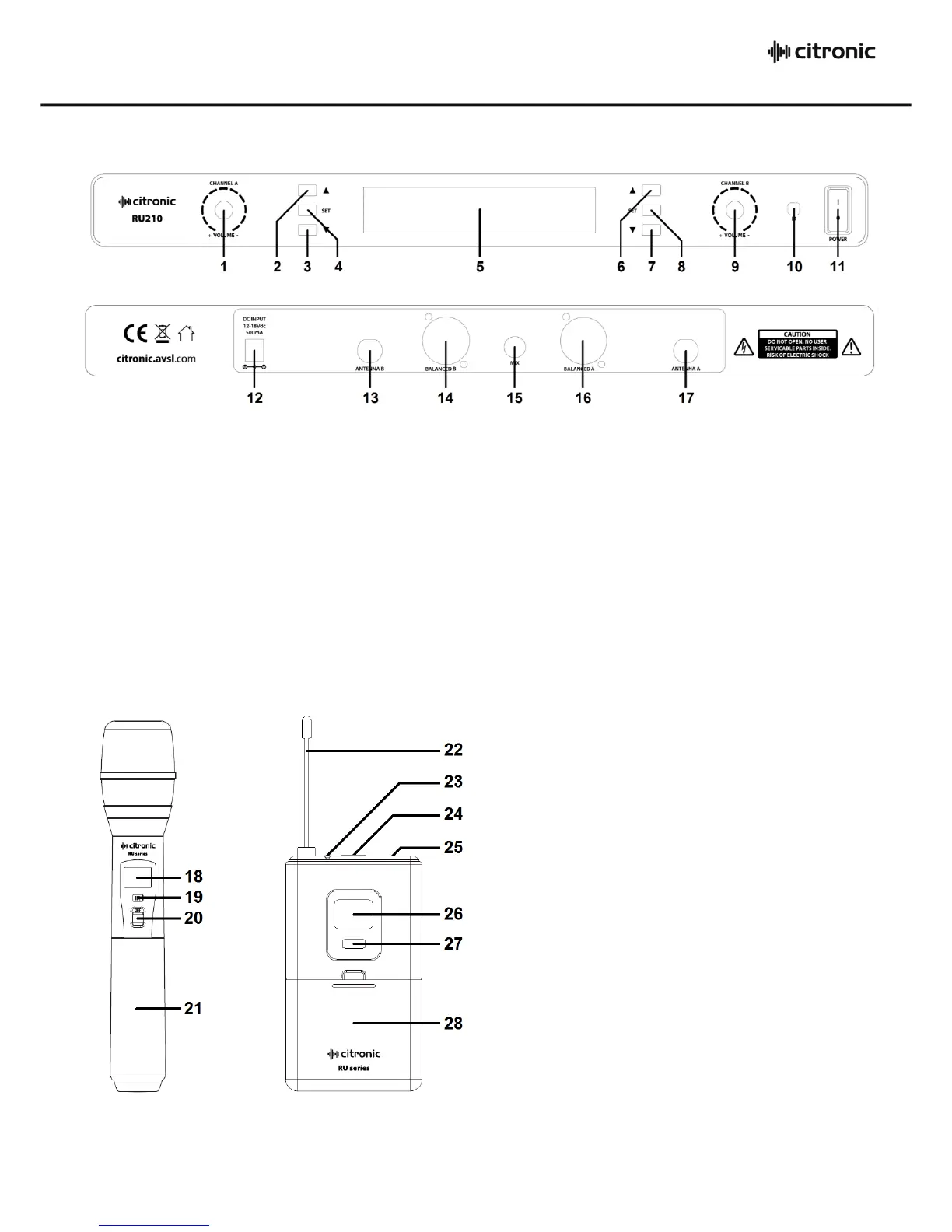

Receiver
1.
Channel A output volume control
10.
IR sync sender
2.
Channel A Group/Channel setting up
11.
Power on/off switch
3.
Channel A Group/Channel setting down
12.
DC power in jack (5.5 x 2.1mm)
4.
Channel A Group/Channel set
13.
Antenna B connector (BNC)
5.
LCD display
14.
Channel B balanced XLRM output
6.
Channel B Group/Channel setting up
15.
Mix A+B unbalanced 6.3mm jack output
7.
Channel B Group/Channel setting down
16.
Channel A balanced XLRM output
8.
Channel B Group/Channel set
17.
Antenna A connector (BNC)
9.
Channel B output volume control
Transmitters
18.
LCD display
19.
IR sync detector
20.
On/off switch
21.
Battery compartment
22.
Antenna
23.
On indicator
24.
Off – Mute – On switch
25.
3.5mm threaded jack socket
26.
LCD display
27.
On/off button
28.
Battery compartment
