Claas ARION 600 - Coupling the engine to the chassis; Preparation for work

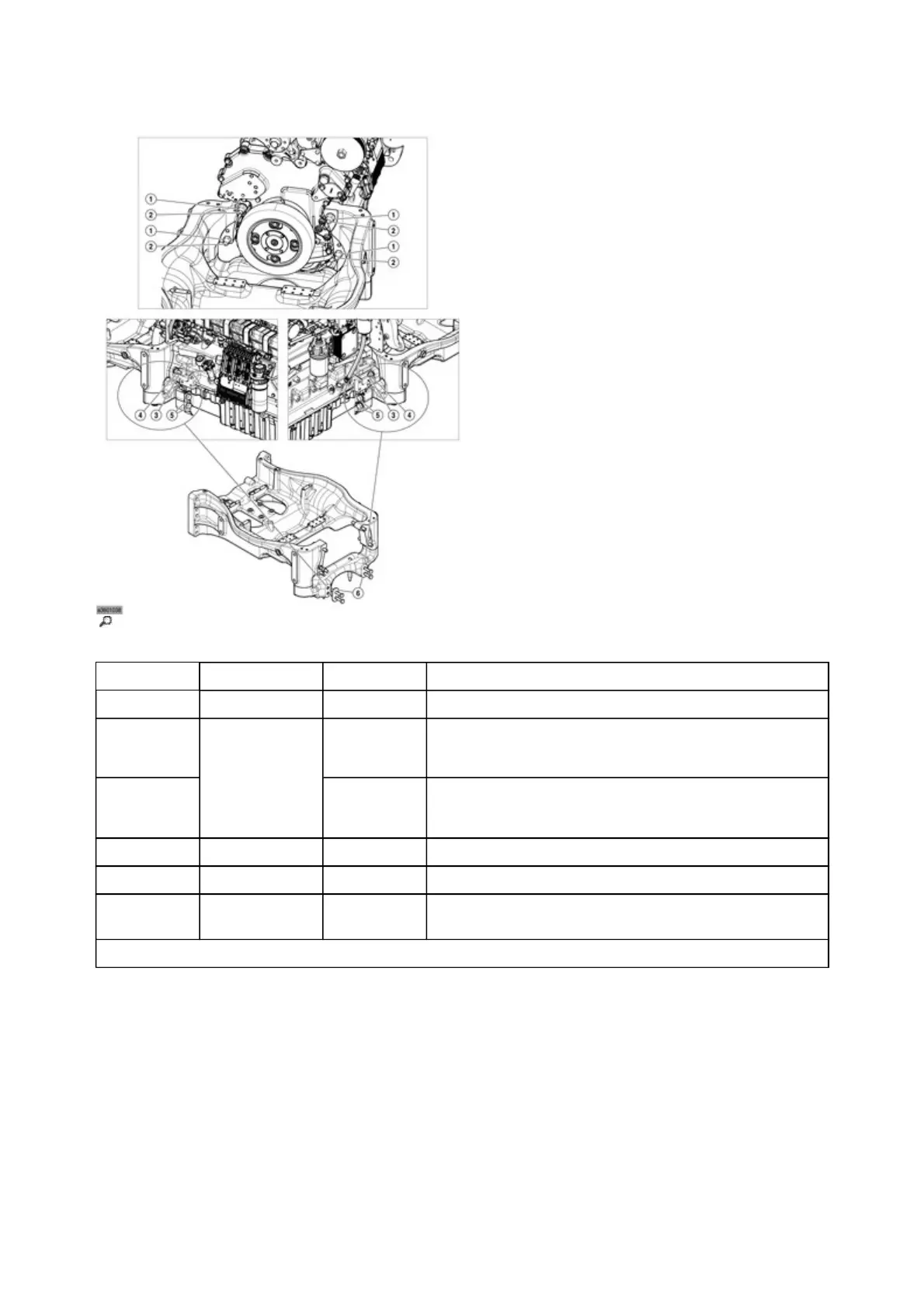

Coupling the engine to the chassis
Number Value CCN Note – Description
1 130 N·m + 40° — H, M16 x 2.00 CL 10.9 nut
2
50 ± 5 N·m
—
M16 x 2.00 L 80 CL 10.9 stud
Coat the studs with Loctite (638).
3 —
M14 x 1.50 L 82 CL 10.9 stud
Coat the studs with Loctite (638).
4 195 ± 20 N·m — H, M14 x 1.50 CL 10.9 nut
5 240 N·m — H, M14 x 1.50 L 80/34 CL 12.9 bolt
6
Without play
+ 0.1 mm
— Adjustment shim
For unspecified tightening torques, refer to the section entitled "Tightening torques".
Preparation for work
Consumables to be used
- Sealing and glue product:
Loctite (638) – 60 0136 585 0.
