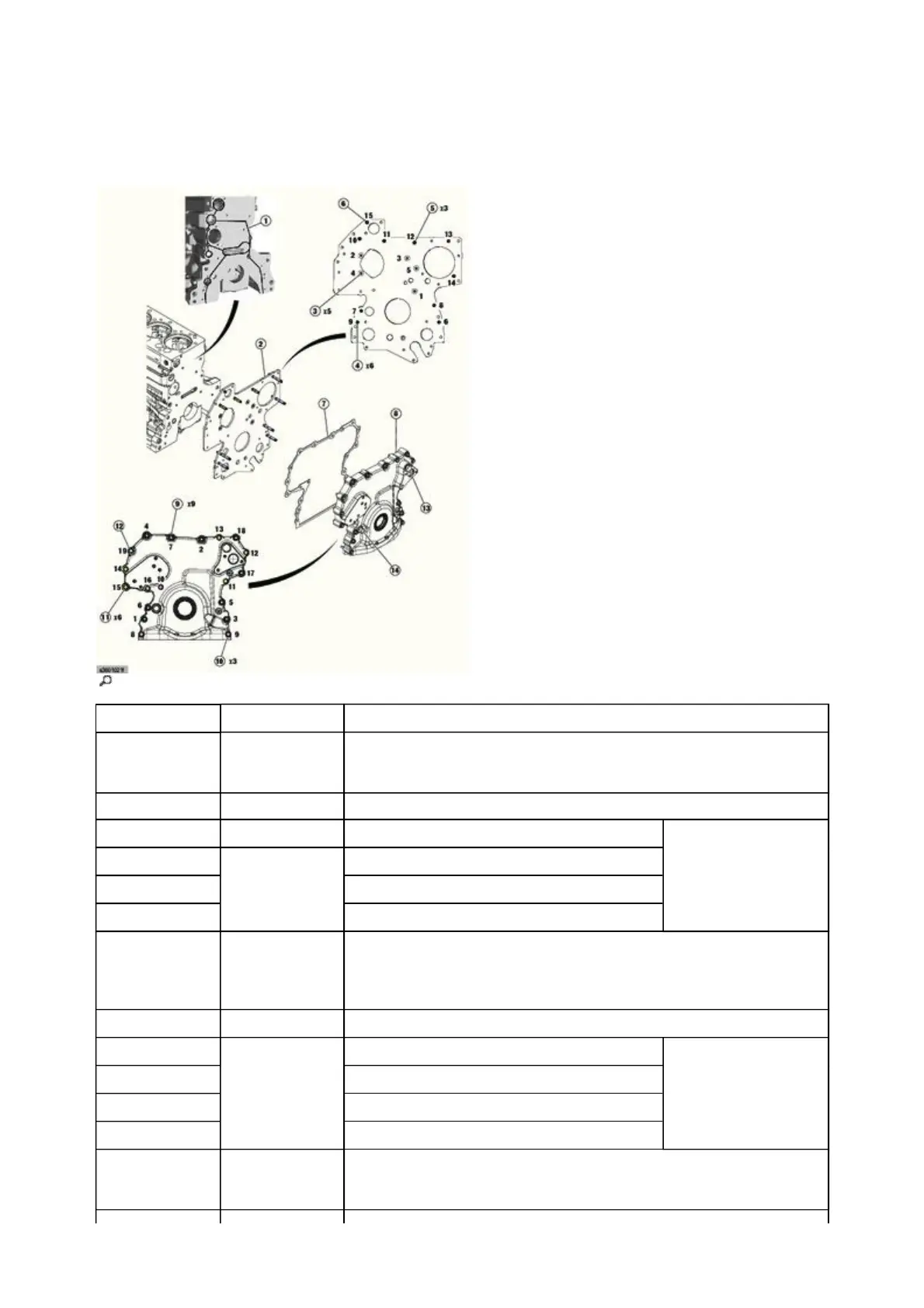

Timing cover
6 cylinders
Number Value Note – Description
1 —
Diagram for applying the flexible seal to the cylinder block.
Use Loctite (515).
2 8 kg Weight of front panel.
3 25 N.m Torx® milled head bolts.
Observe the tightening
order as illustrated.
4
35 N.m
M10 x 84 studs.
5 M10 x 68 studs.
6 Torx® bolt.
7 —
Timing cover seal.
The surfaces that will come into contact with the seal must be clean
and dry before fitting.
8 4 kg Weight of the timing cover
9
35 N.m
M10 nuts
Observe the tightening
order as illustrated.
10 M8 x 60 bolt
11 M8 x 50 bolt
12 M8 x 40 bolt
13 60 N.m
Access plug to the high-pressure pump pinion.
Use a new O-ring.
