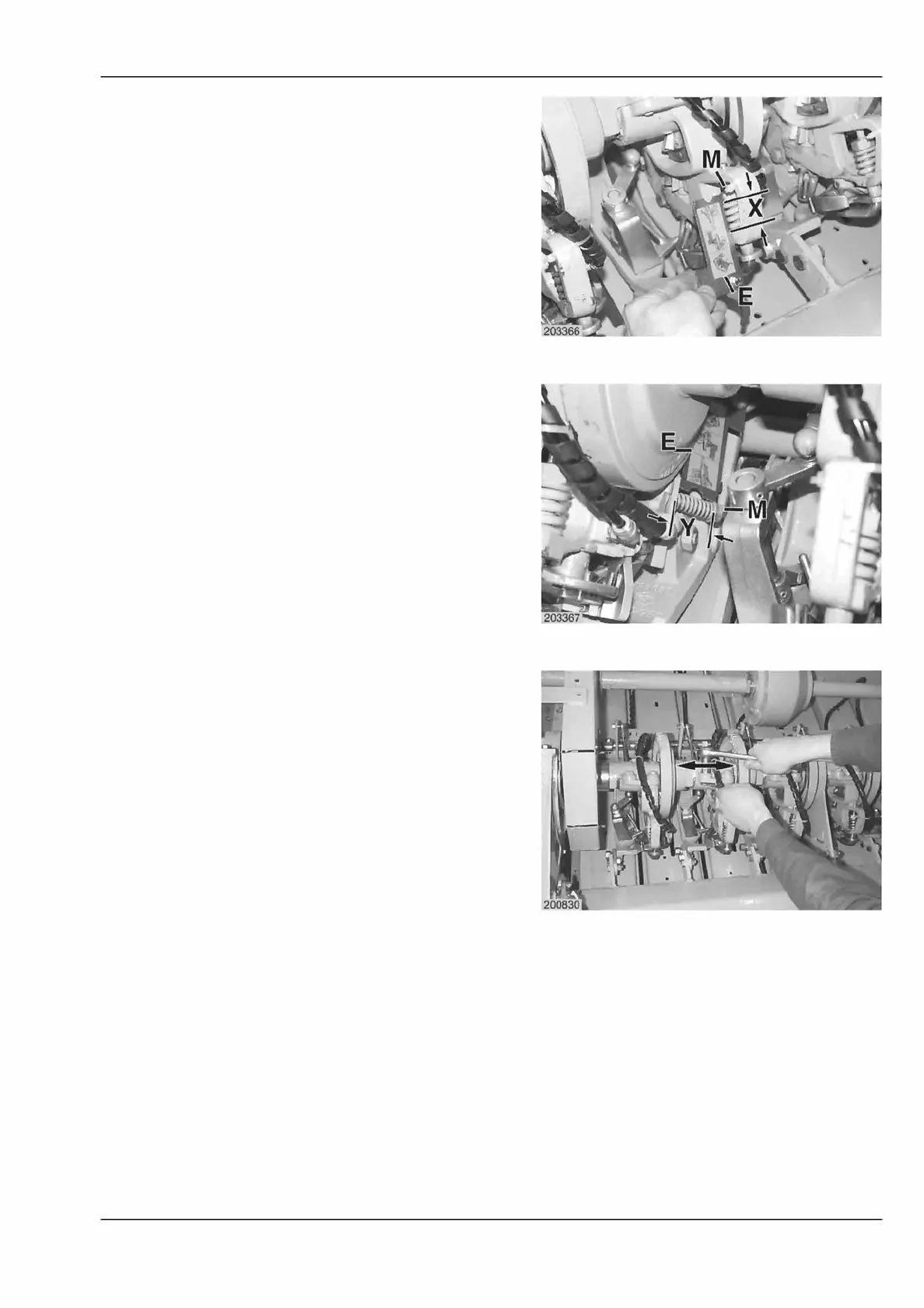

Adjusting the springs for the clamping plates
Check that the spring length, dimension (X) is 27 mm,
using the gauge (E), and if necessary correct it using
the nut (M).
(Fig. 14)
Adjusting the springs for the knotter hooks
Check that the spring length, dimension (Y) is 34 mm,
using the gauge (E), and if necessary correct it using
the nut (M).
(Fig. 15)
Setting up the play on the knotter pinion
PLEASE NOTE! Before making the settings, release
the spring for the clamping plate. After making the
settings, tension the spring in accordance with
Fig. 14, dimension (X).
The play in the knotter pinion can be checked at the
knotter hooks. There must be no play in the knotter
drive pinion and it must rest freely against the knotter
disc.
 make the settings, loosen the four fastening bolts
on the knotter frame. Use a pointed object
(screwdriver or similar) to press apart the upper and
lower halves of the knotter frame and at the same
time tighten up the four fastening bolts again.
(Fig. 16)
QUADRANT 2200 / 2200 RC
Bas setgs for e te  dee
14
15
16
1.7 / 7

Claas QUADRANT 2200 Specifications

General

Type	Square baler
Pick-up Width	2200 mm
Required Tractor Power	70-100 hp
Working Width	2200 mm
Pickup Width	2200 mm
Power Requirement	70-100 hp
