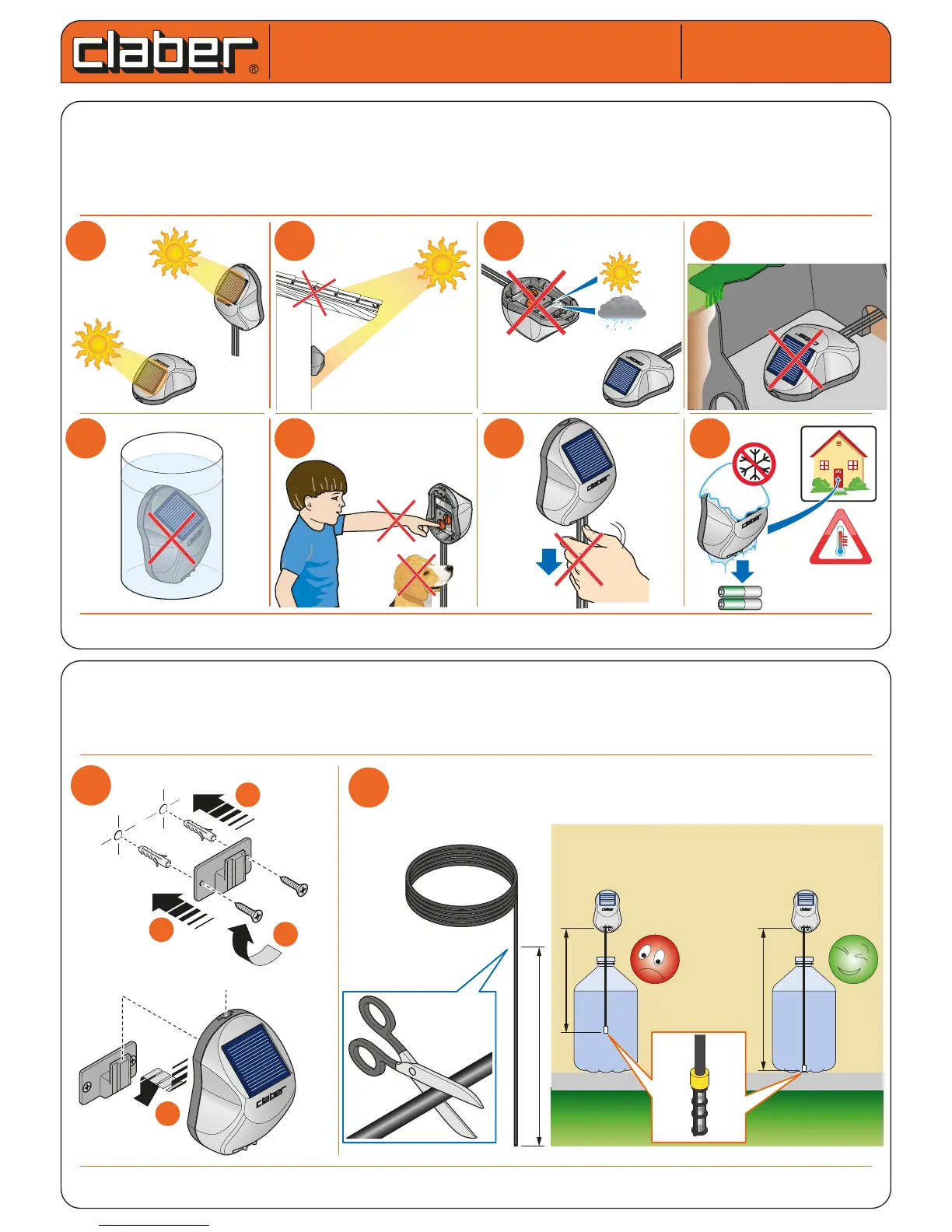

WARNINGS. The timer works both horizontally and vertically (wall-mounted) (1). It must be installed in a place where
the sunlight can reach it (2). It must be positioned with the photovoltaic panel facing upwards (3). It should not be
positioned in a valve box (4), immersed in liquid (5), used by children or be easily reachable by pets or other animals
(6). The hoses should not be pulled (7). In winter, the timer should be stored in a warm, dry place (8).
HOW TO INSTALL. If the water tank is outside, position it in a shaded place. Fix the bracket to the wall using the screws and plugs provi-
ded and hang the timer (1). To make the water suction hose, cut a length of feeding tube. Insert the lter in one end of the hose and
connect the other end to the timer. To make the system work properly, the hose end with the lter must touch the bottom of the water
container (“OK”). To do this, measure the “L” distance between the timer and the bottom of the container, then cut the hose (2).
