Clarion CDC605 - Page 12

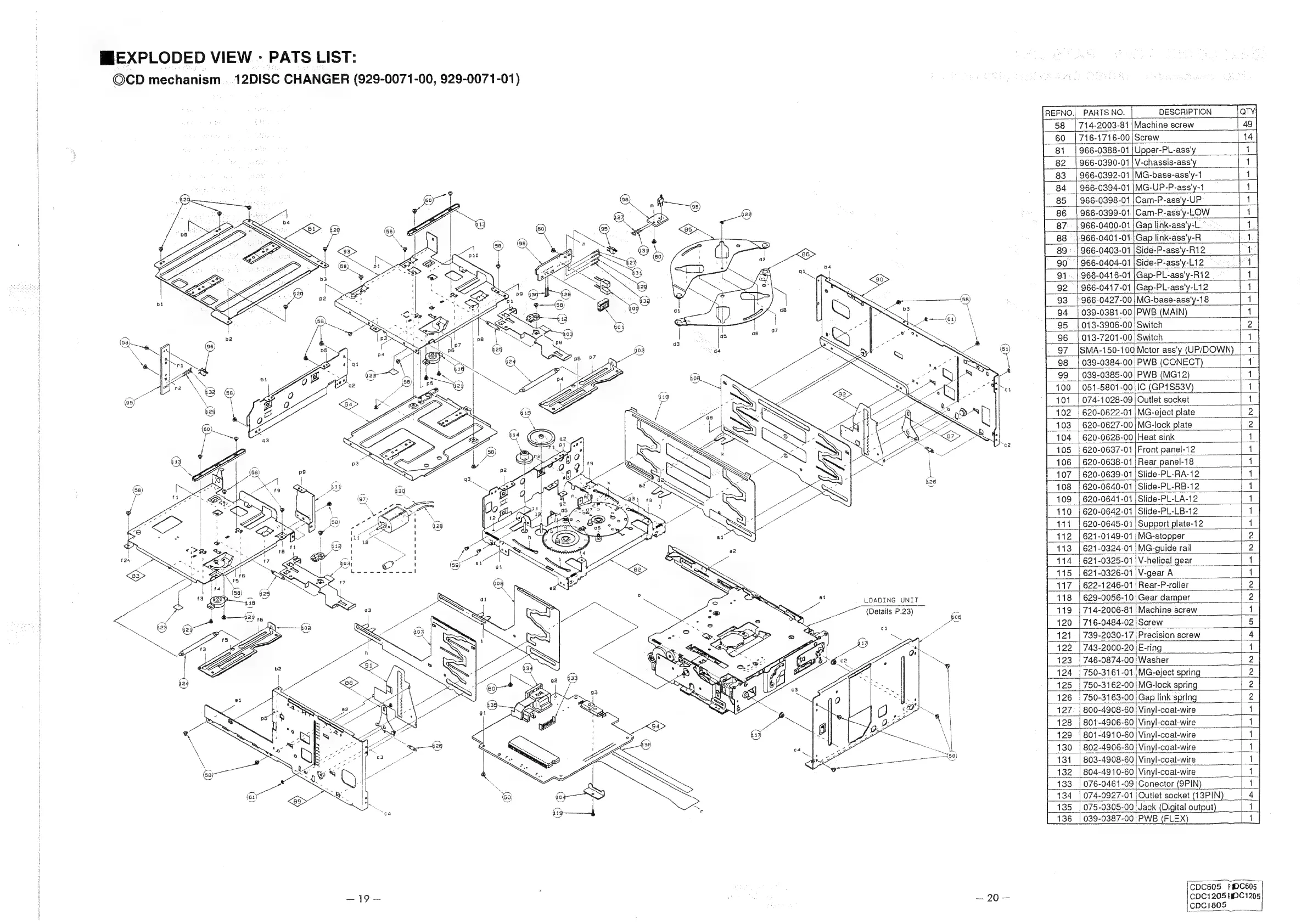

MIEXPLODED VIEW - PATS LIST:
©CD mechanism 12DISC CHANGER (929-0071-00, 929-0071-01)
L240)
LOADING UNIT
(Ca
PARTS NO.
DESCRIPTION
714-2003-81
Machine screw
716-1716-00 | Screw
966-0388-01
Upper-PL-ass'y
966-0390-01
\V-chassis-ass'y _
966-0392-01 |MG-base-ass'y-1
966-0394-01
MG-UP-P-ass'y-1
~ | 966-0398-01
Cam-P-ass'y-UP
966-0399-0
ui
Cam-P-ass'y-LOW
| 966-0400-01
Gap link-ass'y-L
966-0401-01
Gap link-ass'y-R
966-0403-01
Side-P-ass'y-R12
966-0404-01 | Side-P-ass'y-L12
Lol Sy
966-0416-01
Gap-PL-ass'y-Ri2
966-0417-01
Gap-PL-ass'y-L12
3 | 966-0427-00
[MG-base-ass'y-1 8
039-0381 -00
PWB (MAIN)
013-3906-00
Switch
013-7201-00
Switch
SMA-150-100| Motor ass'y (UP/DOWN)
039-0384-00
PWB (CONECT)
| .039-0385-00
PWB (MG12)
051-5801-00
IC (GP1S53V)
074-1028-09
Outlet socket
=
620-0622-01 |
MG-eject plate
620-0627-00
MG-lock plate
620-0628-00
Heat sink
620-0637-01
Front panel-12
620-0638-01
Rear panel-18 _
620-0639-01
Slide-PL-RA-12
|620-0640-01
Slide-PL-RB-12
620-0641 -01
Slide-PL-LA-12
620-0642-01
Slide-PL-LB-12
620-0645-01
Support plate-12
621-0149-01
MG-stopper
621-0324-01
MG-guide rail
621-0325-01
|V-helical gear
621-0326-01
V-gear A
622-1246-01
Rear-P-roller
|
po] — |— tp tno fo js fa ff | a] a ft fp ff a ms st ef es fs es es est
629-0056-10
Gear damper
714-2006-81
Machine screw
716-0484-02
Screw
=a FS
739-2030-17
Precision screw
122 | 743-2000-20
E-ring
|
123 |746-0874-00
Washer
124 | 750-3161-01
MG-eject spring
125 | 750-3162-00|MG-lock spring
126 | 750-3163-00
Gap link spring
127. | 800-4908-60
Vinyl-coat-wire
128 | 801-4906-60
Vinyl-coat-wire
129 | 801-4910-60
Vinyl-coat-wire
130 | 802-4906-60
Vinyl-coat-wire
131 | 803-4908-60
Vinyl-coat-wire
132 | 804-4910-60
Vinyl-coat-wire
133 | 076-0461-09
Conector (QPIN)
134 | 074-0927-01
Outlet socket (13PIN)
135 | 075-0305-00
Jack (Digital output)
136 | 039-0387-00
PWB (FLEX
/cpc60s }IDC605
| CDC120512C1205
|CDC1805
