Clarion CDC605 - Page 13

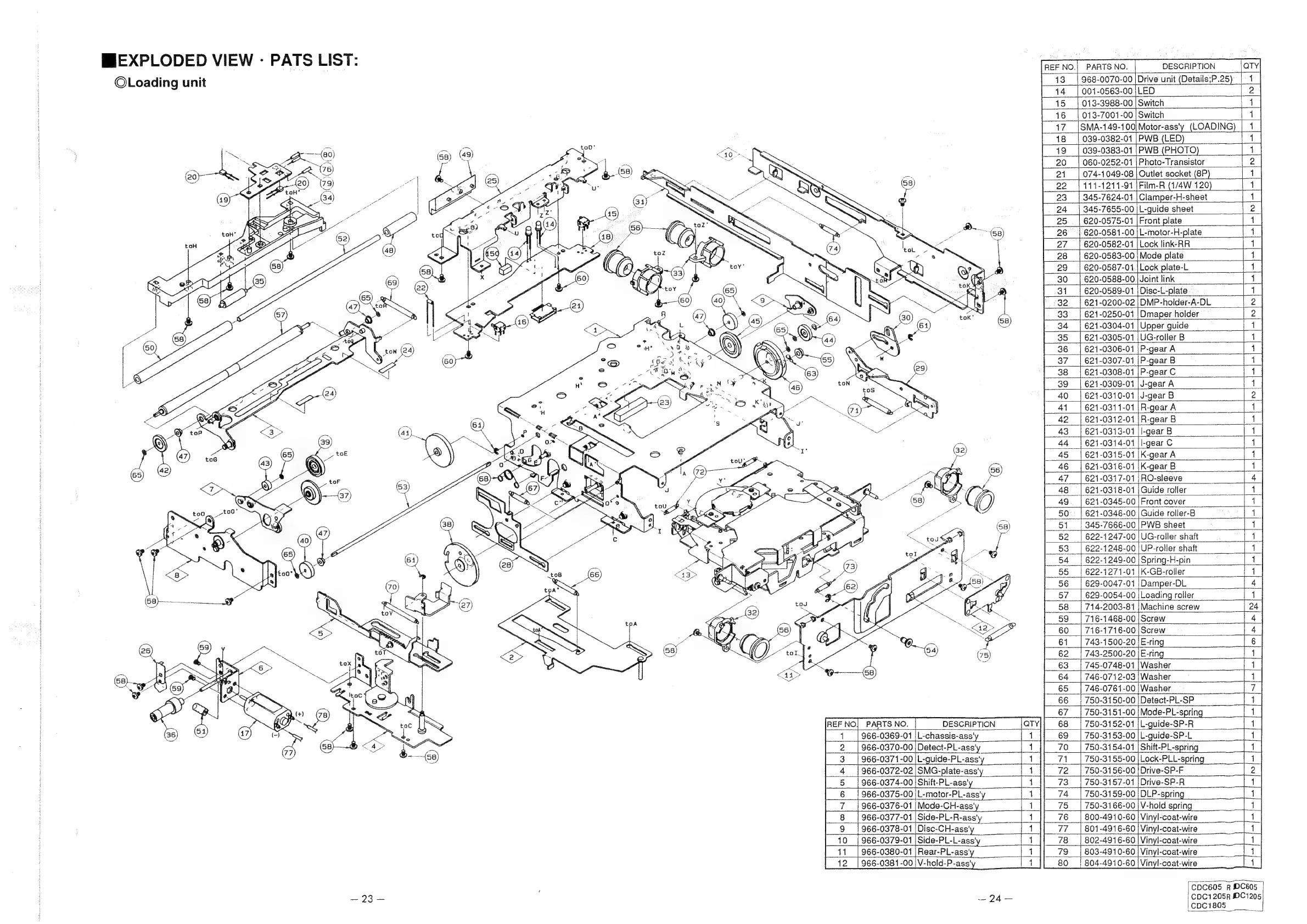

MEXPLODED VIEW - PATS LIST:
©Loading unit
PARTS NO.
DESCRIPTION
968-0070-00
Drive unit (Details;P.25)
001-0563-00
LED
013-3988-00
Switch
013-7001-00
Switch
039-0382-01
SMA-149-100| Motor-ass'y (LOADING)
PWB (LED)
039-0383-01
PWB (PHOTO)
060-0252-01
Photo-Transistor
074-1049-08
Outlet socket (8P)
~[444-1211-91 |
Film-R (1/4W 120)
345-7624-01 | Clamper-H-sheet
| 345-7655-00
L-guide sheet
620-0575-01
Front plate
620-0581 -00
L-motor-H-plate
620-0582-01
ten Bien
Lock link-RR
620-0583-00
Mode plate
620-0587-01
Lock plate-L
t——+
| 620-0588-00
Joint link
620-0589-01
Disc-L-plate
621-0200-02
DMP-holder-A-DL
621-0250-01 |
Dmaper holder
621-0304-01
|Upper guide
621-0305-01
UG-roller B
621-0306-01
P-gear A
621-0307-01
P-gear B
|
621-0308-01
P-gear C
621-0309-01
J-gear A
621-0310-01 |
J-gear B
621-0311-01
R-gear A
621-0312-01
|R-gear B
621-0313-01
l-gear B
621-0314-01
l-gear C
621-0315-01 |K-gear A
621-0316-01
K-gear B
621-0317-01
RO-sleeve
621-0318-01
Guide roller
621-0345-00
Front cover
621-0346-00
Guide roller-B
345-7666-00
PWB sheet
622-1247-00
UG-roller shaft
622-1248-00
UP-roller shaft
622-1249-00
Spring-H-pin
622-1271-01
K-GB-roller
| 629-0047-01
Damper-DL
aie
629-0054-00
Loading roller
Rialajojajsjsiszjejele|ajel|]|aj]j—lainj]|]j] jaja] [rj js fa] js fa ja ]s pe sisi iy js fs jays pe
\
_|714-2003-81 |Machine screw
| 716-1468-00 |Screw
716-1716-00 |Screw
| 743-1500-20|E-ring
BE
+
ee ee
PARTS NO.
DESCRIPTION
743-2500-20
E-ring
745-0748-01
Washer
+1
|
746-0712-03
Washer
746-0761 -00
Washer
750-3150-00
Detect-PL-SP
| 750-3151-00
Mode-PL-spring
| 750-3152-01
L-guide-SP-R
966-0369-01
L-chassis-ass'y
750-3153-00
L-guide-SP-L
966-0370-00
Detect-PL-ass'y
750-31 54-04 Shift-PL-spring
966-0371 -00
L-guide-PL-ass'y
750-3155-00
Lock-PLL-spring _
966-0372-02
SMG-plate-ass'y_
750-3156-00 Drive-SP-F
966-0374-00
966-0375-00
Shift-PL-ass'y _
750-3157-01 Drive-SP-R
L-motor-PL-ass'y
750-3159-00
DLP-spring
966-0376-01
Mode-CH-ass'y
750-3166-00
V-hold spring
966-0377-01
Side-PL-R-ass'y
800-4910-60
Vinyl-coat-wire
[966-0378-01
Disc-CH-ass'y
801-4916-60
Vinyl-coat-wire
966-0379-01
802-4916-60
Vinyl-coat-wire
966-0380-01
Side-PL-L-ass'y
Rear-PL-ass'y _
803-4910-60
Vinyl-coat-wire
966-0381 -00
V-hold-P-ass'
204
804-4910-80
Vinyl-coat-wire
i
apa fe ja fo fe fa fm fp fe fo fas fa fa fe fae
CDC605 RDCEOS |
CDC1205R 9C1205
coc180s
