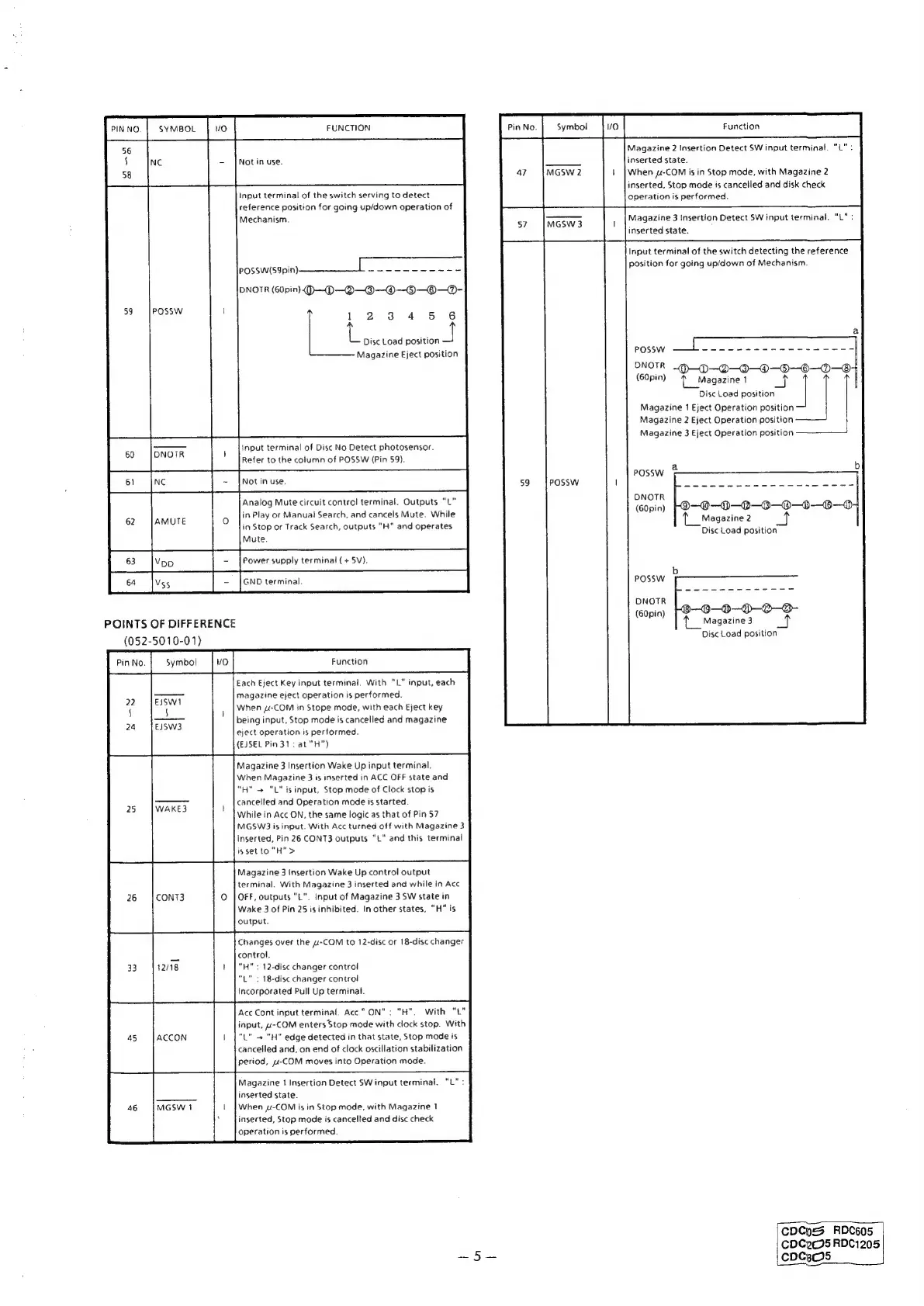

FUNCTION
Not in use.
Input terminal of the switch serving to detect
reference position for going up/down operation of
Mechanism.
12 3 4 5 6
i Disc Load position
Magazine Eject position
Input terminal of Disc No Detect photosensor.
Refer to the column of POSSW (Pin 59).
Analog Mute circuit control terminal. Outputs “L"
in Play or Manual Search, and cancels Mute. While
i a
in Stop or Track Search, outputs "H” and operates
62 AMUTE
Mute.
63 [vo | = | Power supply terminal (+ 5V).
cs ee
POINTS OF DIFFERENCE
(052-5010-01)
Prove] sme
Each Eject Key input terminal. With "L" input, each
magazine eject operation is performed.
When 4-COM in Stope mode, with each Eject key
being input, Stop mode is cancelled and magazine
eject operation is performed.
(EJSEL Pin 31: at "H")
EJSW1
§
EJSW3
Magazine 3 Insertion Wake Up input terminal.
When Magazine 3 is inserted in ACC OFF state and
"H" + "L" isinput, Stop mode of Clock stop is
cancelled and Operation mode is started
While in Acc ON, the same logic as that of Pin 57
MGSW3 is input. With Acc turned off with Magazine 3
inserted, Pin 26 CONT3 outputs “L" and this terminal
isset to “H" >
Magazine 3 insertion Wake Up control output
terminal. With Magazine 3 inserted and while in Acc
OFF, outputs "L". input of Magazine 3 SW state in
Wake 3 of Pin 25 is inhibited. tn other states, "H" is
output.
Changes over the “-COM to 12-disc or 18-disc changer
control.
“H": 12-disc changer control
“L" 1 1B-disc changer control
incorporated Pull Up terminal.
Acc Cont input terminal. Acc" ON": “H". With “L"
input, “-COM enters Stop mode with clock stop. With
"L" + "H" edge detected in that state, Stop mode is
cancelled and, on end of clock oscillation stabilization
period, “-COM moves into Operation mode.
Magazine 1 Insertion Detect SW input terminal. “L":
inserted state.
When 4-COM is in Stop mode, with Magazine 1
inserted, Stop mode is cancelled and disc check
operation is performed.
Trane]
Magazine 2 Insertion Detect SW input terminal. “L" :
inserted state.
When 4-COM is in Stop mode, with Magazine 2
inserted, Stop mode is cancelled and disk check
operation is performed.
Magazine 3 Insertion Detect SW input terminal. "L":
inserted state.
Input terminal of the switch detecting the reference
position for going up/down of Mechanism.
POSSW
ONOTR
(60pin)
~O-—0—-@—O—@—-O—-8—O—®:
*_Magazine 1 _t |
Disc Load position
Magazine 1 Eject Operation position
Magazine 2 Eject Operation position
Magazine 3 Eject Operation position
a
POSSW
2-8-8990
Magazine 2 _t
Disc Load position
ONOTR
(60pin)
POSSW
60pi
keopin f__ Magazine 3
Disc Load position
cpCyps RDCE605
CDC25 RDC1205
cDoC8O5
