Clarion DRB3675 User Manual

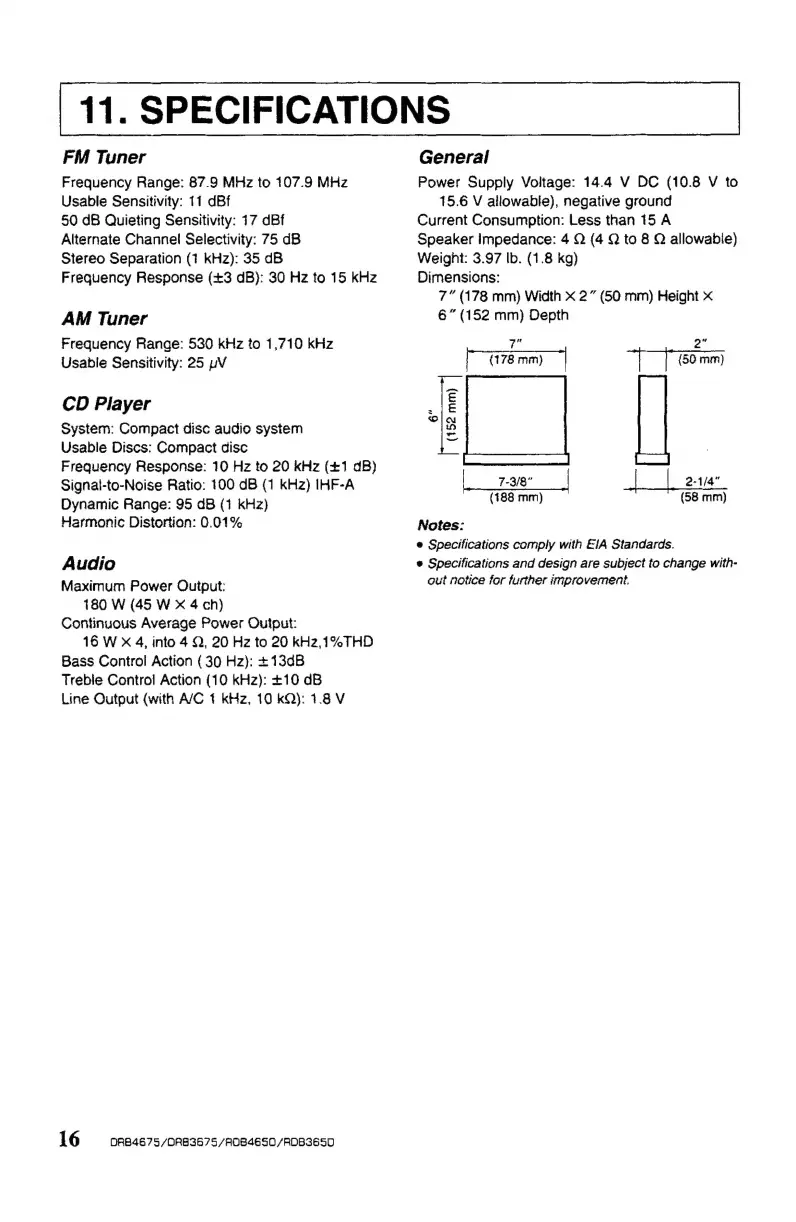

11. SPECIFICATIONS
Fi Tuner
Frequency Range: 87.9 MHz to 107.9 MHz
Usable Sensitivity: 11 dBf
50 dB Quieting Sensitivity: 17 dBf
Alternate Channel Selectivity: 75 dB
Stereo Separation (1 kHz): 35 dB
Frequency Response (+3 dB): 30 Hz to 15 kHz
AWM Tuner
Frequency Range: 530 kHz to 1,710 kHz
Usable Sensitivity: 25 pV
CD Player
System: Compact disc audio system
Usable Discs: Compact disc
Frequency Response: 10 Hz to 20 kHz (+1 dB)
Signai-to-Noise Ratio: 100 dB (1 kHz) IHF-A
Dynamic Range: 95 dB (1 kHz)
Harmonic Distortion: 0.01%
Audio
Maximum Power Output:
180 W (45 W X 4 ch)
Continuous Average Power Output:
16 W X 4, into 4 Q, 20 Hz to 20 kH2,1% THD
Bass Control Action (30 Hz): +13dB
Treble Control Action (10 kHz): +10 dB
Line Output (with A/C 1 kHz, 10 kQO): 1.8V
16 DRB4675 /ORB3675/RO846S0/RDB3650
General
Power Supply Voltage: 14.4 V DC (10.8 V to
15.6 V allowable), negative ground
Current Consumption: Less than 15 A
Speaker impedance: 4 Q (4 Q to 8 Q allowable)
Weight: 3.97 Ib. (1.8 kg)
Dimensions:
7” (178 mm) Width x 2” (50 mm) Height <
6” (152 mm) Depth
7"
2°
| {178 mm) | | 60 me)
|
| | 2-1/4"
(58 mm)
6
(152 mm)
| 7-3/8" |
(188 mm)
Notes:
e Specifications comply with EIA Standards.
e Specifications and design are subject to change with-
out notice for further improvement.

Clarion DRB3675 Specifications

General

Brand	Clarion
Model	DRB3675
Category	CD Player
Language	English
