Clarion DRB4475R User Manual

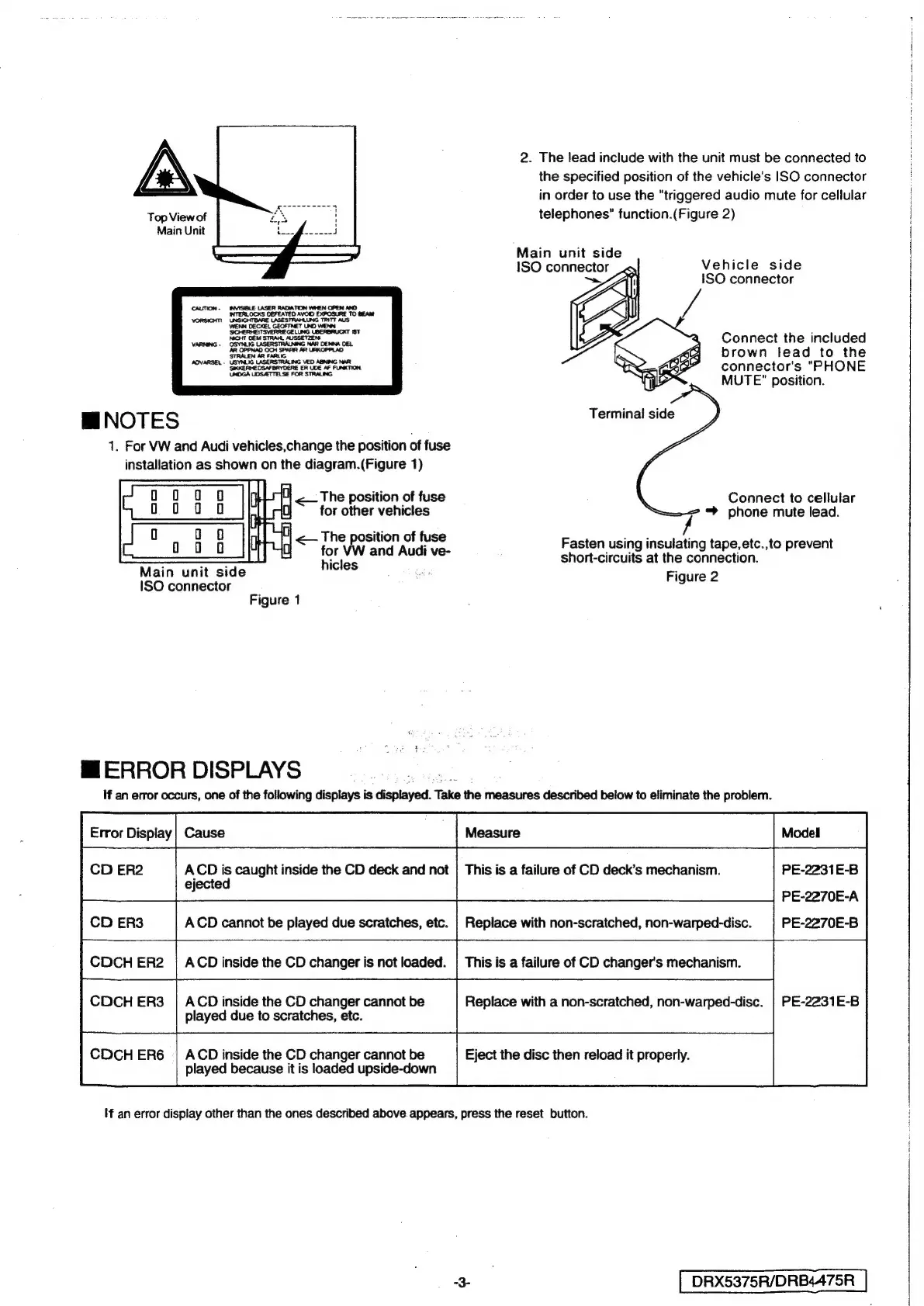

Top View of
Main Unit
MNOTES
1. For VW and Audi vehicles,change the position of fuse
installation as shown on the diagram.(Figure 1)
The position of fuse
for other vehicles
<— The position of fuse
for VW and Audi ve-
hicles
Main unit side
2. The lead include with the unit must be connected to
Main unit side |
ISO connector
~~
the specified position of the vehicle's ISO connector
in order to use the "triggered audio mute for cellular
telephones" function.(Figure 2)
Vehicle side
ISO connector
Connect the included
brown lead to the
connector's "PHONE
MUTE" position.
Terminal side
Connect to cellular
= phone mute lead.
/
Fasten using insulating tape,etc.,to prevent
short-circuits at the connection.
Figure 2
ISO connector
Figure 1
li ERROR DISPLAYS
Hf an error occurs, one of the following displays is displayed. Take the measures described below to eliminate the problem.
CD ER2 ACD : caught inside the CD deck and not | This is a failure of CD deck’s mechanism. PE-2231E-B
ejecte
: PE-2270E-A
CD ER3 ACD cannot be played due scratches, etc. | Replace with non-scratched, non-warped-disc. PE-2270E-B
CDCH ER2 | ACD inside the CD changer is not loaded. | This is a failure of CD changer's mechanism.
CDCH ER3 | ACD inside the CD changer cannot be Replace with a non-scratched, non-warped-disc.
played due to scratches, etc.
CDCHER6 | ACD inside the CD changer cannot be Eject the disc then reload it properly.
played because it is loaded upside-down
Hf an error display other than the ones described above. appears, press the reset button.
-3- DRX5375R/DRB4475R

Clarion DRB4475R Specifications

General

Type	CD Receiver
Channels	4
Tuner	FM/AM
Preamp Outputs	2-channel
Aux Input	Yes
Signal-to-Noise Ratio	90dB
CD Compatibility	CD-R/RW
