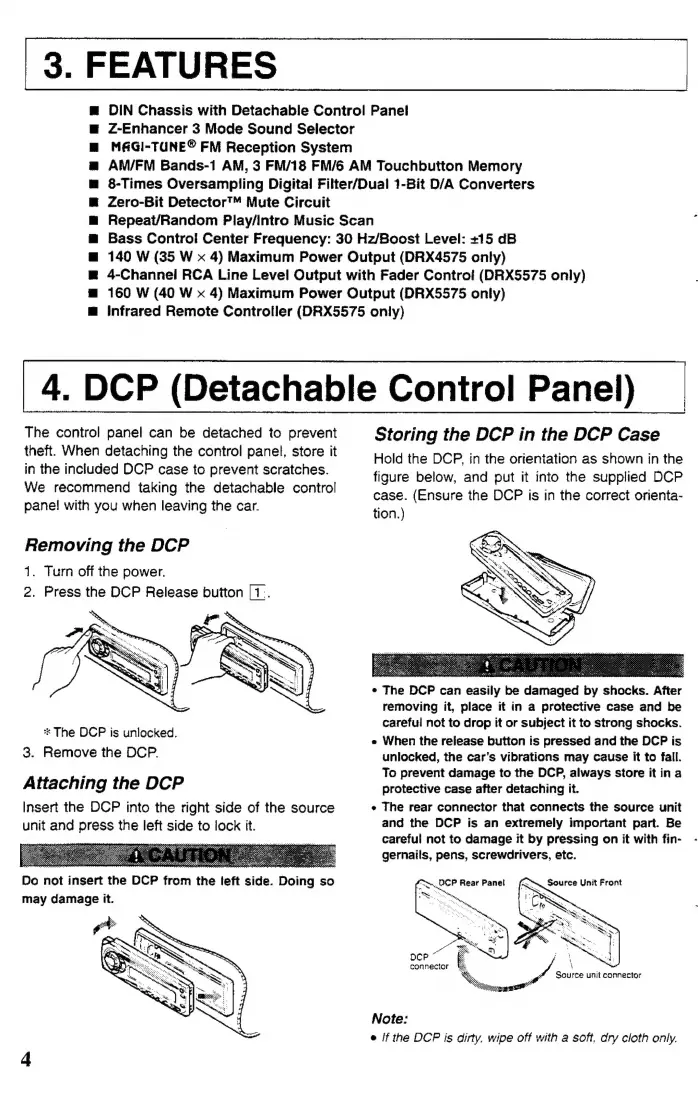

3. FEATURES
DIN Chassis with Detachable Control Panel
Z-Enhancer 3 Mode Sound Selector
M&GI-TUNE® FM Reception System
AM/FM Bands-1 AM, 3 FM/18 FM/6 AM Touchbutton Memory
8-Times Oversampling Digital Filter/Dual 1-Bit D/A Converters
Zero-Bit Detector™ Mute Circuit
Repeat/Random Play/Intro Music Scan
Bass Control Center Frequency: 30 Hz/Boost Level: +15 dB
140 W (35 W x 4) Maximum Power Output (DRX4575 only)
4-Channel RCA Line Level Output with Fader Contro! (DRX5575 only)
160 W (40 W x 4) Maximum Power Output (DRX5575 only)
Infrared Remote Controller (DRX5575 only)
4. DCP (Detachable Control Panel)
The control panel can be detached to prevent Storing the DCP in the DCP Case
ae silted Sra permed bebe pate it Hold the DCP, in the orientation as shown in the
" Sere aa oa sites ge ie figure below, and put it into the supplied DCP
EOC Nand ie, Beeeneor Sone case. (Ensure the DCP is in the correct orienta-
pane! with you when leaving the car. tion.)
Removing the DCP
1. Turn off the power.
2. Press the DCP Release button [1..
¢ The DCP can easily be damaged by shocks. After
removing it, place it in a protective case and be
careful not to drop it or subject it to strong shocks.
« When the release button is pressed and the DCP is
* The DCP is unlocked.
3. Remove the DCP. unlocked, the car’s vibrations may cause it to fall.
. To prevent damage to the DCP, always store it in a
Attachi ng the DCP protective case after detaching it.
Insert the DCP into the right side of the source ¢ The rear connector that connects the source unit
unit and press the left side to lock it. and the DCP is an extremely important part. Be
careful not to damage it by pressing on it with fin-
gernails, pens, screwdrivers, etc.
Do not insert the DCP from the left side. Doing so
may damage it.
DCP i
connector Ex \
i Source unit connector
Note:
e /f the DCP is dirty. wipe off with a soft, dry cloth only.
