Clarion MAX983HD Service Manual

MAX983HD
- 2 -
* is for legal or rightholder-authorized copying only.
Don't steal music.
iPod is a trademark of Apple Computer, Inc., registered
in the U.S. and other countries.
* We cannot supply PWB with component parts in prin-
ciple. When a circuit on PWB has failure, please repair it
by component parts base.
Parts which are not mentioned in service manual are
not supplied.
* Specifications and design are subject to change without
notice for further improvement.
SPECIFICATIONS
Navigation system
HDD: 30GB
GPS receiving frequency:
1575.42MHz, C/A Code
Sensibility: -130 dBm or better
Number of GPS channels:
15 channels
FM tuner section
Frequency range: 87.5MHz to 108.0MHz
Usable Sensitivity: 9dBf
50dB quieting sensitivity:
15dBf
Alternate channel selectivity:
70dB
Stereo separation: 32dB (1kHz)
Frequency response: 30Hz to 15kHz (-3/+3dB)
AM tuner section
Frequency range: MW;531kHz to 1602kHz
LW;153kHz to 279kHz
Usable sensitivity: 28 dBuV
DVD player section
System: Digital versatile disc system with
CDDA capable
Usable discs: DVD video disc, Compact disc
Frequency response: 20Hz to 20kHz(CD)(-1/+1dB /-2dB)
Signal to noise ratio: 80dB (1kHz)
Dynamic range: 80dB (1kHz)
Distortion: 0.05%
MP3 / WMA section
Logical Format: ISO9660 level1, 2
JOLIET or Romeo
MP3
Sampling rate(kHz): MPEG-1; 32, 44.1, 48
MPEG-2; 16, 22.05, 24
Bit rate(kbps): MPEG-1; 32 to 320 /VBR
MPEG-2; 8 to 160 /VBR
WMA
Sampling rate(kHz): 22.05, 32, 44.1, 48
Bit rate(kbps): 32,48,64,80,96,128,160,192
Audio amplifier section
Maximum power output:
200W(50W x 4)
Output power: 27W x 4(DIN 45324, +B = 14.4 V)
Speaker impedance: 4ohm (4 to 8ohm allowable)
Audio/Video input section
Audio input: 130+/-60mVrms(10kohm or more)
Video input: 1.0+/-0.2Vp-p(75ohm)
Video output section
Video output: 1.0+/-0.2Vp-p(75ohm)
LCD monitor section
Screen size(mm): 156.2(W) x 82.3(H)
7-inch wide type
Display method: Transmission type TN liquid crystal
Drive method: TFT active matrix
Pixels: 336,960(480 x 3[RGB] x 234)
General
Power source voltage: 14.4 V DC
(10.8 to 15.6 V allowable)
Ground: Negative
Current consumption: 4.0A(at 1W)
Auto antenna rated current:
500mA less
Dimensions(mm): 178(W) x 100(H) x 162(D)
Weight: 3.0kg

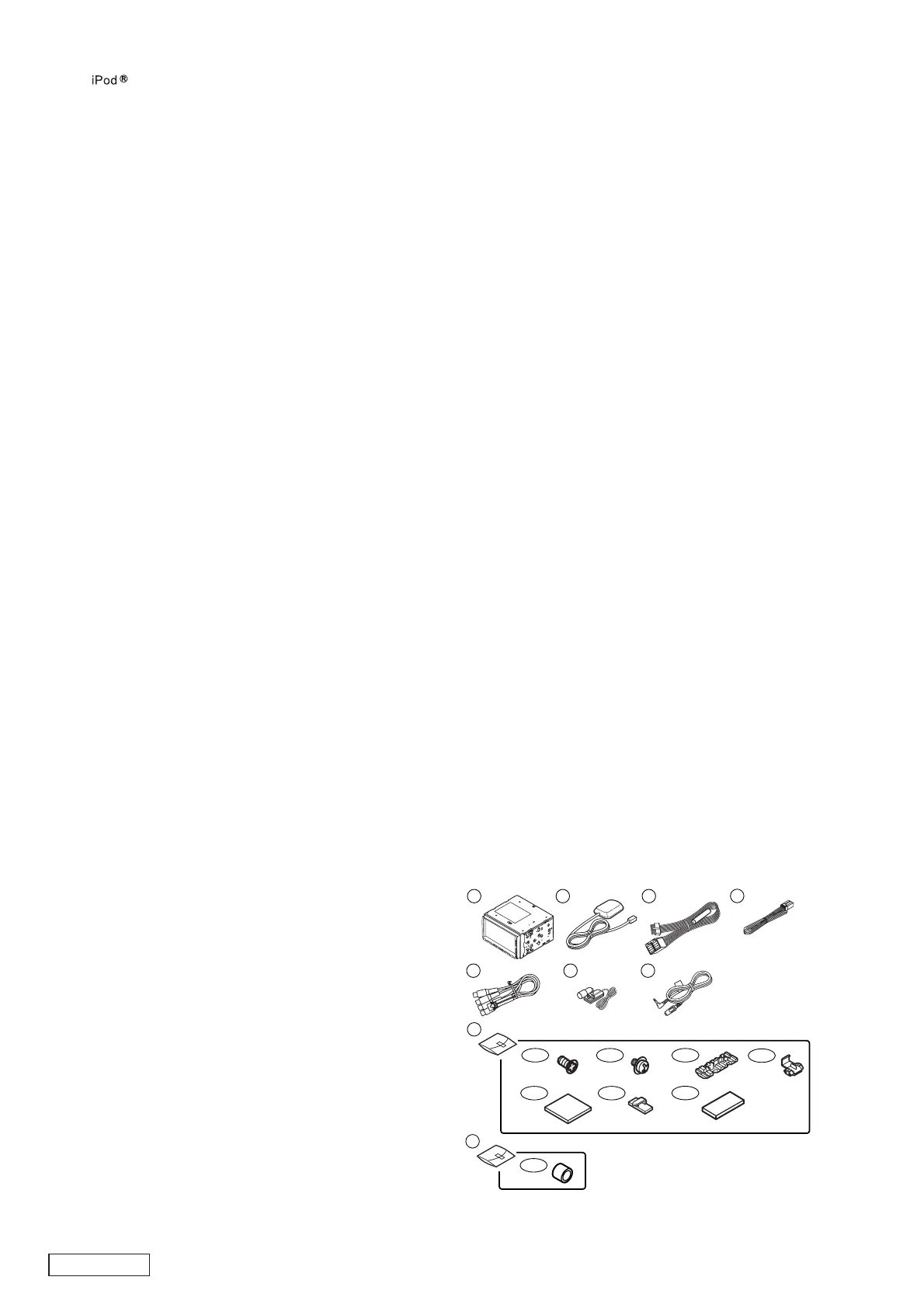

COMPONENTS
QY-5003E-B
1. Main unit ----------- 1
2. GPS antenna 096-0146-00 1
3. Power supply lead 854-6462-50 1
(10A Fuse 120-0100-00 1)
4. Vehicle signal lead 854-6463-50 1
5. RCA pin cord 855-5533-00 1
6. Microphone 081-0030-00 1
7. Microphone extension lead 855-0620-00 1
8. Parts bag ----------- 1
8-1. Flat head screw(M5x8) 714-5008-4B 8
8-2. Sems hexagonal screw(M5x8) 716-0496-51 8
8-3. Electro tap 060-0305-00 1
8-4. Electro tap(speed sensor) 060-0018-00 2
8-5. Double-sided tape
(ANT 28 x 28) 347-6369-00 1
8-6. Lead holder 321-1026-01 10
8-7. Double-sided tape
(MIC 26 x 15) 347-8400-00 1
9. Parts bag ----------- 1
9-1. Rubber cap(RCA) 345-3799-20 6
1 2 3
4
5 6
7
8
8-1 8-2 8-3
8-4
8-5 8-6
8-7
9
9-1
