MAX983HD
English
Owner’s manual
Specification
GPS aerial
Mode: Microstrip flat aerial
Dimension: 30.4 (W) u 11.7 (H) u 35.5 (D) mm
Impedance: 50 Ohm
Navigation System
GPS receiving frequency: 1575.42 MHz, C/A
Code
Sensibility: –130 dBm or better
Number of GPS channels: 15 channels
FM Tuner
Frequency Range: 87.50 MHz to 108.00 MHz
Usable Sensitivity: 9 dBf
50dB Quieting Sensitivity: 15 dBf
Alternate Channel Selectivity: 70 dB
Stereo Separation (1 kHz): 32 dB
Frequency Response (r3 dB): 30 Hz to 15 kHz
AM Tuner
Frequency Range:
MW: 531 kHz to 1602 kHz
LW: 153 kHz to 279 kHz
Usable Sensitivity: 28 dBPV
DVD Player
System: Digital Versatile Disc System with CDDA
capable
Usable discs: DVD video disc, Compact disc
Frequency Response: 20 Hz to 20 kHz (CD)
(+1 dB/–2 dB)
Signal to Noise Ratio: 80 dB (1 kHz)
Dynamic Range: 80 dB (1 kHz)
Distortion: 0.05%
Audio Amplifier
Maximum power output: 200 W (50 W u 4)
Output Power: 4 u 31 W
(DIN 45324, +B = 14.4 V)
Speaker impedance: 4 : (4 to 8 : allowable)
Input
Audio input:
130 r60mVrms
(input impedance 10 k: or more)
Video input: 1.0 ±0.2 Vp-p
(input impedance 75 :)
Video Output
Video output: 1.0 r0.2 Vp-p
(output impedance 75 :)
LCD Monitor
Screen Size: 7-inch wide type
156.2 mm Width u 82.3 mm Height
Display method: Transmission type TN liquid
crystal display
Drive method: TFT (thin-film transistor) active
matrix driving
Pixels: 336,960 (480 u 3 (RGB) u 234)
General
Power source voltage: 14.4 V DC
(10.8 to 15.6 V allowable)
Earth: Negative
Current consumption: 4.3 A (1 W)
Auto Antenna Rated Current: 500 mA less
Dimensions of the Main Unit: 178 mm Width u
100 mm Height u 162 mm Depth
Weight of the Main Unit: 3.0 kg
Note:
• Specifications comply with JEITA Standards.
• Specifications and design are subject to change
without notice for further improvement.

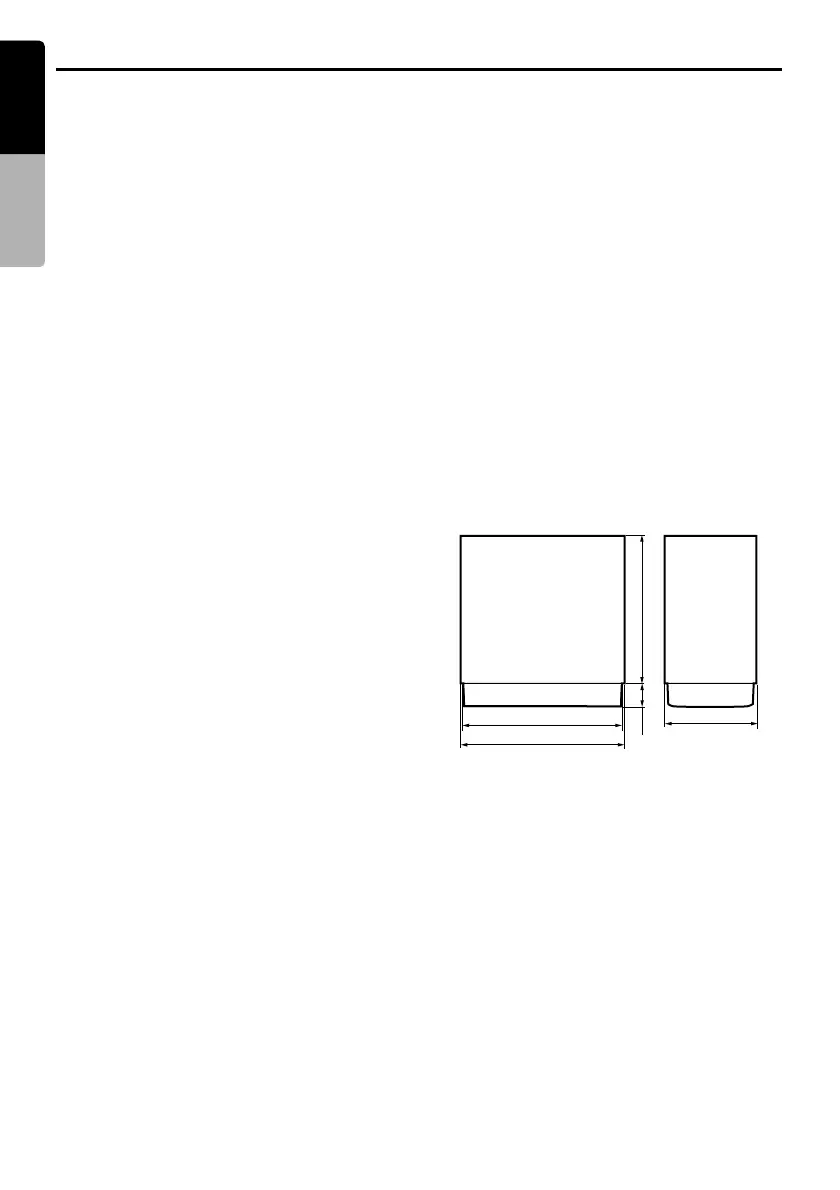

171 mm
178 mm
25mm
162mm
100 mm
