- 15 -
PP-2449V-B
PP-2449V-C

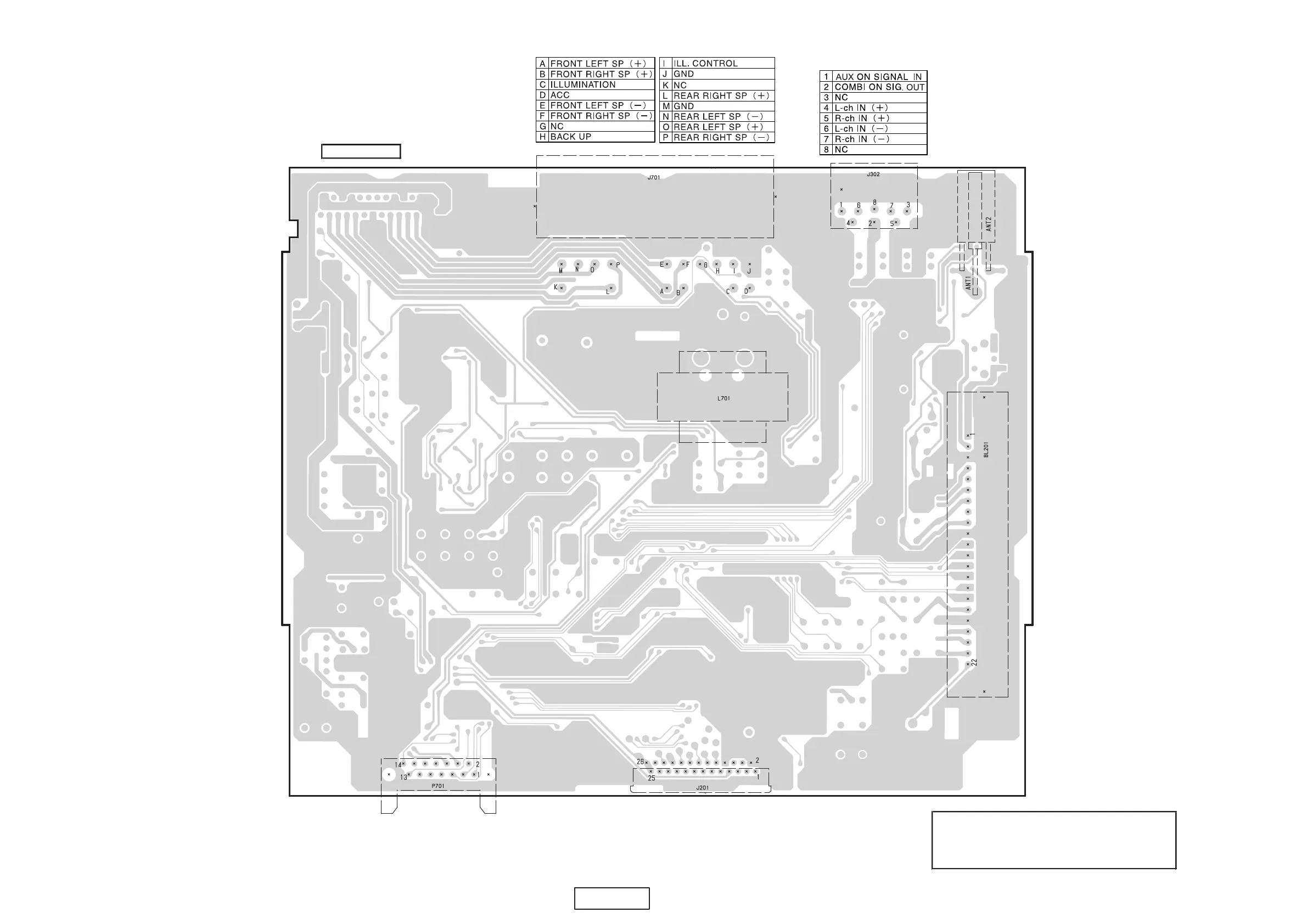

MAIN PWB (B1) section
Caution:
COMPONENTSIDE:Partsonthecomponentsideseen
fromthecomponentsideareindicated.
SOLDERSIDE:Partsonthesoldersideseen
fromthesoldersideareindicated.
