PP-2449V-B
PP-2449V-C
Switch PWB(B2) section

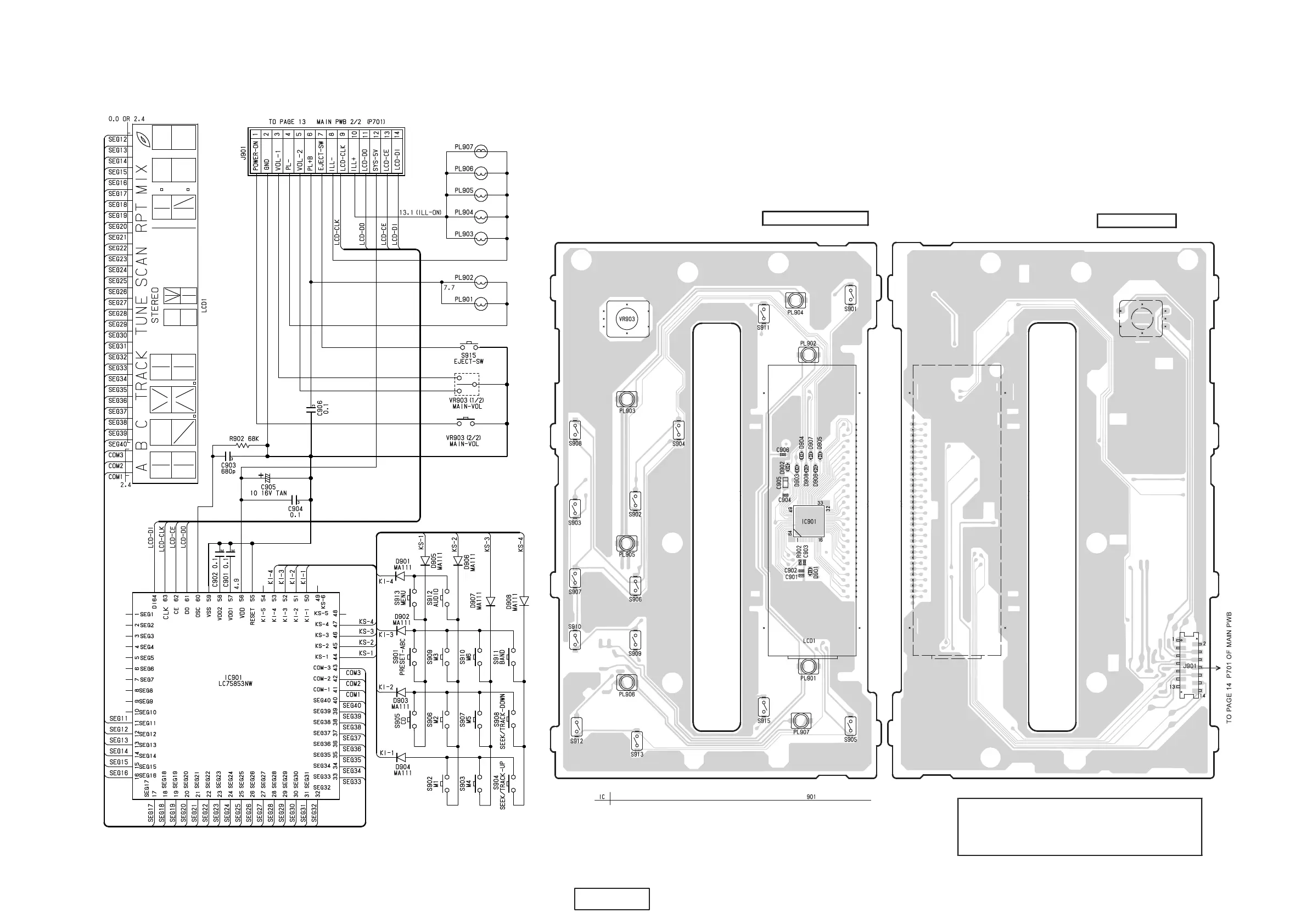

CIRCUIT DIAGRAM
Switch PWB(B2) section
PRINTED WIRING BOARD
COMPONENTSIDE
SOLDERSIDE
Caution:
COMPONENTSIDE:Partsonthecomponentsideseen
fromthecomponentsideareindicated.
SOLDERSIDE:Partsonthesoldersideseen
fromthesoldersideareindicated.
