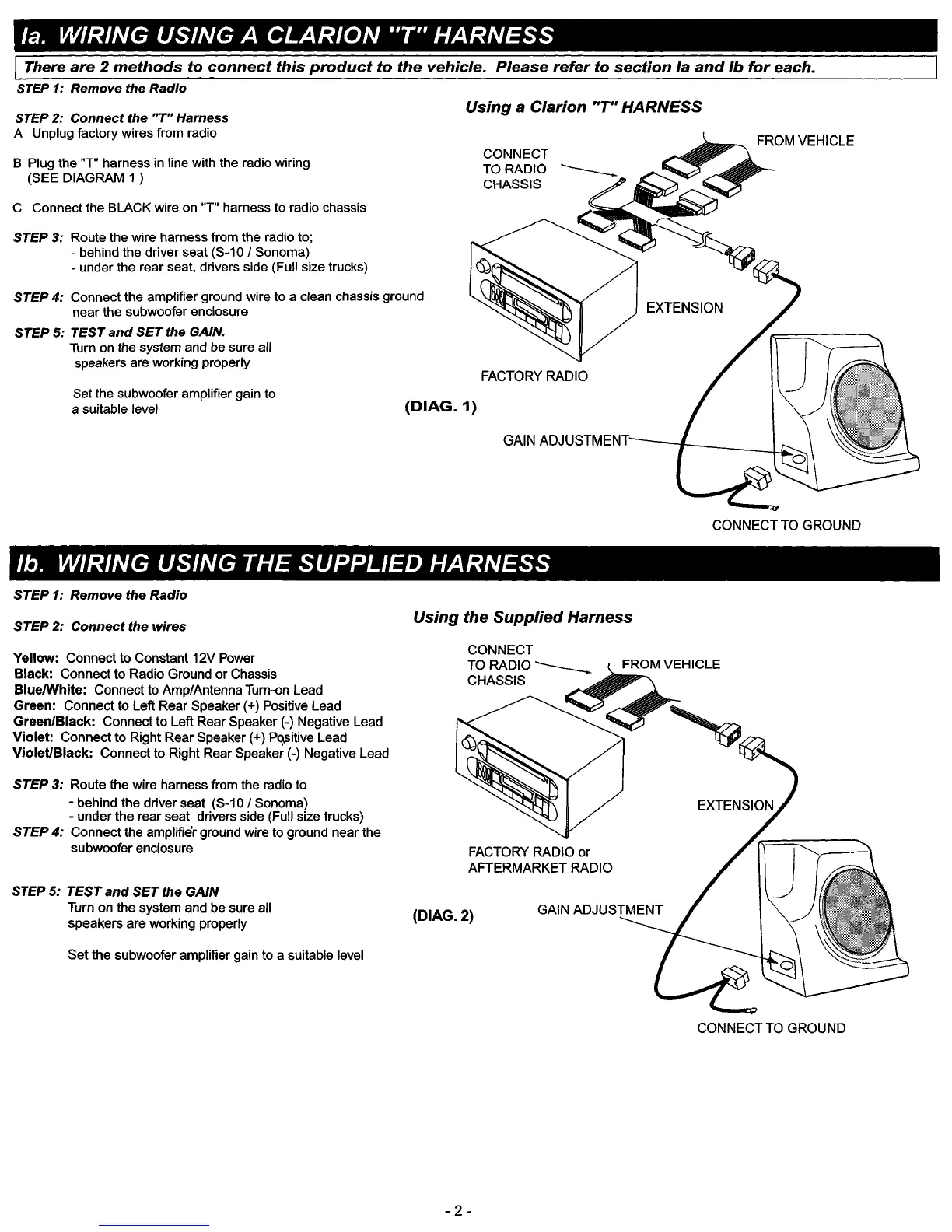

la.
WIRING
USING
A
CLARION
"T"
HARNESS
IThere
are
2
methods
to
connect
this
product
to
the
vehicle.
Please
refer
to
section
la
and
Ib
for
each.
STEP
1:
Remove the
Radio
STEP
4:
Connect
the
amplifier ground wire
to
a clean chassis ground
near
the
subwoofer enclosure
STEP 5: TEST
and
SET
the
GAIN.
Turn on the system and be sure all
speakers are working properly
STEP 2:
Connect
the
"T"
Harness
A Unplug factory wires from radio
B Plug
the
"T"
harness
in line with
the
radio wiring
(SEE
DIAGRAM
1 )
C
Connect
the
BLACK wire on
"T"
harness to radio chassis
STEP
3:
Route the wire
harness
from
the
radio to;
- behind the
driver
seat (S-10 /
Sonoma)
- under
the
rear
seat. drivers side (Full size trucks)
Set the subwoofer amplifier gain
to
a suitable level
Using
a
Clarion
"T"
HARNESS
CONNECT
TO
RADIO
CHASSIS
EXTENSION
FACTORY
RADIO
(DIAG.1)
GAIN
ADJUSTMENT
-,f-----_ll:-
.......
CONNECT
TO
GROUND
lb. WIRING USING THE SUPPLIED HARNESS
STEP 1: Remove
the
Radio
STEP 2:
Connect
the
wires
Yellow:
Connect
to
Constant 12V Power
Black:
Connect
to
Radio
Ground
or
Chassis
BluelWhite:
Connect
to
Amp/Antenna Turn-on Lead
Green:
Connect
to
Left
Rear
Speaker (+) Positive Lead
Green/Black:
Connect
to
Left Rear Speaker (-) Negative Lead
Violet:
Connect
to
Right
Rear
Speaker (+) Pqsitive Lead
Violet/Black:
Connect
to
Right Rear Speaker (-) Negative Lead
STEP
3:
Route
the
wire harness from the radio to
- behind
the
driver seat (S-10 / Sonoma)
-
under
the
rear seat drivers side (Full size trucks)
STEP
4:
Connect
the amplifier ground wire to ground
near
the
subwoofer enclosure
STEP 5: TEST
and
SET
the GA/N
Turn on
the
system and
be
sure all
speakers
are
working properly
Set
the
subwoofer amplifier gain
to
a suitable level
Using
the
Supplied
Harness
FACTORY RADIO
or
AFTERMARKET
RADIO
(DIAG.2)
-
2-
CONNECT
TO
GROUND
