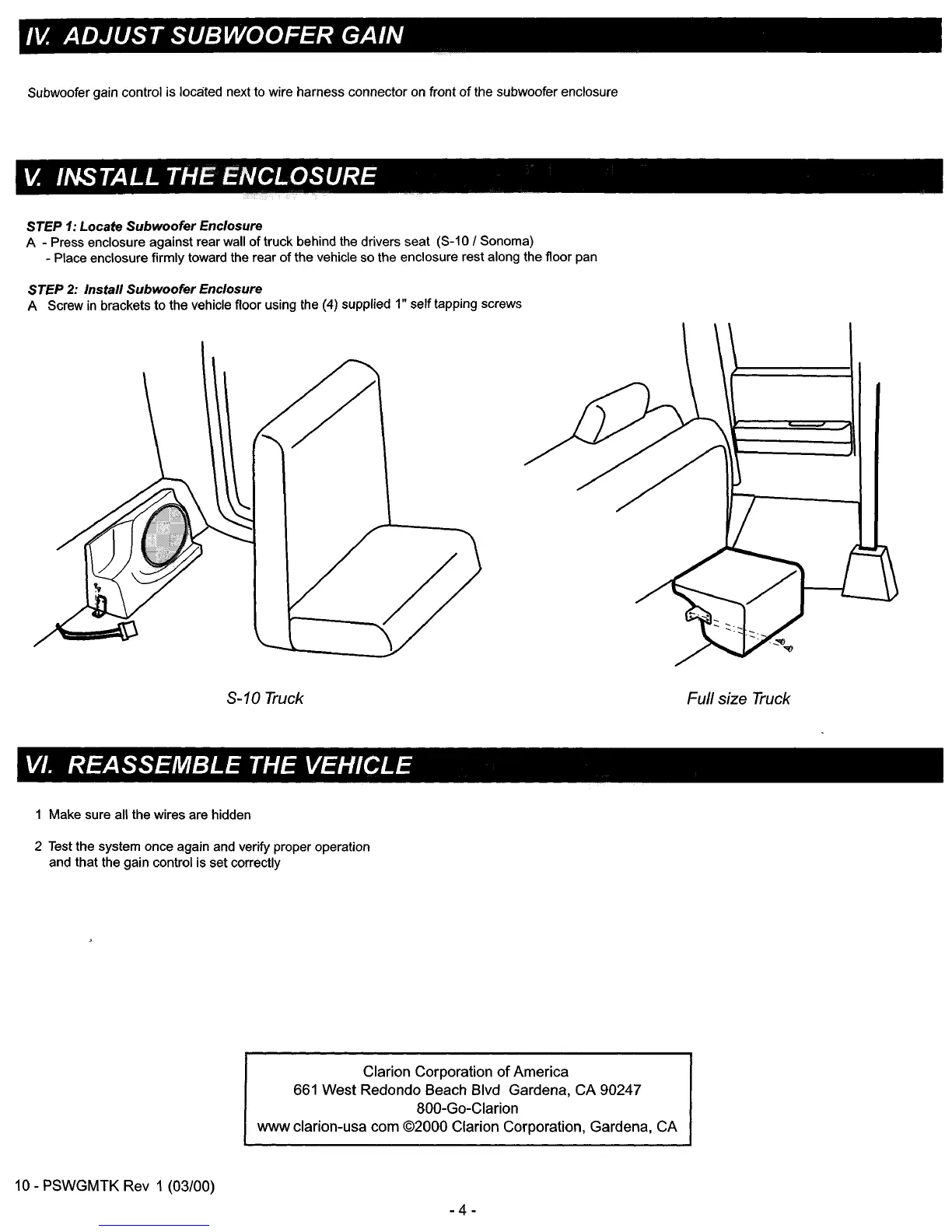

IV.
ADJUST
SUBWOOFER GAIN
Subwoofer gain control is located next to wire harness connector on front
of
the subwoofer enclosure
\I.
INSTALL THE ENCLOSURE
STEP
1:
Locate Subwoofer Enclosure
A - Press enclosure against rear wall of truck behind the drivers seat (S-10
I Sonoma)
- Place enclosure firmly toward the rear
of
the vehicle so the enclosure rest along the floor pan
STEP
2:
Install SubwooferEnclosure
A Screw
in
brackets to the vehicle floor using the (4) supplied 1" self tapping screws
S-10
Truck
VI.
REASSEMBLE THE VEHICLE
1 Make sure all the wires are hidden
2 Test the system once again and verify proper operation
and
that
the gain control is set correctly
Full size
Truck
Clarion Corporation
of
America
661
West Redondo Beach Blvd Gardena, CA 90247
800-Go-Clarion
www
clarion-usa com ©2000 Clarion Corporation, Gardena, CA
10
- PSWGMTK Rev 1 (03/00)
- 4 -
