Clarion PU-2325A User Manual

- 12 -
PU-2294A/B
PU-2325A
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
Sensor PWB section(CD mechanism)(B5)
Q101 060-0252-01 PT4850F
Q102 060-0252-01 PT4850F
Q103 060-0252-01 PT4850F
Limit switch PWB section(CD mechanism)(B6)
REF No. PART No. DESCRIPTION
S1 013-7100-00 LIMIT
Chucking switch PWB section(CD mechanism)(B7)
REF No. PART No. DESCRIPTION
S2 013-3879-01 CHUCKING


No. Description

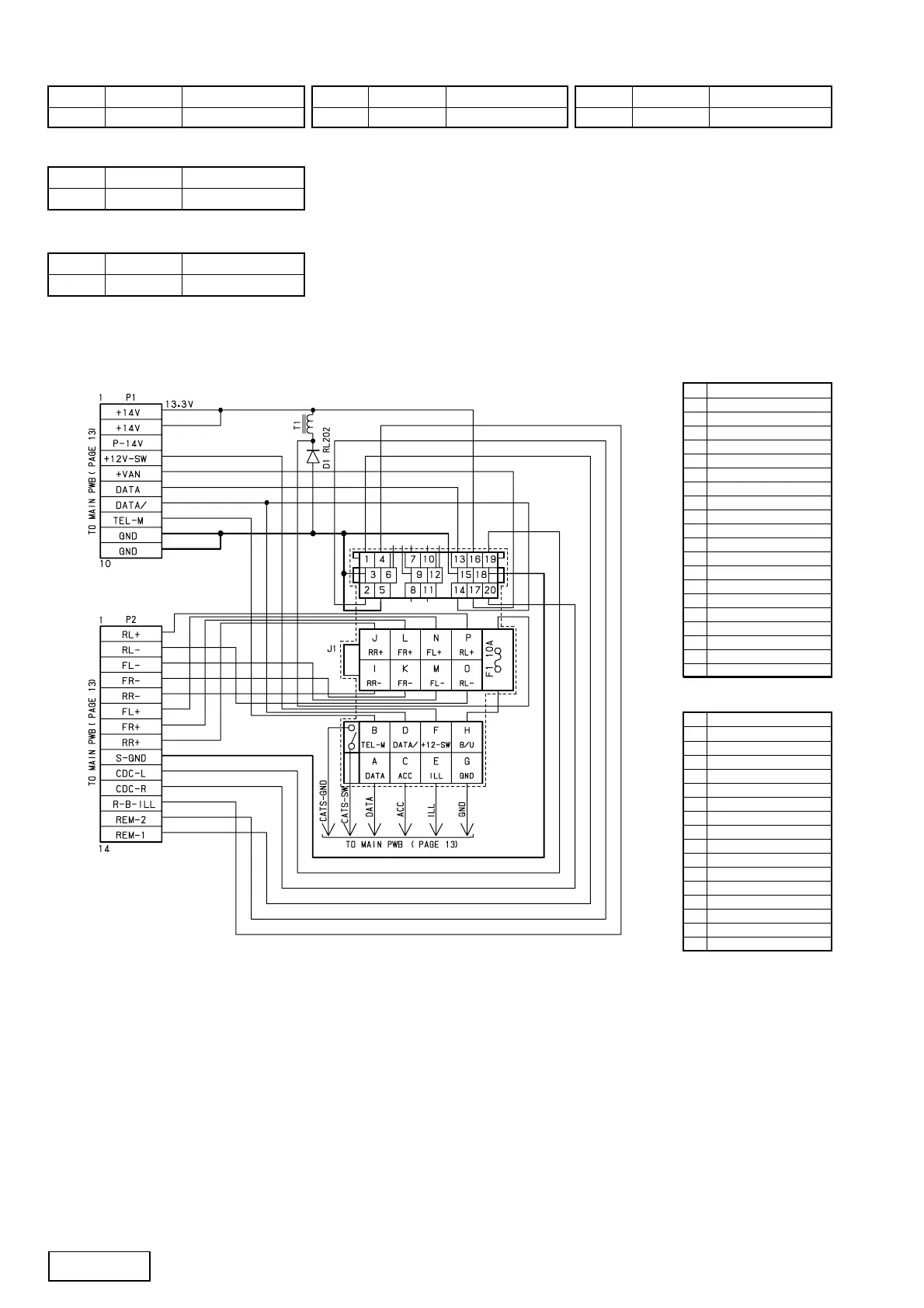

■CIRCUIT DIAGRAM
ISO PWB section(B3)
1 REM-1
2 REM-2
3 REM-GND
4 REM-B-ILL +
5 REM-B-ILL GND
6NC
7NC
8NC
9NC
10 NC
11 NC
12 NC
13 VAN-DATA
14 VAN-DATA/
15 CD-A/C GND
16 CD-A/C BACK-UP
17 +VAN
18 CD-A/C SIGNAL-GND
19 CD-A/C L-IN
20 CD-A/C R-IN
A DATA
B TEL-M-IN
C ACC
D DATA/
E ILL
F +12-SW
GGD
H BACK-UP
I REAR RIGHT SP−
J REAR RIGHT SP＋
K FRONT RIGHT SP−
L FRONT RIGHT SP＋
M FRONT LEFT SP−
N FRONT LEFT SP＋
O REAR LEFT SP−
P REAR LEFT SP＋
No. Description
