4-10 GEX/GTX Operator Compartment

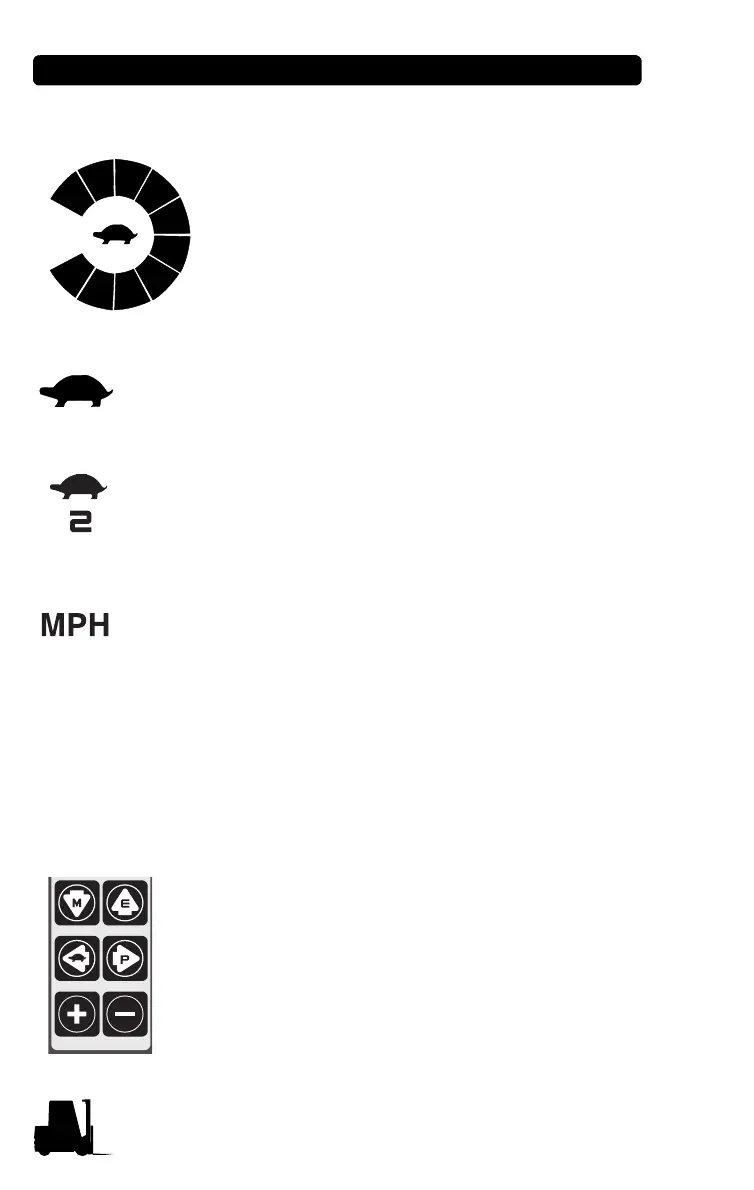

Speed limit rate indicator (ECX)
This indicating lamp shows the traveling speed
limit rate. One segment will
turn off when the
speed limit rate is reduced by 10%.
Displays the maximum allowable travel speed.
Wh
en all segments are lit, no restriction is
present. If the speed is limited, the appropriate
number of segments will be lit.
Speed limit function indicator (ECX): This indicating
lamp shows traveling speed is limited. It w
ill turn on when
the traveling speed limit function of fork lift truck is
working.
Slow-speed indicator (GEX/GTX): The traveling speed
of truck is limited to set speed.
The upper mark is slow speed operating icon, and the
f
igure shows the limited max. speed. In upper example,
the limited maximum speed is 2 MPH.
Traveling speed indicator (ECX): This icon is shown
when the truck is moving.
Seat switch (ECX): If the op
erator leaves the seat without setting
the park brake regardless of key switch position (ON or OFF) for
more than two (2) seconds, the ICON shall flash during the complete
procedure. At first the internal beeper shall beep 5 times and after
that the horn shall beep 5 times. Setting the park brake will reset the
alarm.
Mode Selection Button (GEX/GTX)
6 mode selection buttons are located on right side of
LCD
.
Each button has specific function, and some have
multiple functions.
