Clarke 07170A - Motor Housing Assembly

Model CE7 Pro, SE7 Pro, CE7 Pro+ & SE7 Pro+

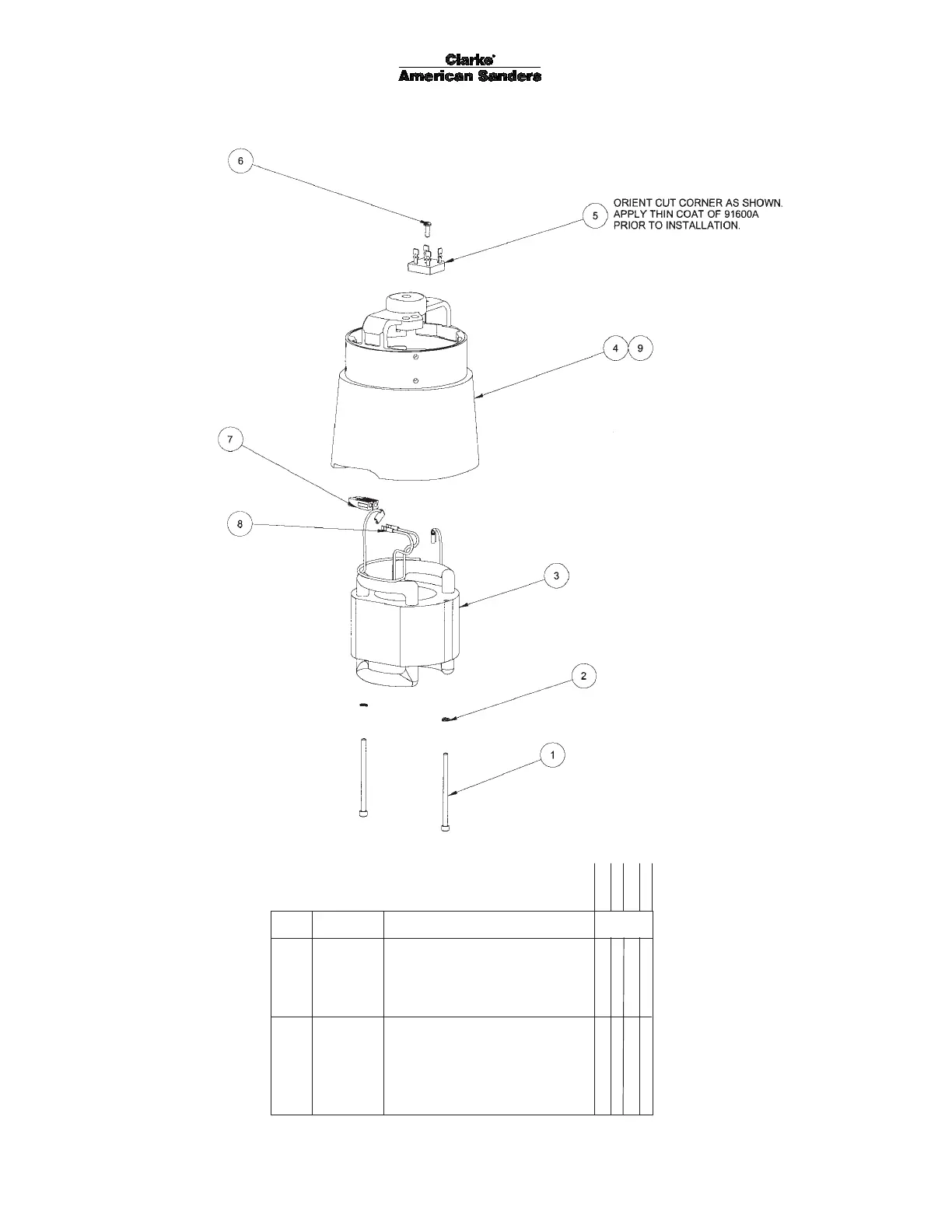

Motor Housing Assembly Drawing and Parts List 1/10
Ref. Part No. Description Qty.
1 86117A Screw, 10-24X3 SHMS 2 2 2 2
2 980650 Washer, #10 Lock 2 2 2 2
3 40718A Field 115V 1 1 1 1
4 29911A Motor Housing, Polished 1 1
5 912287 Rectifier, Full Wave 50A 600V 1 1
6 962027 Screw, 8-32X1/2 PH 1 1
7 43401A Housing, Connector 2 2 2 2
8 41809A Contact, Housing Connector 2 2 2 2
9 29914A Motor Housing, Charcoal Grey 1 1
07170A 07176A 07175A 07180A
