rotation. As the wheel wears down with use, it will be necessary to re-adjust
the brackets accordingly.

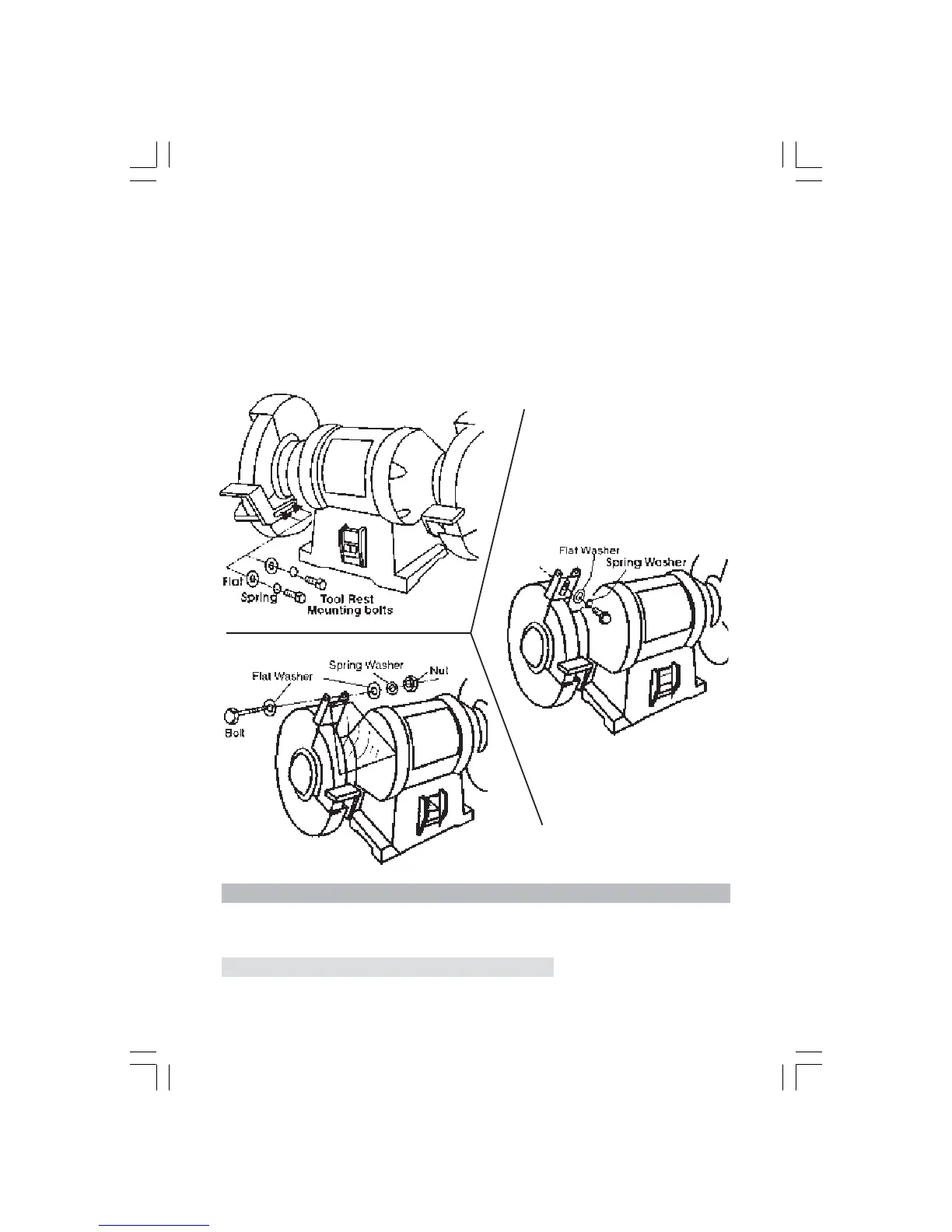

3. Assemble the Eye Shields on to the Spark Arrester Brackets using the nuts, bolts
and washers supplied, in the manner shown in fig. 3. The angle of the Eye
Shields are adjustable to suit the operator.
4. Your Clarke Bench Grinder should be securely bolted to a workbench before
operation, using the pre-drilled holes in the base.
2 x 5/16" (8mm) bolts are recommended. (Not supplied)
6
MAINTENANCE
Before carrying out any service or adjustments, ensure the grinder is switched OFF,
and disconnected from the electrical supply.
A. SPARK ARRESTER & EYE SHIELD ADJUSTMENT
Due to wear on the grinding wheel, it is necessary to adjust the Spark Arrester
Fig. 1
Fig. 3
Fig. 2
