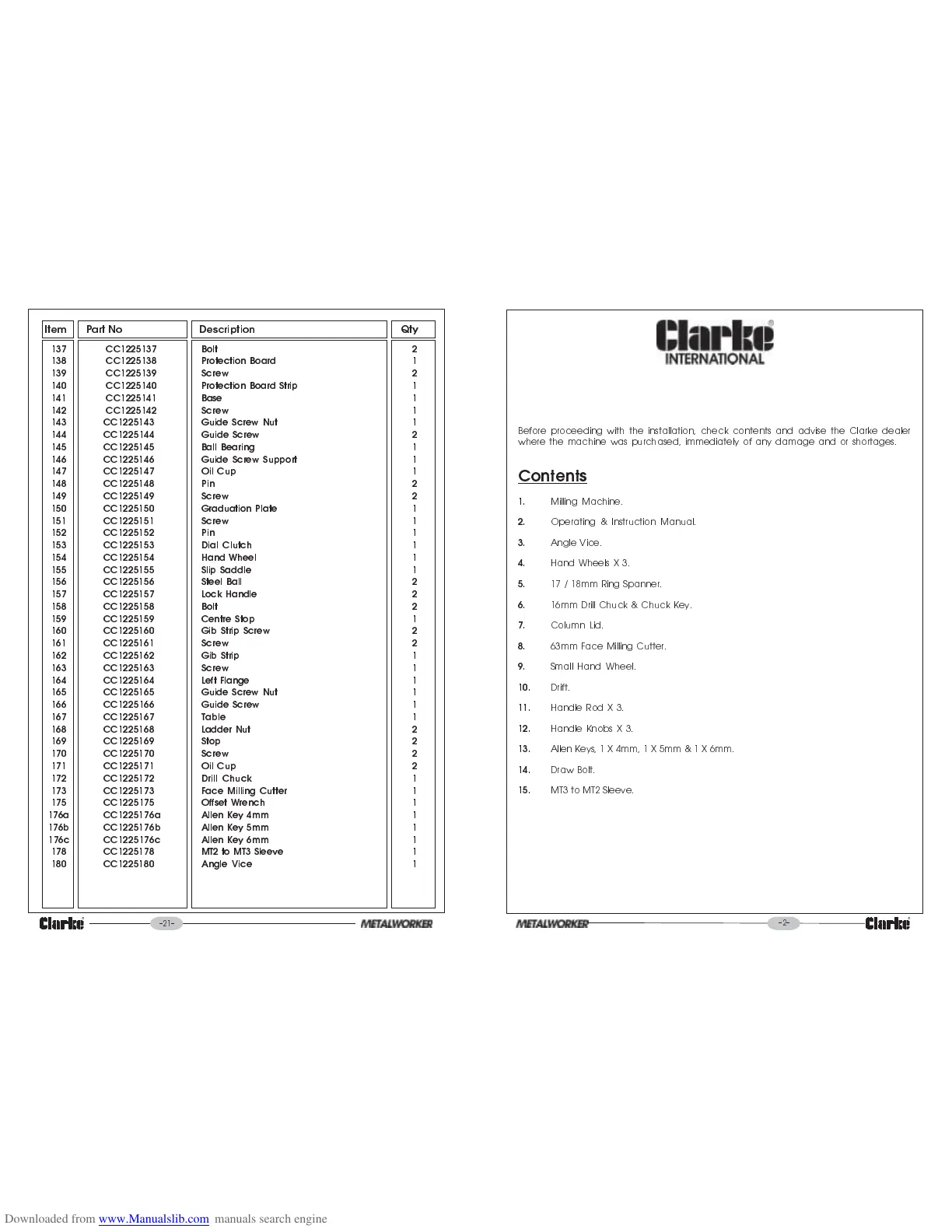

Before proceeding with the installation, check contents and advise the Clarke dealer
where the machine was purchased, immediately of any damage and or shortages.
Contents
1.
Milling Machine.
2.
Operating & Instruction Manual.
3.
Angle Vice.
4.
Hand Wheels X 3.
5.
17 / 18mm Ring Spanner.
6.
16mm Drill Chuck & Chuck Key.
7.
Column Lid.
8.
63mm Face Milling Cutter.
9.
Small Hand Wheel.
10.
Drift.
11.
Handle Rod X 3.
12.
Handle Knobs X 3.
13.
Allen Keys, 1 X 4mm, 1 X 5mm & 1 X 6mm.
14.
Draw Bolt.
15.
MT3 to MT2 Sleeve.
-
21
-
Item Part No Description Qty
137 CC1225137 Bolt 2
138 CC1225138 Protection Board 1
139 CC1225139 Screw 2
140 CC1225140 Protection Board Strip 1
141 CC1225141 Base 1
142 CC1225142 Screw 1
143 CC1225143 Guide Screw Nut 1
144 CC1225144 Guide Screw 2
145 CC1225145 Ball Bearing 1
146 CC1225146 Guide Screw Support 1
147 CC1225147 Oil Cup 1
148 CC1225148 Pin 2
149 CC1225149 Screw 2
150 CC1225150 Graduation Plate 1
151 CC1225151 Screw 1
152 CC1225152 Pin 1
153 CC1225153 Dial Clutch 1
154 CC1225154 Hand Wheel 1
155 CC1225155 Slip Saddle 1
156 CC1225156 Steel Ball 2
157 CC1225157 Lock Handle 2
158 CC1225158 Bolt 2
159 CC1225159 Centre Stop 1
160 CC1225160 Gib Strip Screw 2
161 CC1225161 Screw 2
162 CC1225162 Gib Strip 1
163 CC1225163 Screw 1
164 CC1225164 Left Flange 1
165 CC1225165 Guide Screw Nut 1
166 CC1225166 Guide Screw 1
167 CC1225167 Table 1
168 CC1225168 Ladder Nut 2
169 CC1225169 Stop 2
170 CC1225170 Screw 2
171 CC1225171 Oil Cup 2
172 CC1225172 Drill Chuck 1
173 CC1225173 Face Milling Cutter 1
175 CC1225175 Offset Wrench 1
176a CC1225176a Allen Key 4mm 1
176b CC1225176b Allen Key 5mm 1
176c CC1225176c Allen Key 6mm 1
178 CC1225178 MT2 to MT3 Sleeve 1
180 CC1225180 Angle Vice 1
